Heated Seat Module Connector End View - Front Passenger C1

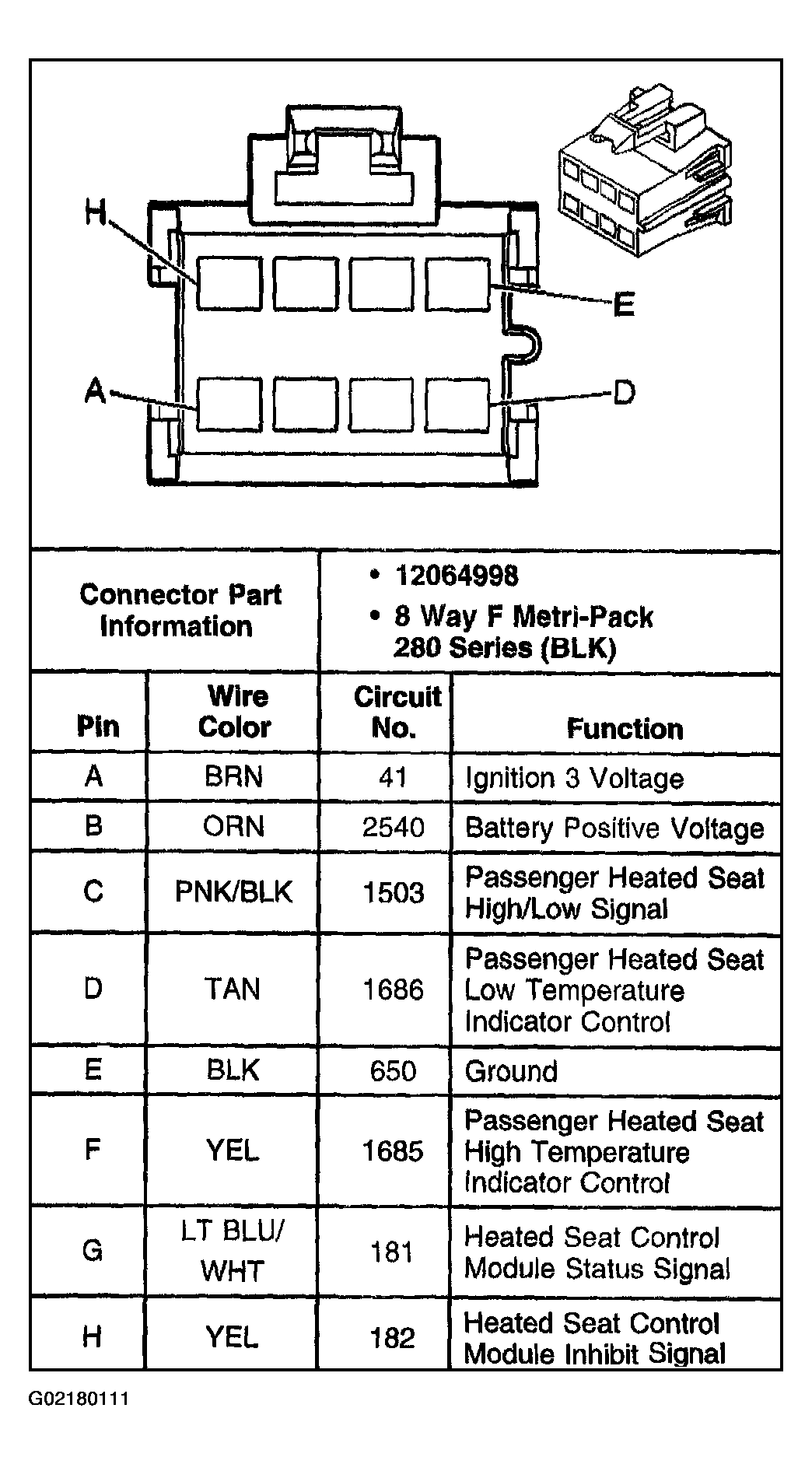

Fig 1: Heated Seat Module - Front Passenger C1
G02180111Courtesy of GENERAL MOTORS CORP.
