Heated Seat Module Connector End View - RR C1

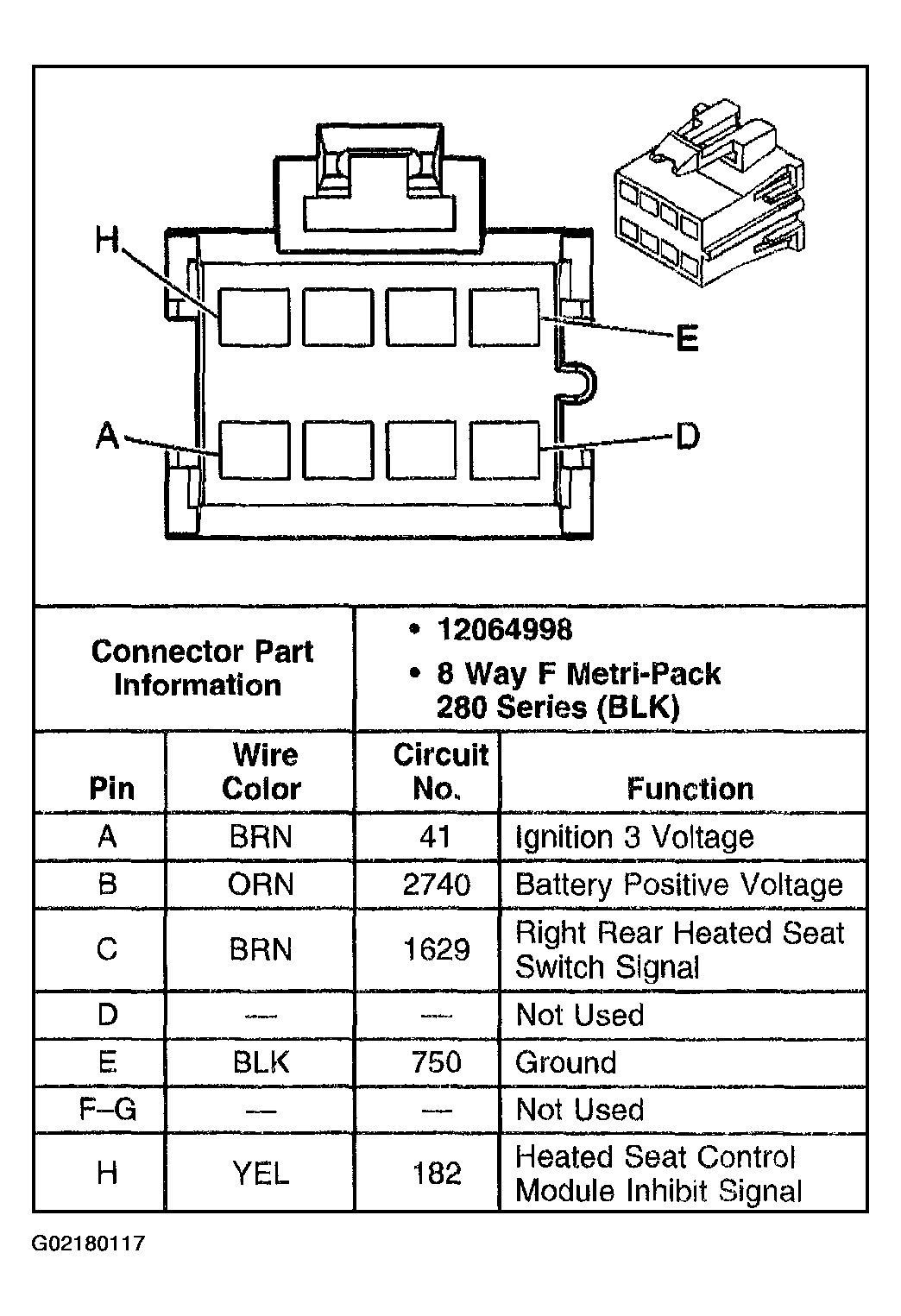

Fig 1: Heated Seat Module - RR C1
G02180117Courtesy of GENERAL MOTORS CORP.
