Heated Seat Module Connector End View - RR C2

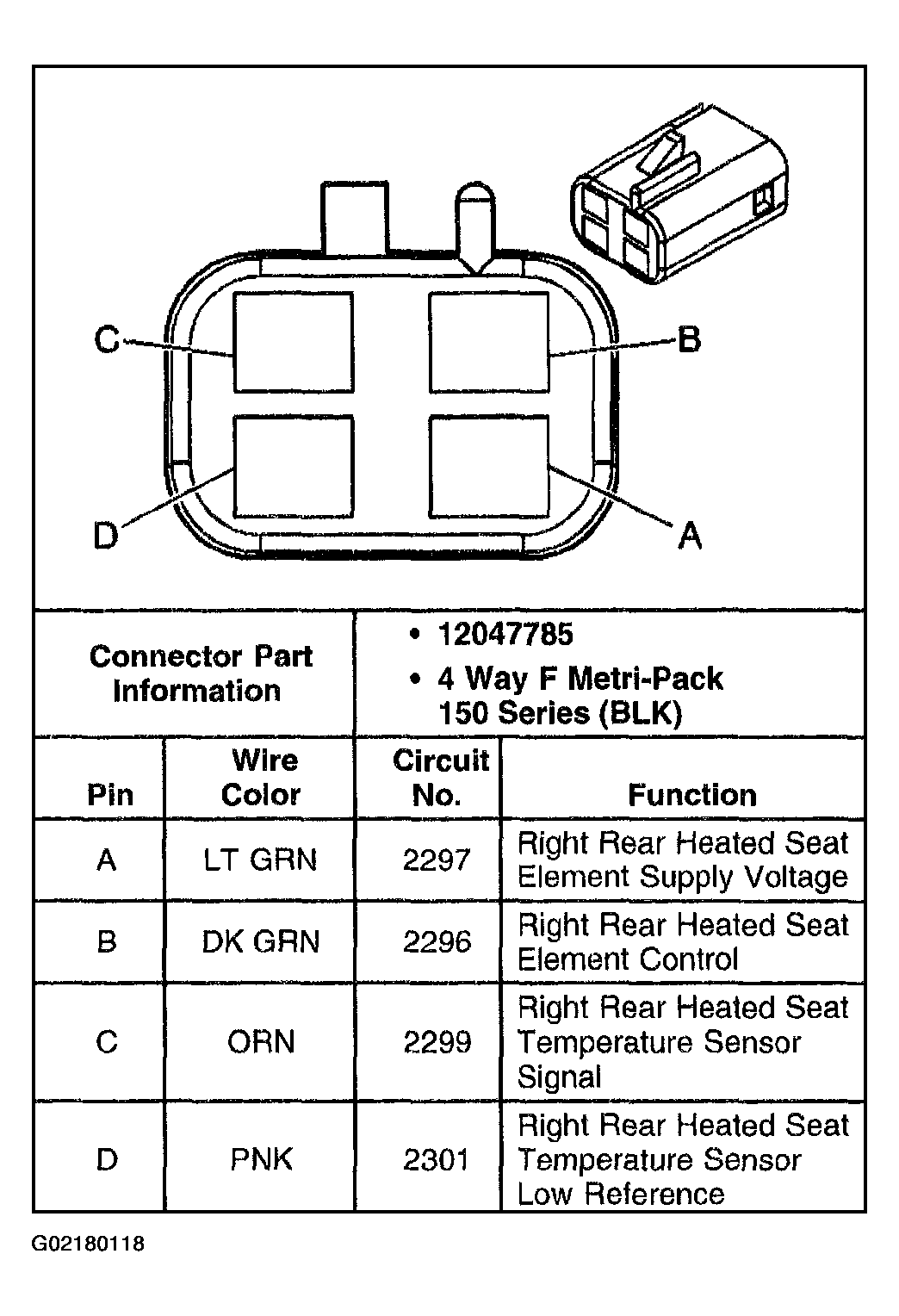

Fig 1: Heated Seat Module - RR C2
G02180118Courtesy of GENERAL MOTORS CORP.
