Heated Seat Module Connector End View - RR C3

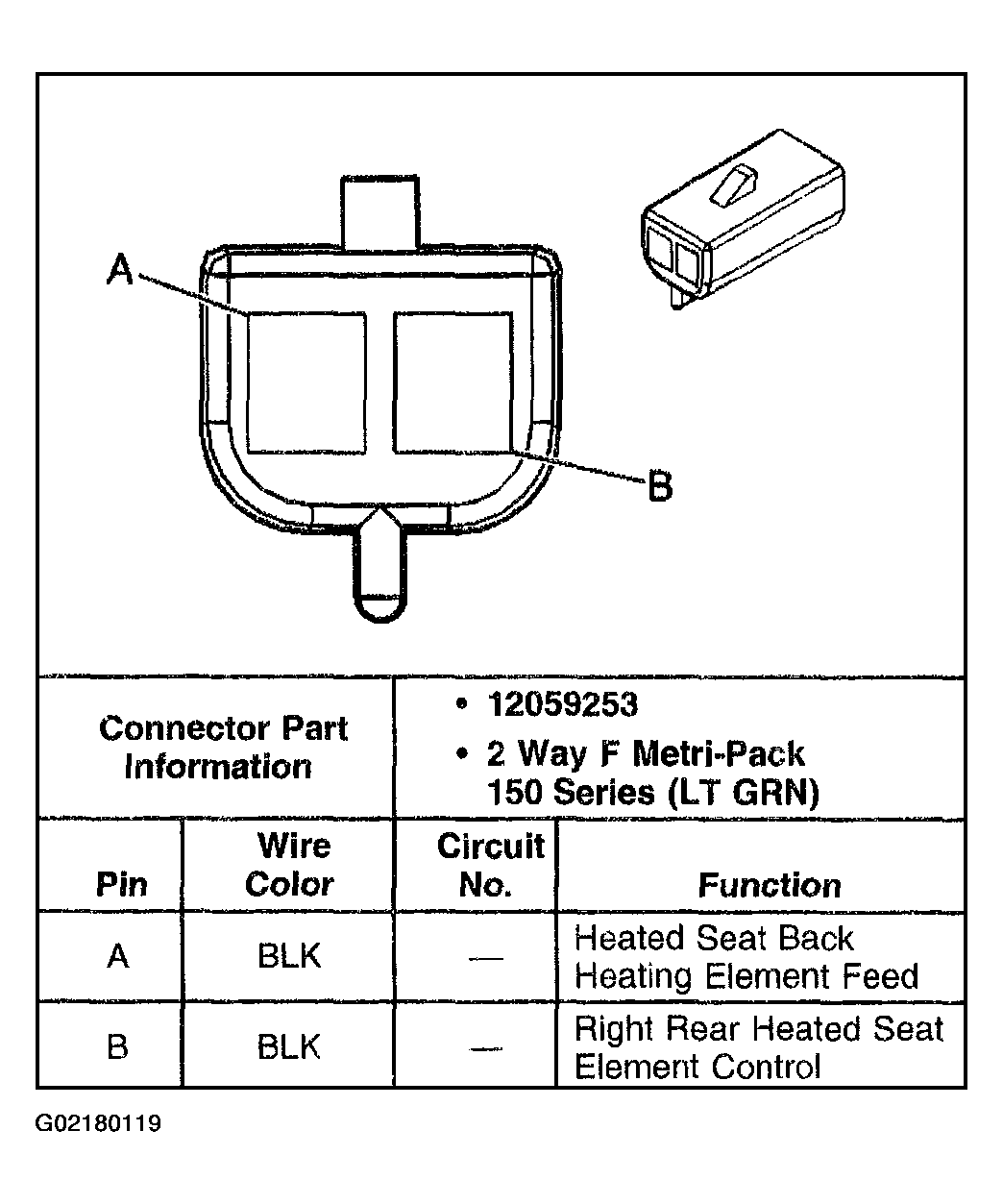

Fig 1: Heated Seat Module - RR C3
G02180119Courtesy of GENERAL MOTORS CORP.
