I/P Compartment Lamp Connector End View
I/P Compartment Lamp Connector End View

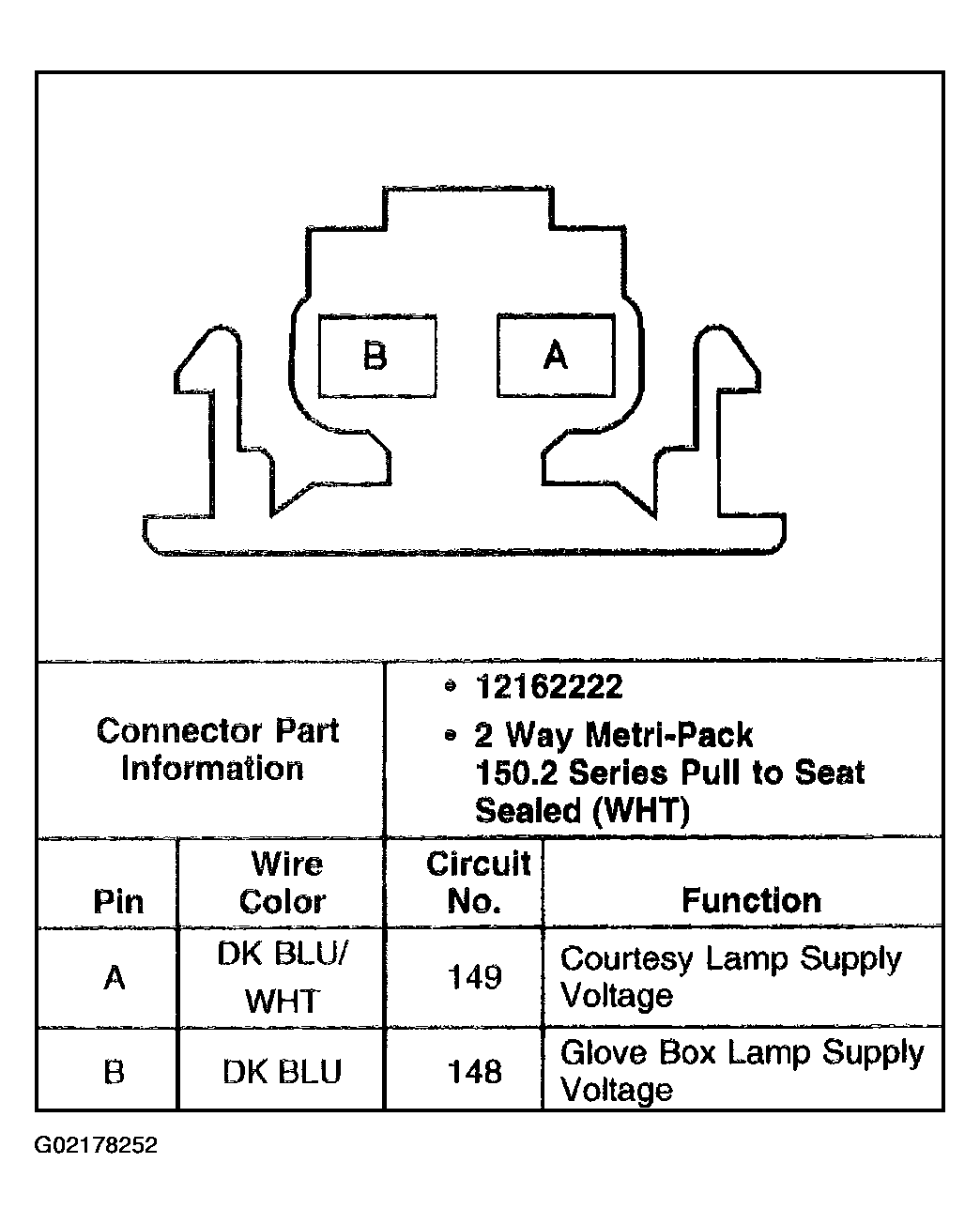

Fig 1: I/P Compartment Lamp
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
