Left Rear Door Module (LRDM) Connector End View C1

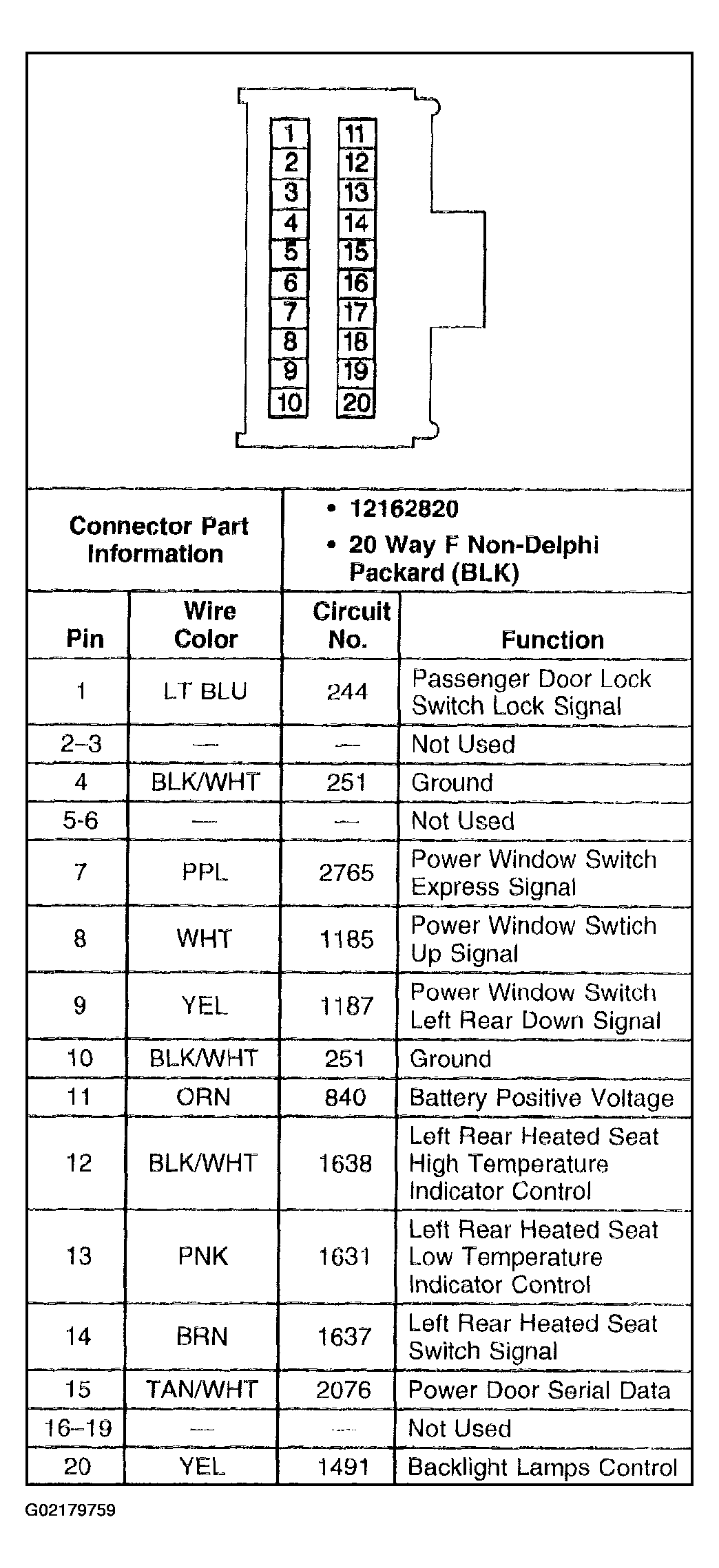

Fig 1: Left Rear Door Module (LRDM) C1
G02179759Courtesy of GENERAL MOTORS CORP.
