Left Rear Door Module (LRDM) Connector End View C5

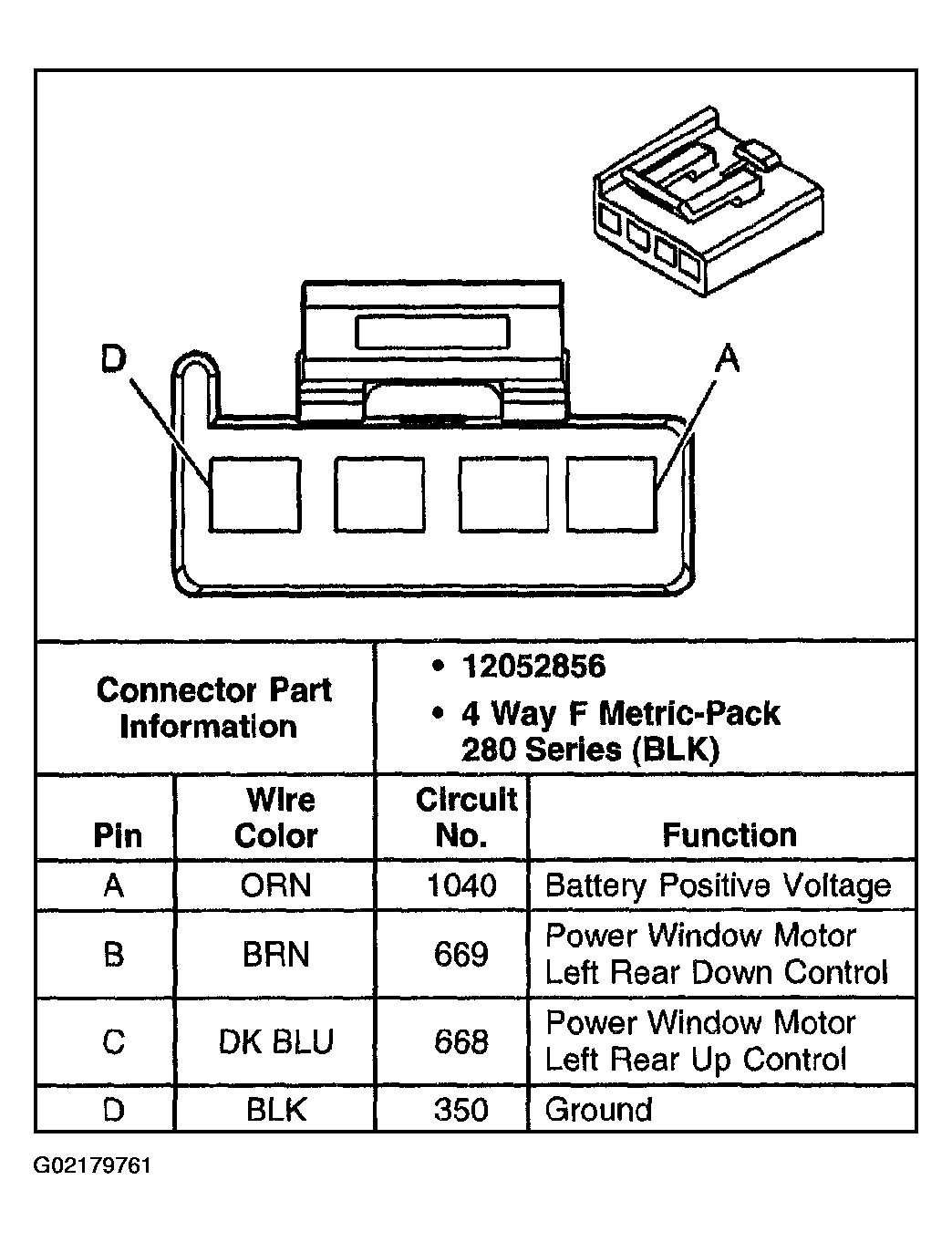

Fig 1: Left Rear Door Module (LRDM) C5
G02179761Courtesy of GENERAL MOTORS CORP.
