Reading Lamp Switch Connector End View - Left
Reading Lamp Switch Connector End View - Left

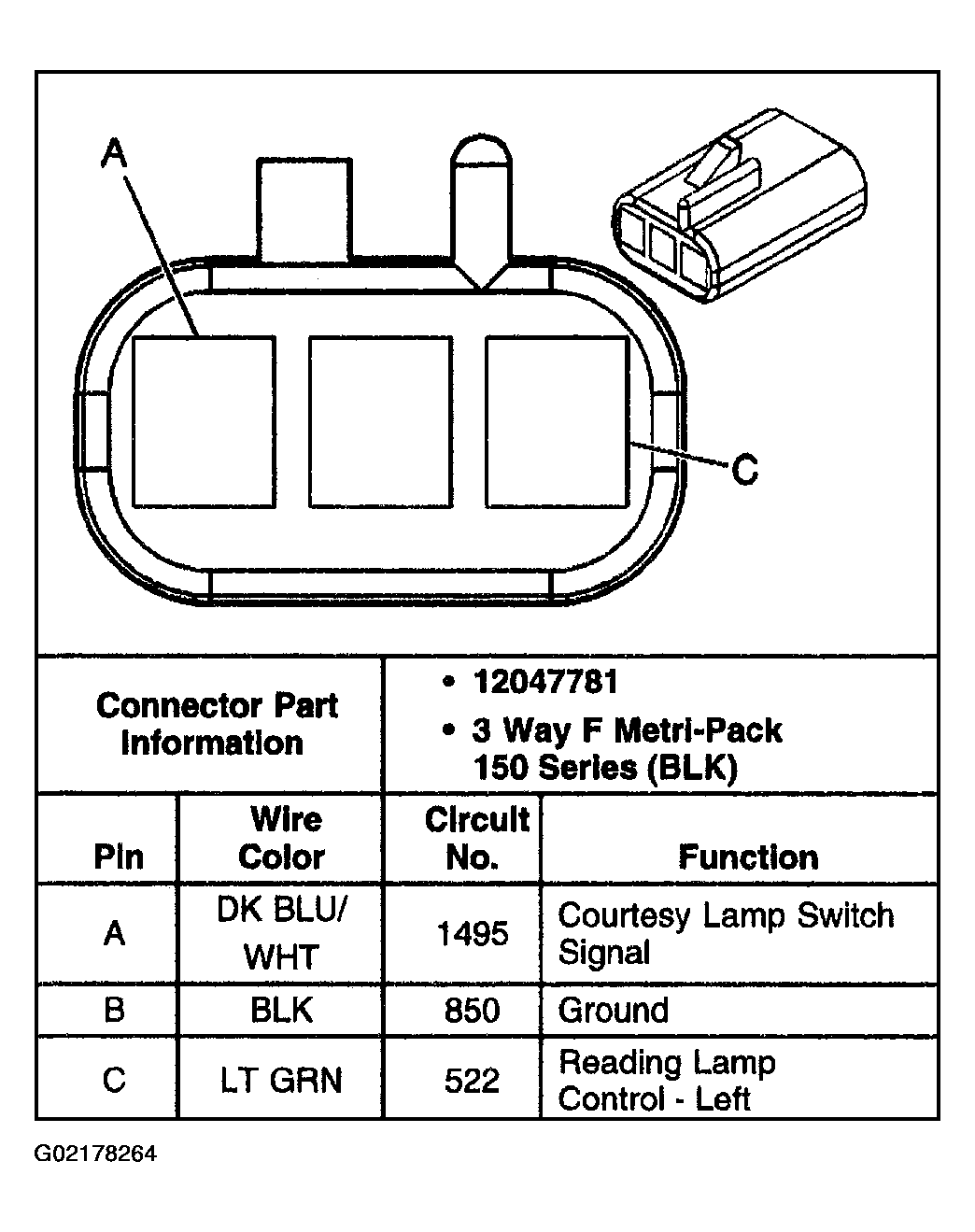

Fig 1: Reading Lamp Switch - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
