Seat Front Vertical Position Sensor Connector End View - Driver

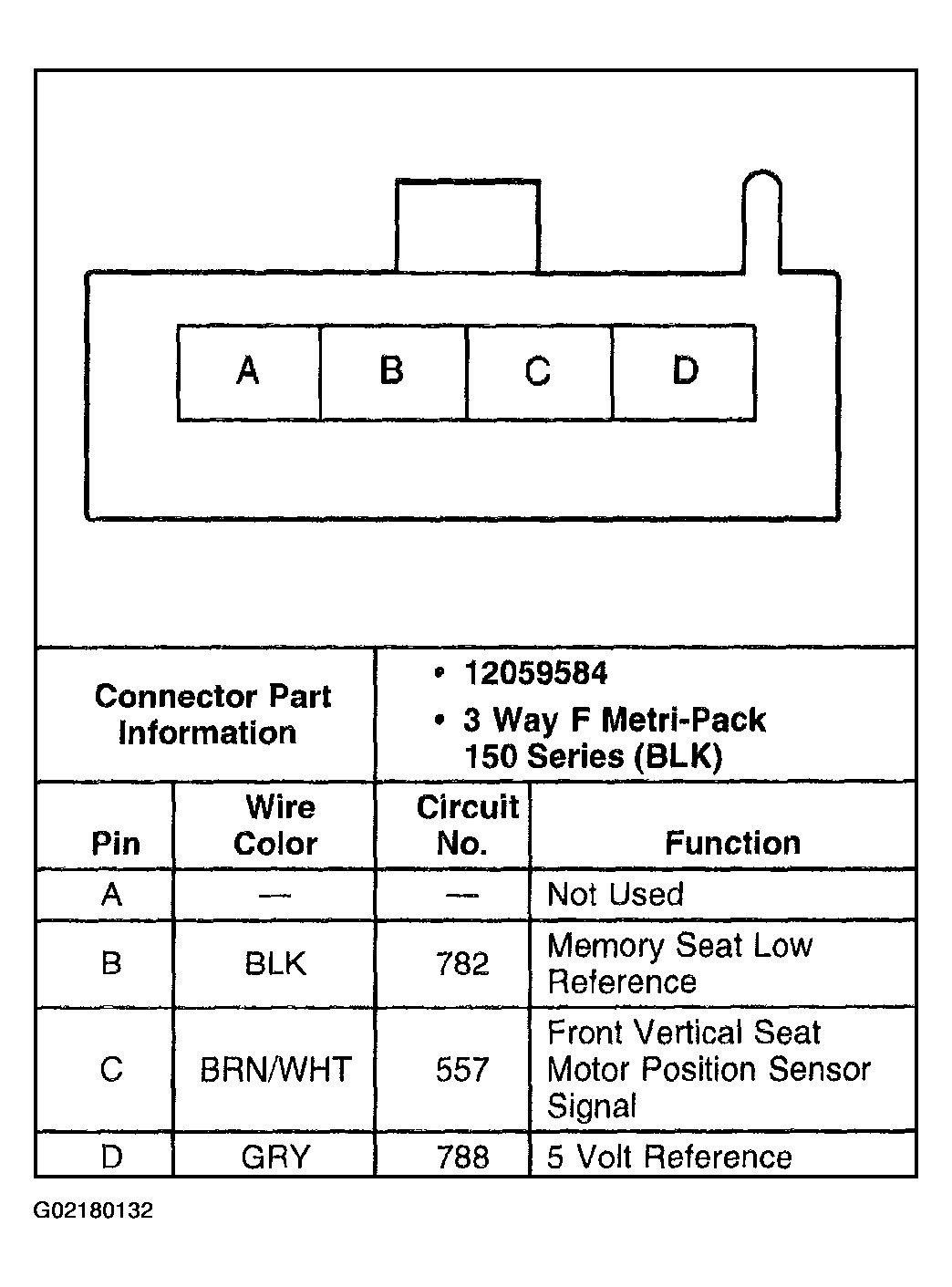

Fig 1: Seat Front Vertical Position Sensor - Driver
G02180132Courtesy of GENERAL MOTORS CORP.
