Seat Lumbar Horizontal Position Sensor Connector End View - Driver

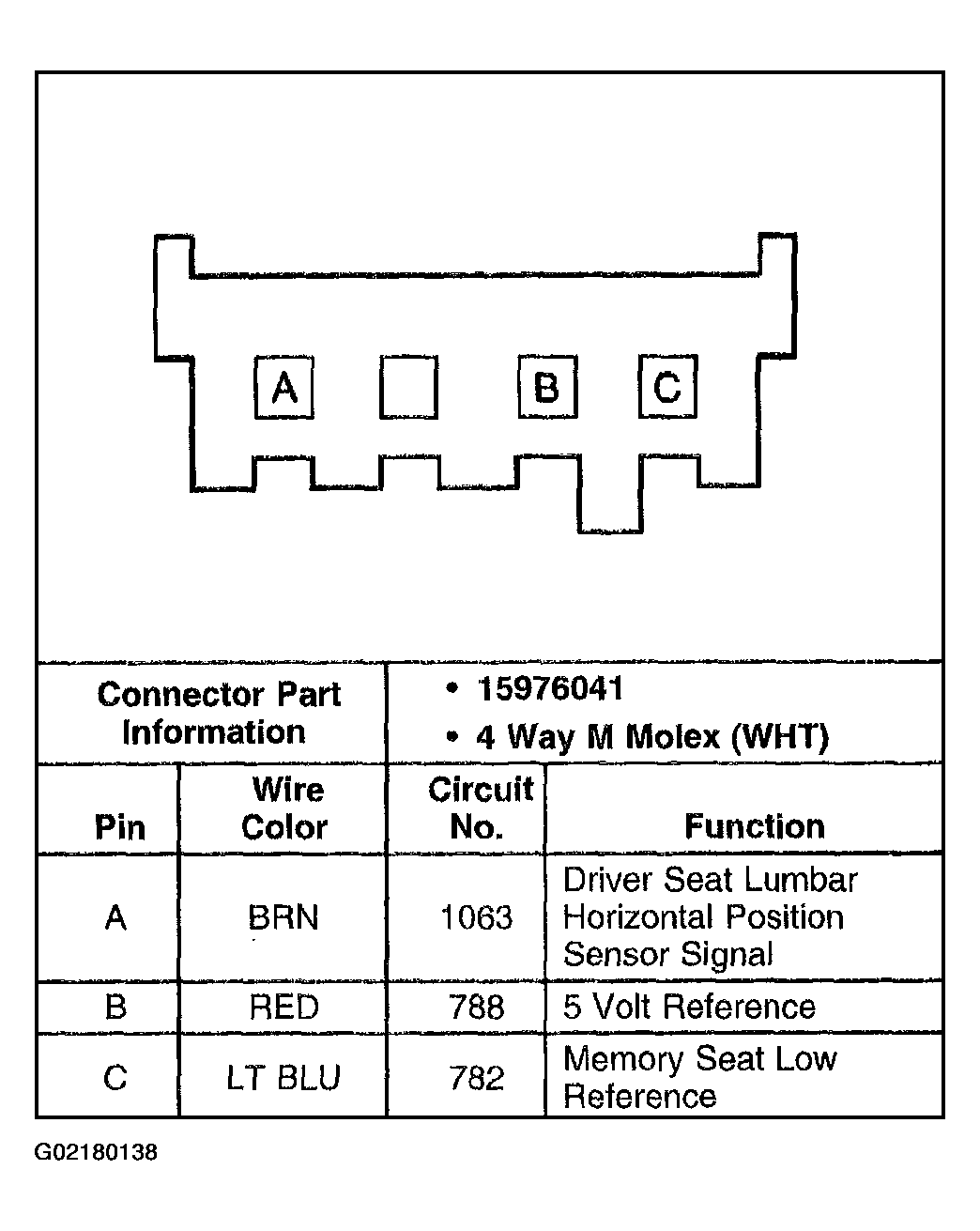

Fig 1: Seat Lumbar Horizontal Position Sensor - Driver
G02180138Courtesy of GENERAL MOTORS CORP.
