Steering Wheel Controls Connector End View - Left C2

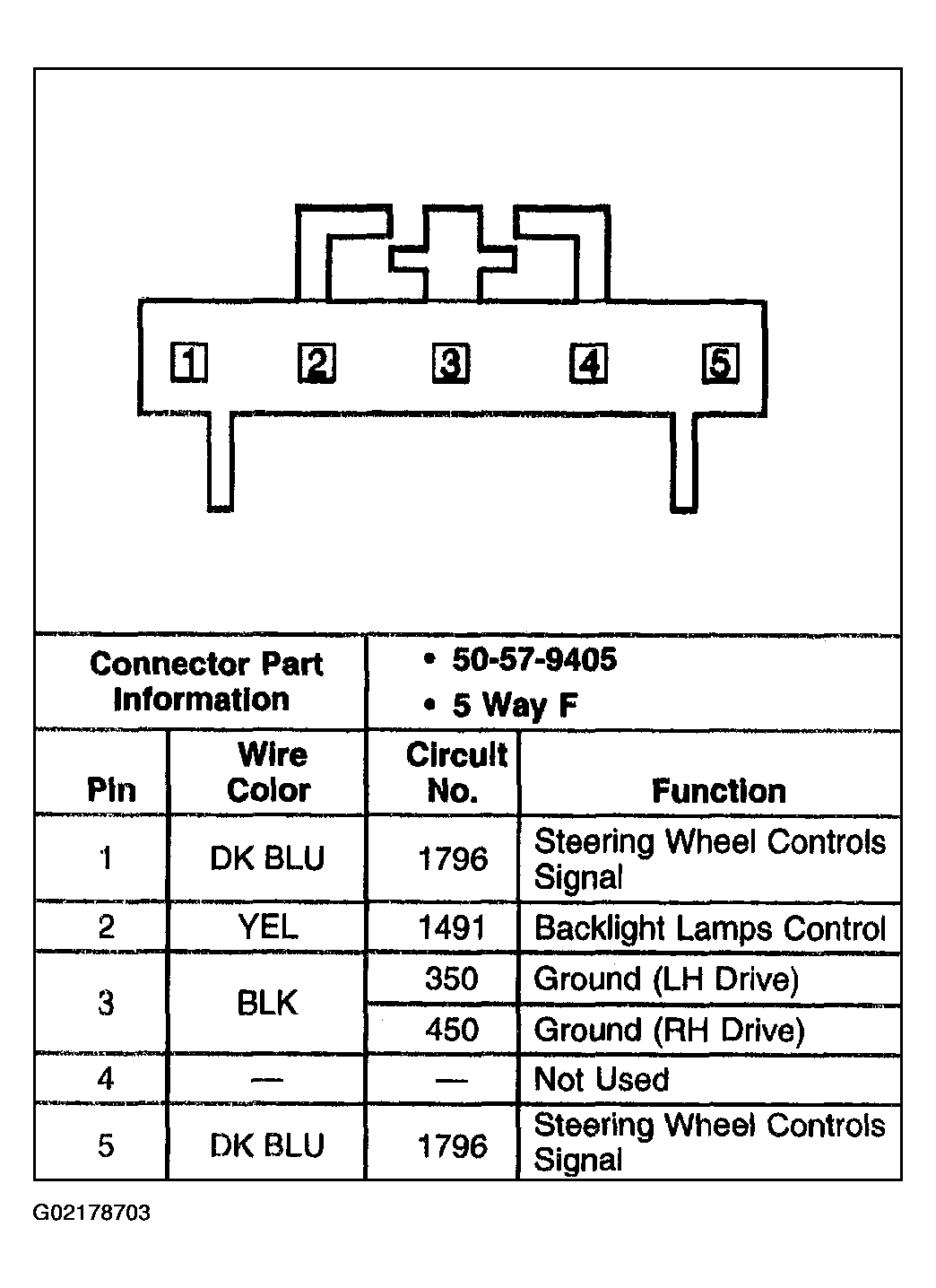

Fig 1: Steering Wheel Controls - Left C2
G02178703Courtesy of GENERAL MOTORS CORP.
