Installation Procedure

Install the outer tie rod end (3) to the inner tie rod end (1). Do not tighten the jam nut (2).

Fig 1: Installing Outer Tie Rod End To Inner Tie Rod End
Courtesy of GENERAL MOTORS CORP.
Connect the outer tie rod end (2) to the steering knuckle (1).

Fig 2: Connecting Outer Tie Rod End To Steering Knuckle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

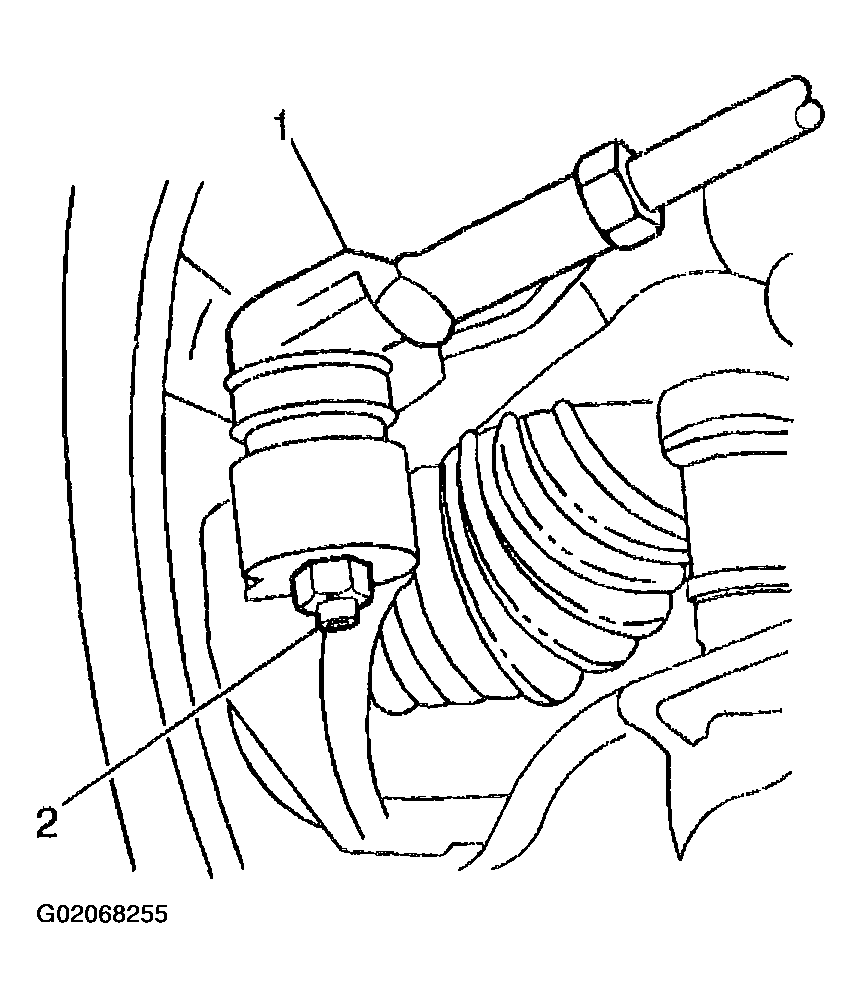

Install the outer tie rod end retaining nut (2).
Tighten

Tighten the outer tie rod end retaining nut to 47 N.m (35 lb ft).

Fig 3: Installing Outer Tie Rod End Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
IMPORTANT: Be sure the rack and pinion boot is not twisted or puckered during toe adjustment.
Adjust the toe alignment. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.
