Installation Procedure

IMPORTANT: The electrical contact must rest on the turn signal cancel cam assembly.

Install the multifunction switch (1).

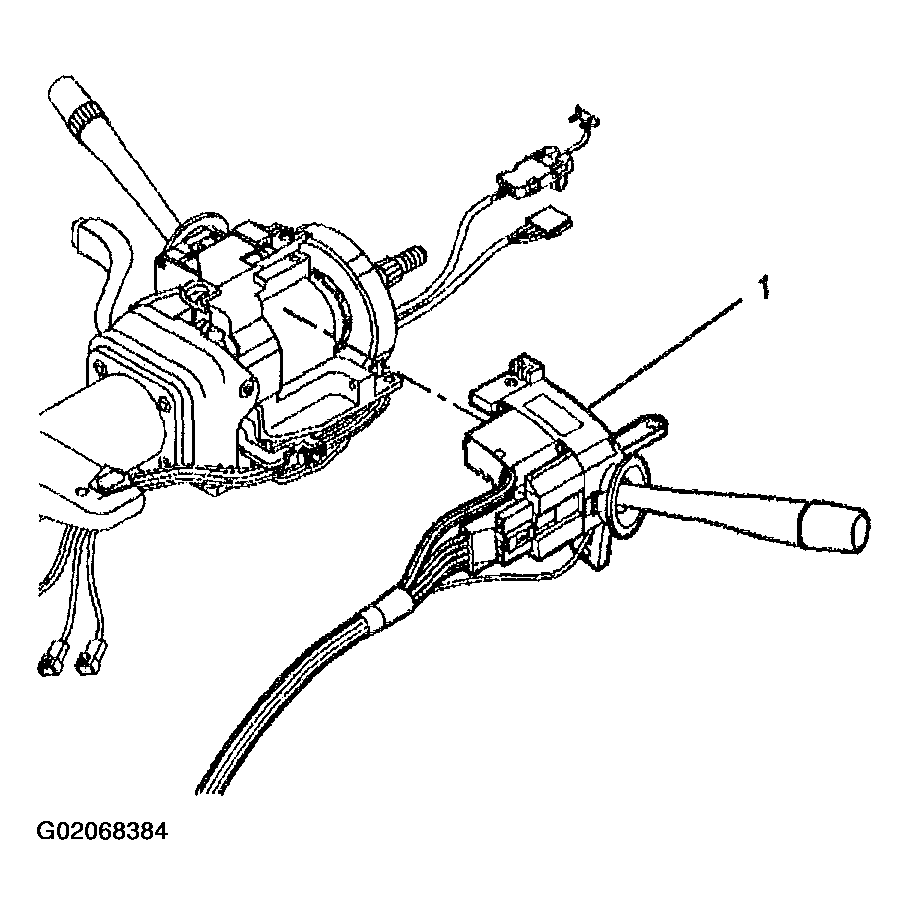

Fig 1: Installing Multifunction Switch
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the multifunction switch retaining screws.
Tighten

Tighten the screws to 7 N.m (62 lb in).

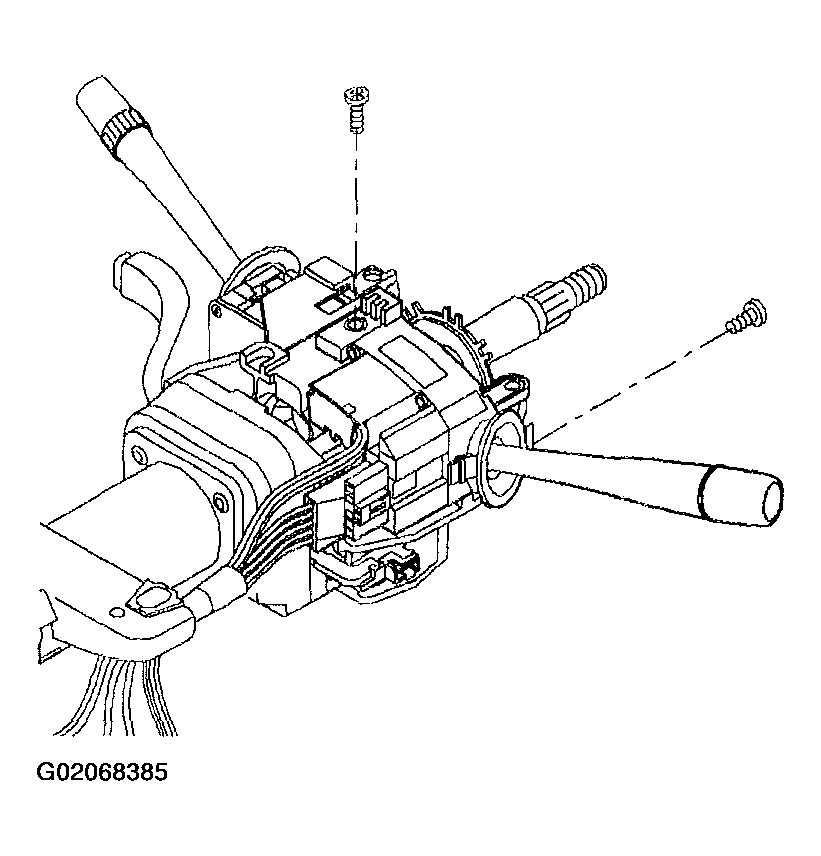

Fig 2: Installing Multifunction Switch Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Connect the multifunction switch electrical connectors (1, 2, 3).

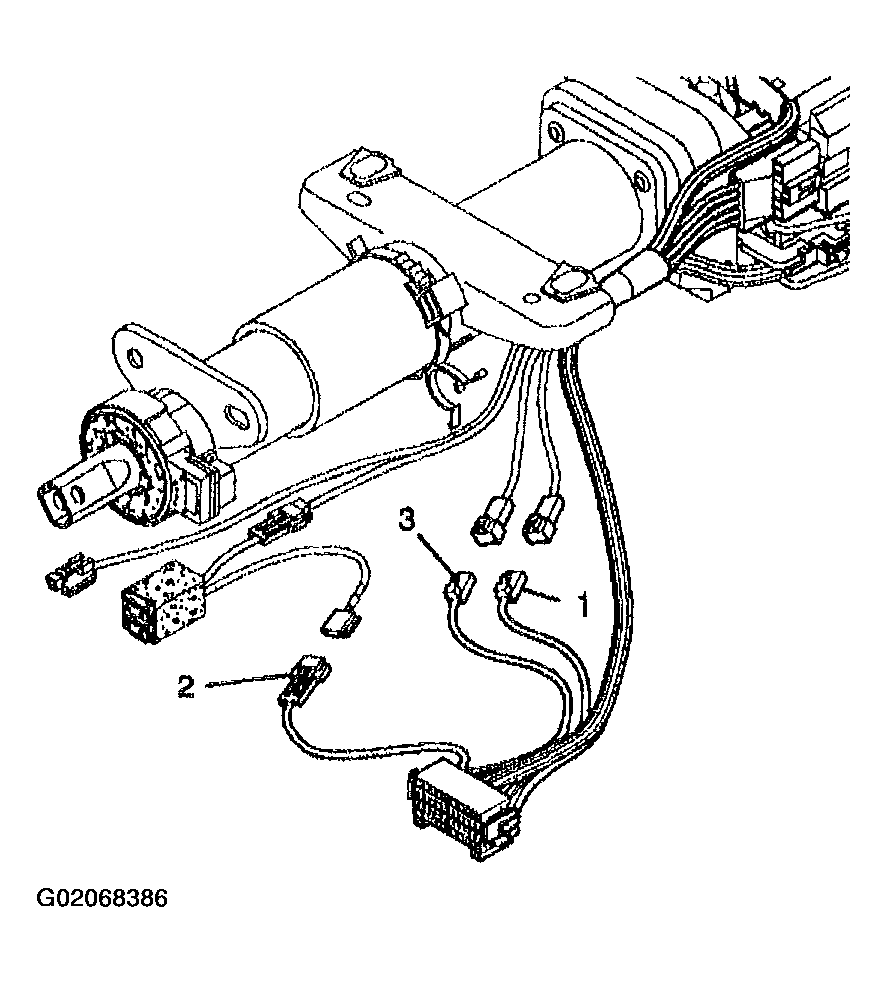

Fig 3: Connecting Multifunction Switch Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the wire harness (2) to the wire harness shield (1) on the lower steering column.

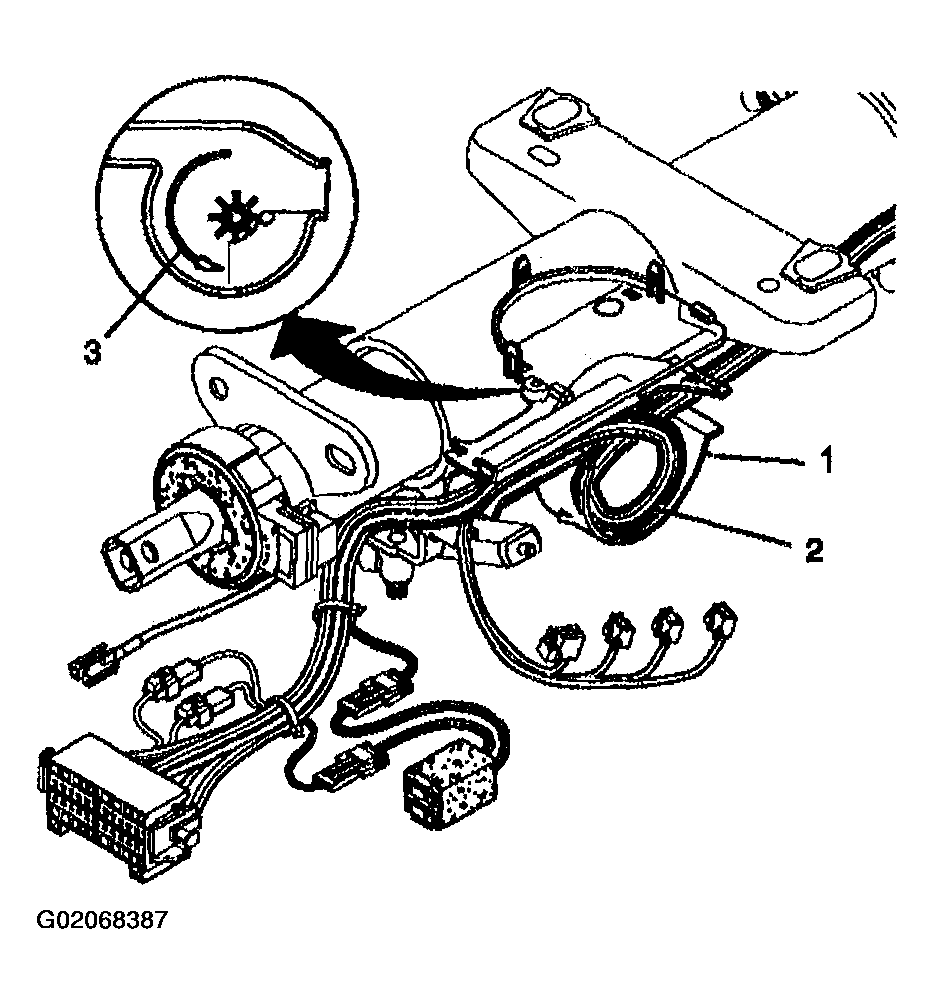

Fig 4: Installing Wire Harness To Wire Harness Shield
Courtesy of GENERAL MOTORS CORP.
Connect the control module electrical connectors.

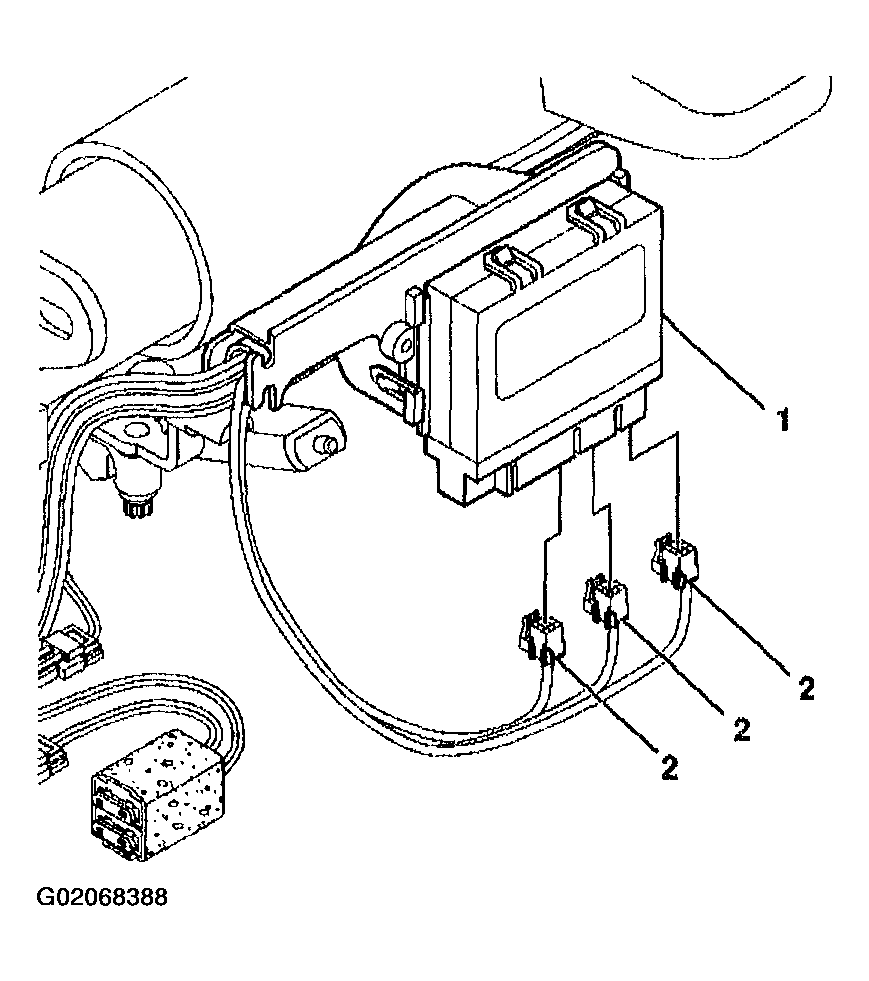

Fig 5: Connecting Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the steering column wire harness tie straps.

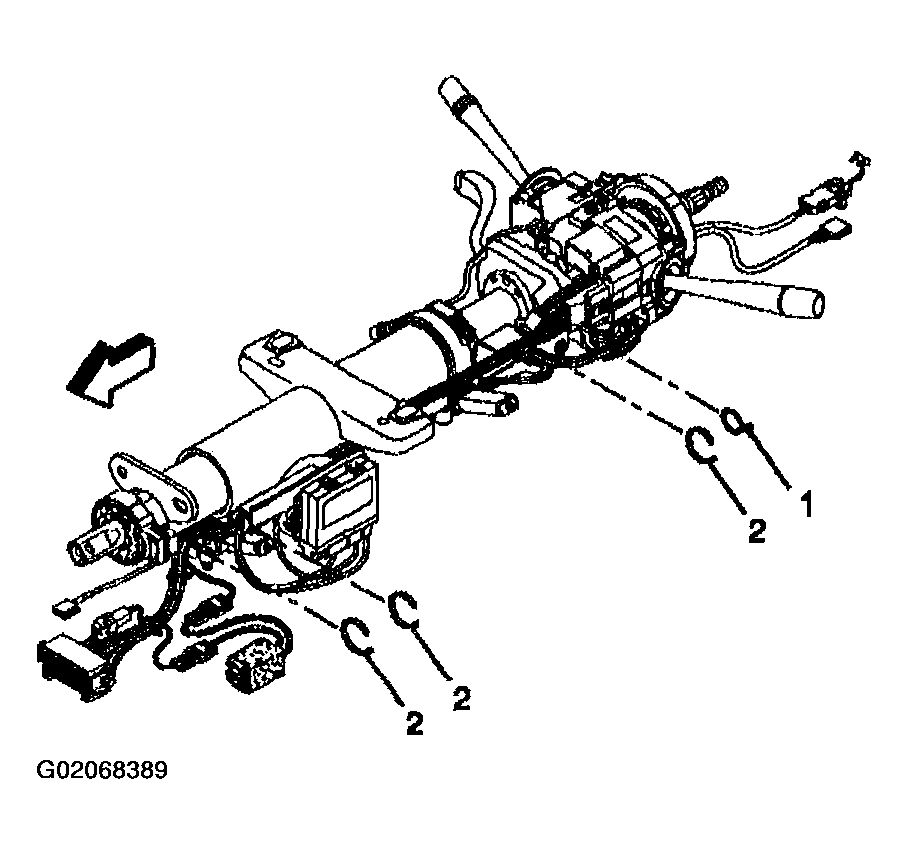

Fig 6: Installing Steering Column Wire Harness Tie Straps
Courtesy of GENERAL MOTORS CORP.
Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Enable the SIR system. Refer to ZONE 3 in Air Bag Restraint Systems.
