Installation Procedure

  1. Install the multifunction switch to the steering column.
    NOTE: Refer to FASTENER NOTICE  in Cautions and Notices.

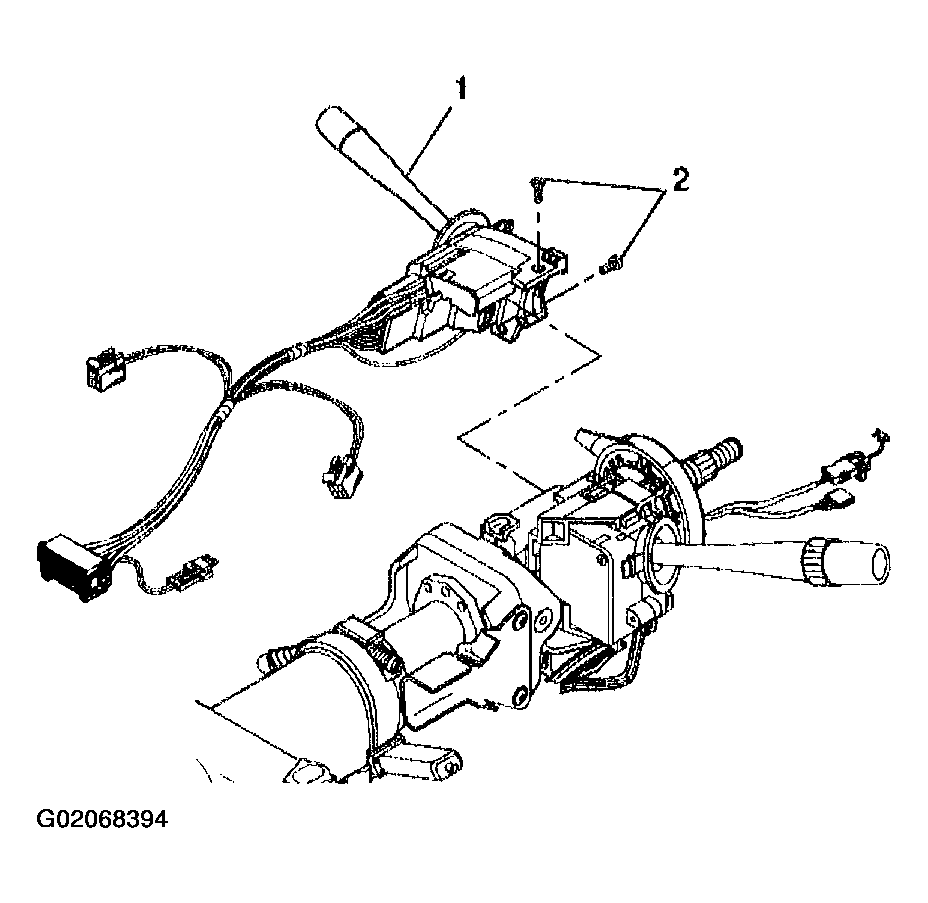

  2. Install the multifunction switch retaining screws.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

    Fig 1: Installing Multifunction Switch Retaining Screws
    G02068394Courtesy of GENERAL MOTORS CORP.

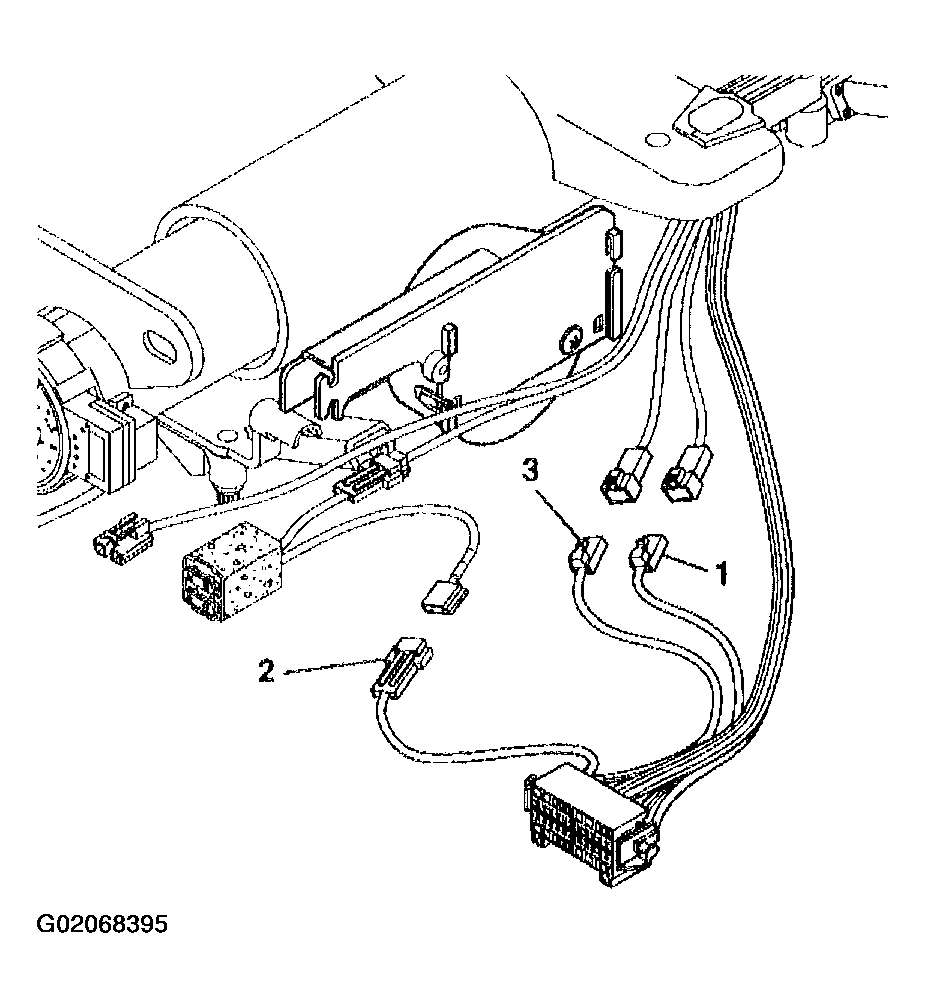

  3. Connect the multifunction switch electrical connectors (1, 2, 3).
    Fig 2: Connecting Multifunction Switch Electrical Connectors
    G02068395Courtesy of GENERAL MOTORS CORP.

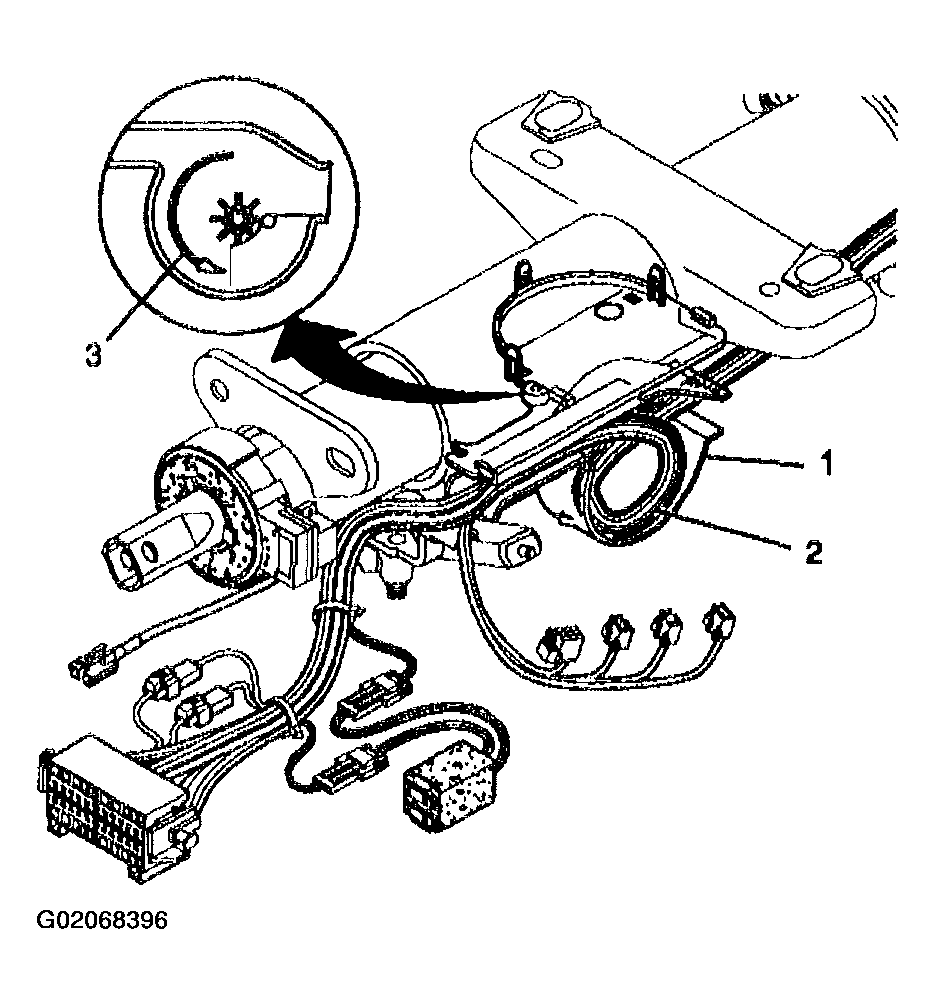

  4. Install the steering column wire harness (2) to the shield (1).
    Fig 3: Installing Steering Column Wire Harness To Shield
    G02068396Courtesy of GENERAL MOTORS CORP.

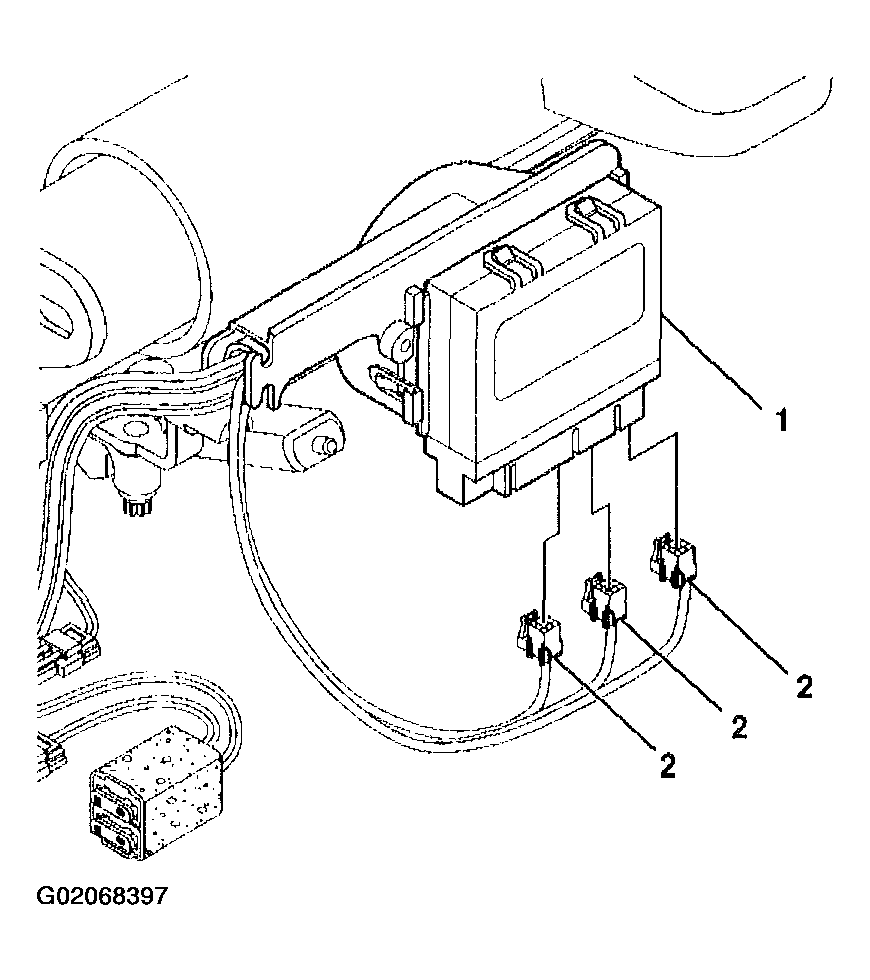

  5. Connect the control module electrical connectors
    Fig 4: Connecting Control Module Electrical Connectors
    G02068397Courtesy of GENERAL MOTORS CORP.
  6. Install the wire harness tie straps.
  7. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT   .
  8. Install the steering column. Refer to STEERING COLUMN REPLACEMENT   .
  9. Enable the SIR system. Refer to ZONE 3 in Air Bag Restraint Systems.
