Installation Procedure

Securely attach the CKP sensor pigtail to the lower end of the pull wire.
Use the pull wire as a guide in order to pull the sensor pigtail up through the routing path into position.
Disconnect the pull wire from the sensor pigtail.

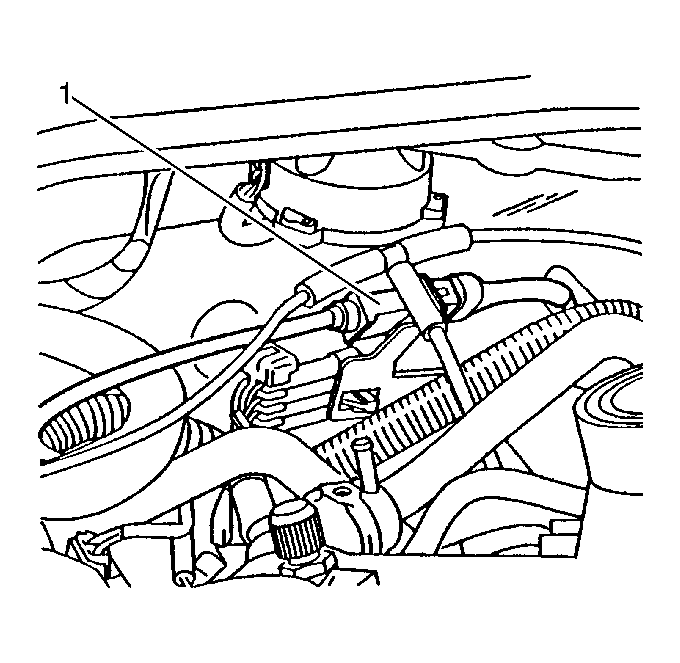

Fig 1: Locating CKP Sensor Pigtail

Courtesy of GENERAL MOTORS CORP.

Connect the CKP sensor pigtail (1) to the retainer.
Connect the CKP sensor pigtail (1) to the wiring harness connector.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Thoroughly clean the mating surfaces of the CKP sensor and the engine block.

Fig 2: Identifying CKP Sensor & Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt securing the CKP sensor to the engine block.
Tighten: Tighten the CKP sensor bolt to 8 N.m (71 lb in).
Check the harness for proper routing. Do not allow the wiring to come in contact with the exhaust manifold.
Lower the vehicle.
Secure the CKP sensor pigtail to the oil cooler pipes using a tie strap.
Install the following components depending on the RPO code:
- (LHD)
  The wiper motor module. Refer to Wiper Motor Module Replacement (LHD) or Wiper Motor Module Replacement (RHD) in Wipers/Washer Systems.
- (RHD)

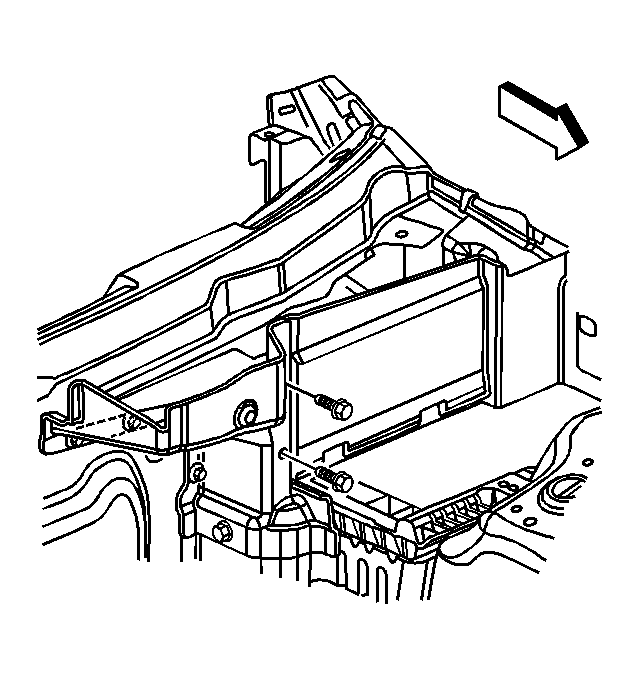

  - The front air inlet panel assembly.
  - The front air inlet panel assembly bolts.
    Tighten: Tighten the front air inlet panel assembly bolts to 6 N.m (53 lb in).
  - The left air inlet grill panel. Refer to Air Inlet Grille Panel Replacement (LHD) or Air Inlet Grille Panel Replacement (RHD) in Body Front End.
