Installation Procedure

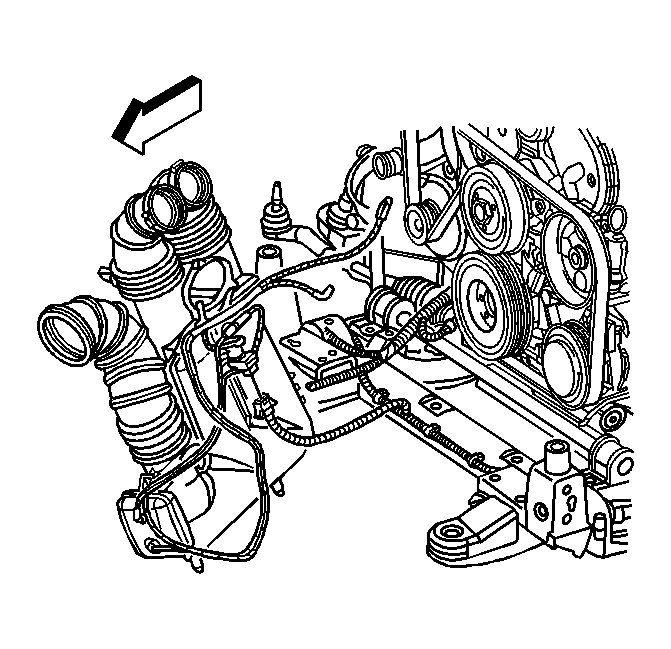

    Fig 1: View Of Intake Air Resonator In Engine Compartment
    GM785803Courtesy of GENERAL MOTORS CORP.
  1. Carefully position aside the following while installing the intake air resonator in the engine compartment:
    • The surge tank inlet hose
    • The upper radiator hose
  2. Route the vacuum hoses as previously noted.
  3. Connect the vacuum hoses to the following components:
    • The coolant bypass solenoid
    • The intake plenum switchover solenoid
    • The vacuum brake booster hose
  4. Connect the electrical connector to the intake resonance switchover solenoid.
  5. Fig 2: Identifying Intake Air Resonator Guide Pins
    GM785800Courtesy of GENERAL MOTORS CORP.
  6. Insert the intake air resonator guide pins into the rubber mounts located in the front frame.
  7. Fig 3: Identifying Air Intake Duct Hoses To Throttle Body
    GM785802Courtesy of GENERAL MOTORS CORP.
  8. Connect they air intake duct hoses to the throttle body.

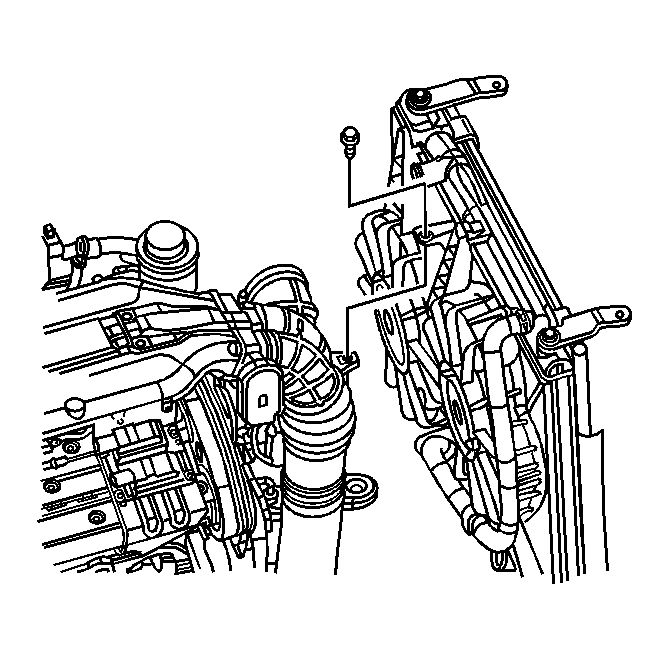

  9. Fig 4: View Of Intake Air Resonator Retaining Bolt
    GM785804Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  10. Install the bolt securing the intake air resonator to the cooling fan assembly.

    Tighten:  Tighten the intake air resonator retaining bolt to 9 N.m (80 lb in).

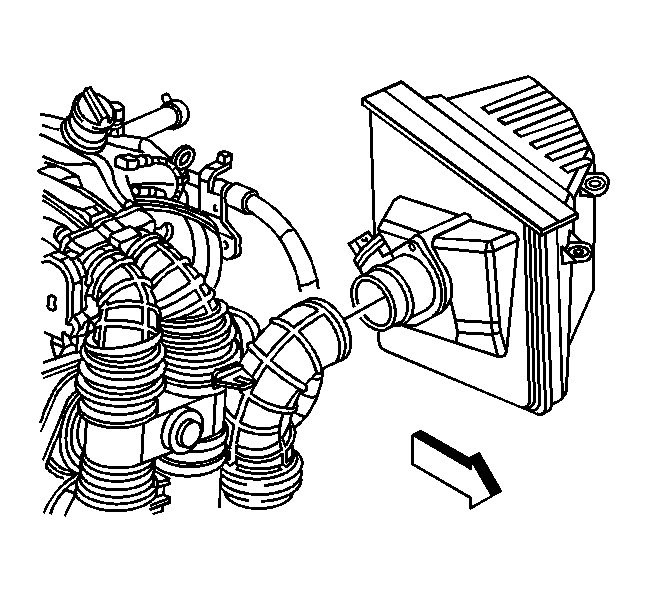

  11. Fig 5: Locating Air Intake Duct Hose To MAF/IAT Sensor
    GM785797Courtesy of GENERAL MOTORS CORP.
  12. Connect the air intake duct hose to the MAF/IAT sensor.
