Horns Component Views

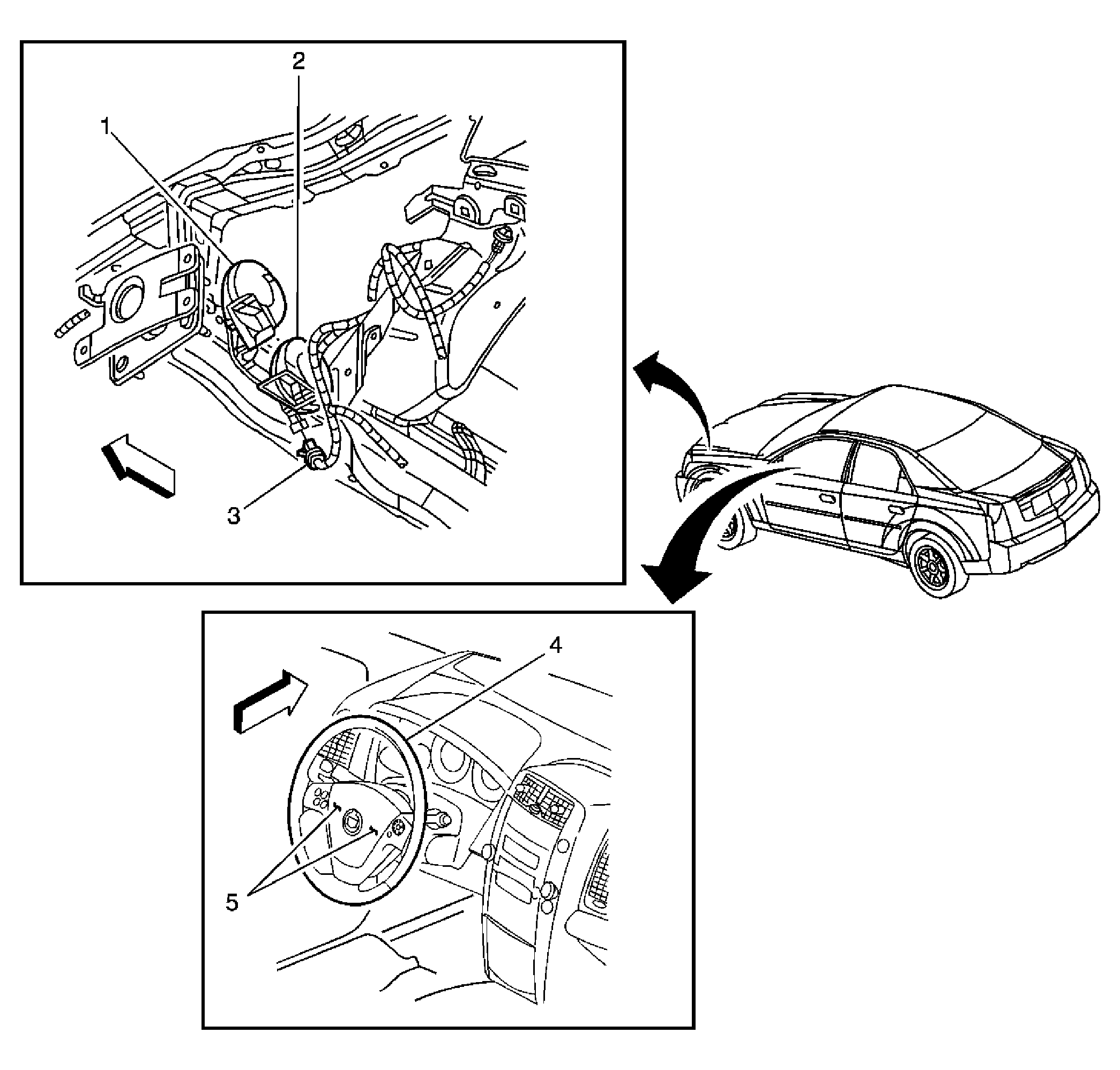

Fig 1: Horn Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn - Low Note
2	Horn - High Note
3	Horn Assembly Connector
4	Steering Wheel (LHD shown, RHD similar)
5	Horn Switch (Part of Inflatable Restraint Steering Wheel Module)
