Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 1: Installing Ignition Switch Replacement And Securing By Using 2 Tapping Screws
    GM324871Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition switch replacement (2) and secure by using the 2 tapping screws (3).

    Tighten:  Tighten the screws to 7 N.m (62 lb in).

  2. Push the key alarm connector (1) into the ignition lock cylinder case (4).
  3. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.
  4. Fig 2: Locating Theft Deterrent Module & Ignition Lock Cylinder Case Assembly
    GM324869Courtesy of GENERAL MOTORS CORP.
  5. Install the coded key controller (2) onto the ignition lock cylinder case (1).
  6. Fig 3: Connecting Connectors And Of Ignition Switch Replacement
    GM324867Courtesy of GENERAL MOTORS CORP.
  7. Connect the connectors (1) and (2) of the ignition switch replacement.

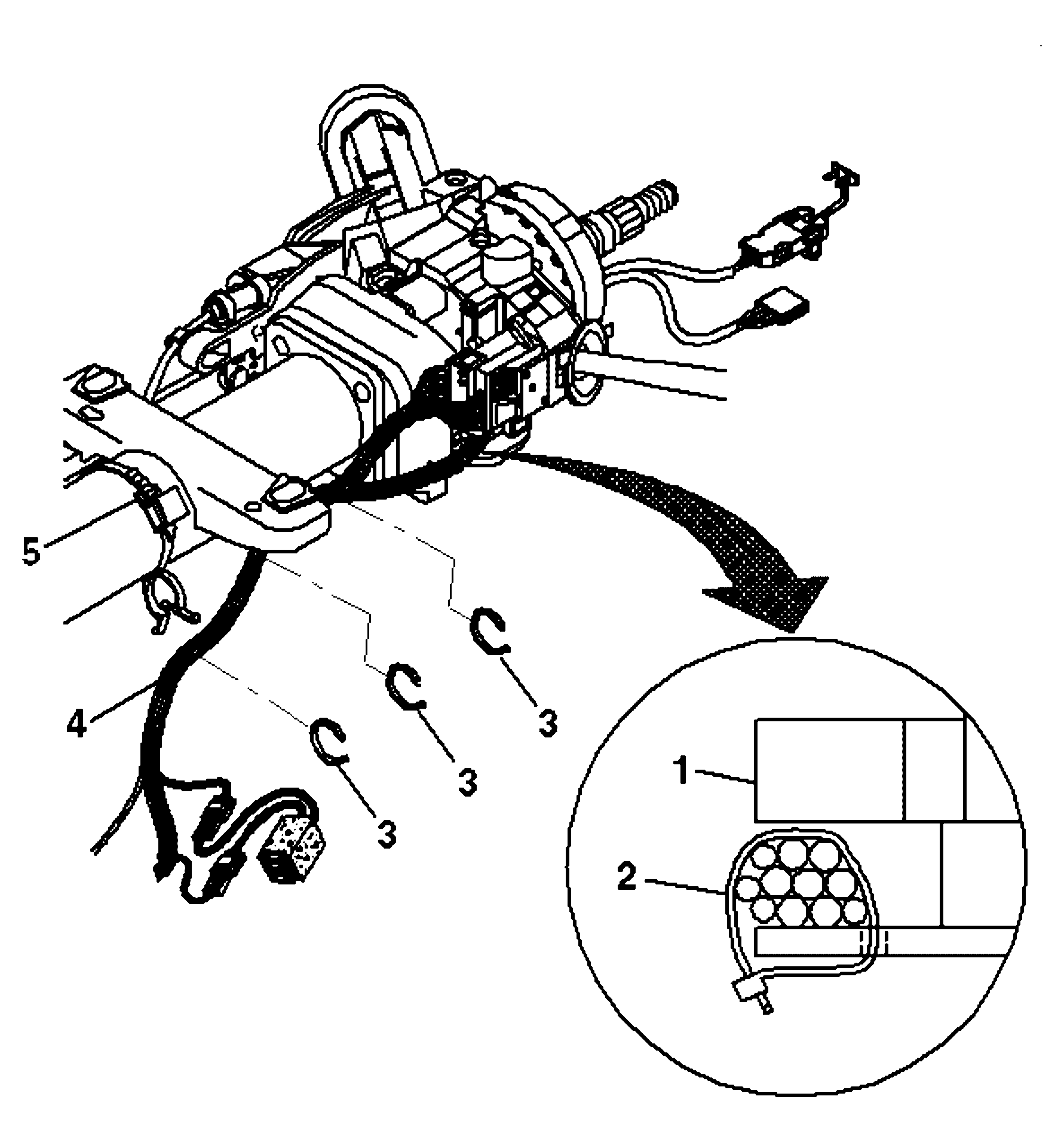

  8. Fig 4: Installing Wire Harness Strap Onto Upper Tilt Head Assembly
    GM324821Courtesy of GENERAL MOTORS CORP.
  9. Install the wire harness strap (2) onto the upper tilt head assembly (1).
  10. Install the 3 wire harness straps (3) onto the wire harness assembly (4).
  11. Install the wire harness assembly (4) into the wire harness strap (5).
  12. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
  13. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
