Removal Procedure
- Remove the door trim panel to gain access to the power mirror wire harness connector. Refer to Trim Panel Replacement - Side Rear Door (Standard) or Trim Panel Replacement - Side Rear Door (WC2, WC8) .
- Remove the garnish molding. Refer to Garnish Molding Replacement - Front Door Frame .

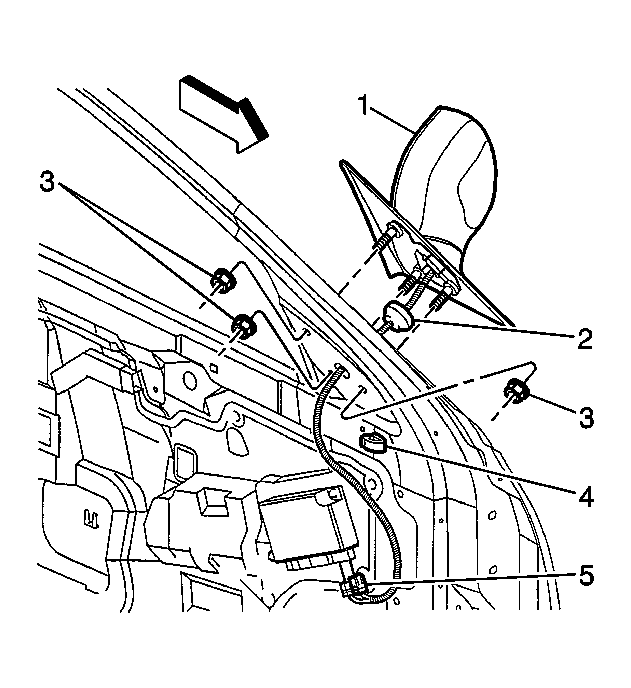

- Disconnect the power mirror wire harness electrical connector (5) from the door module.
- Disconnect the wire harness from the retainer clip (4).
- Remove the mirror fasteners (3).
- Remove the mirror (1) from the door.
- Unseat the grommet (2).
- Pull the wiring harness through the hole in the mirror patch.
