Installation Procedure

  1. Install the top retainer to the rear door latch pillar.
  2. Position the locator into the upper corner of the windshield pillar.
  3. Working rearward along the header, install the sealing strip to the flange.
  4. At the locator working downward along the windshield pillar, install the sealing strip to the flange.

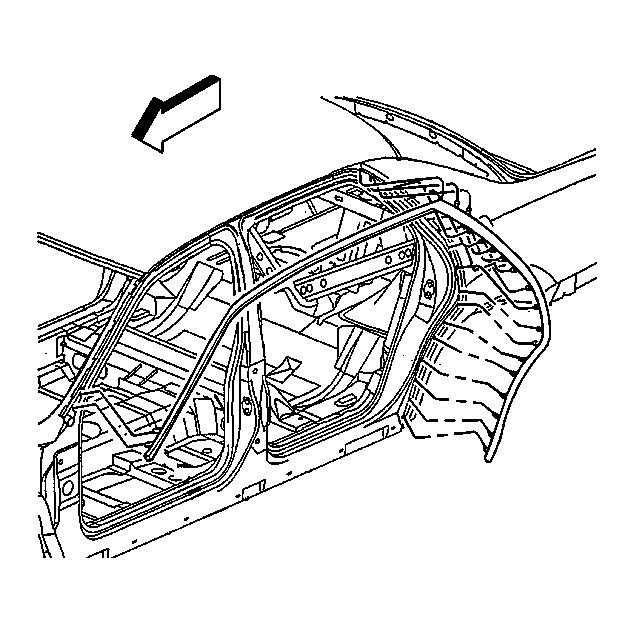

    5. Fig 1: View Of Auxiliary Sealing Strip
    GM524154Courtesy of GENERAL MOTORS CORP.
  5. Install the 2 retainers.
  6. Install the remaining retainers to the rear door latch pillar.
