Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Standard)  or Trim Panel Replacement - Side Front Door (WC2, WC8) .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the garnish molding. Refer to Garnish Molding Replacement - Front Door Frame .
  5. Remove the window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  6. Grasp the window run channel at the lower rear corner.
  7. Pull up and forward to release the run channel from the door flange.

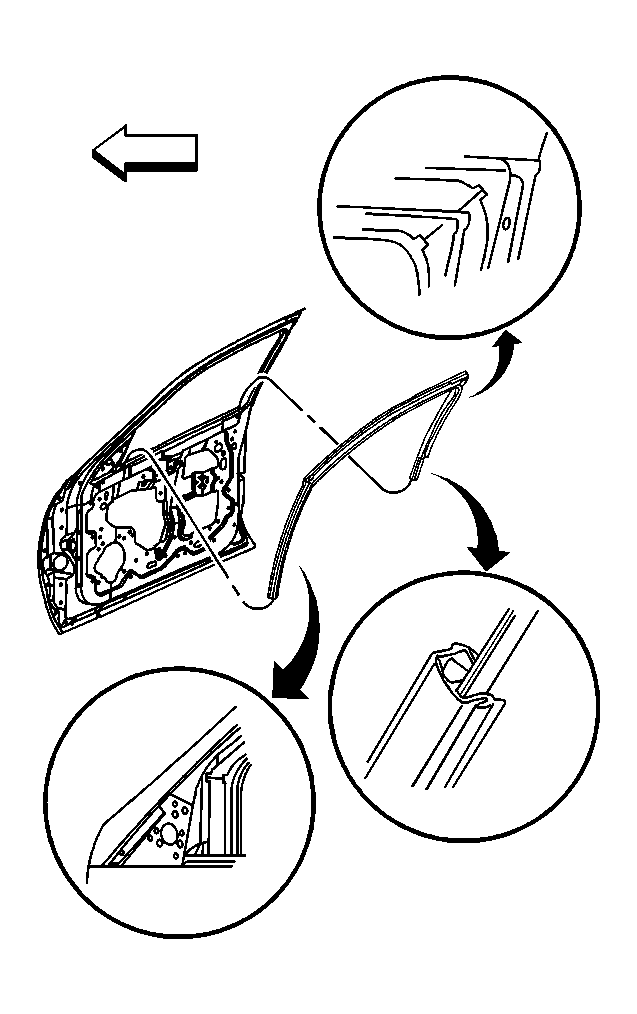

    8. Fig 1: View Of Run Channel & Door Flange - Front Door
    GM524168Courtesy of GENERAL MOTORS CORP.
