Defogger Schematics

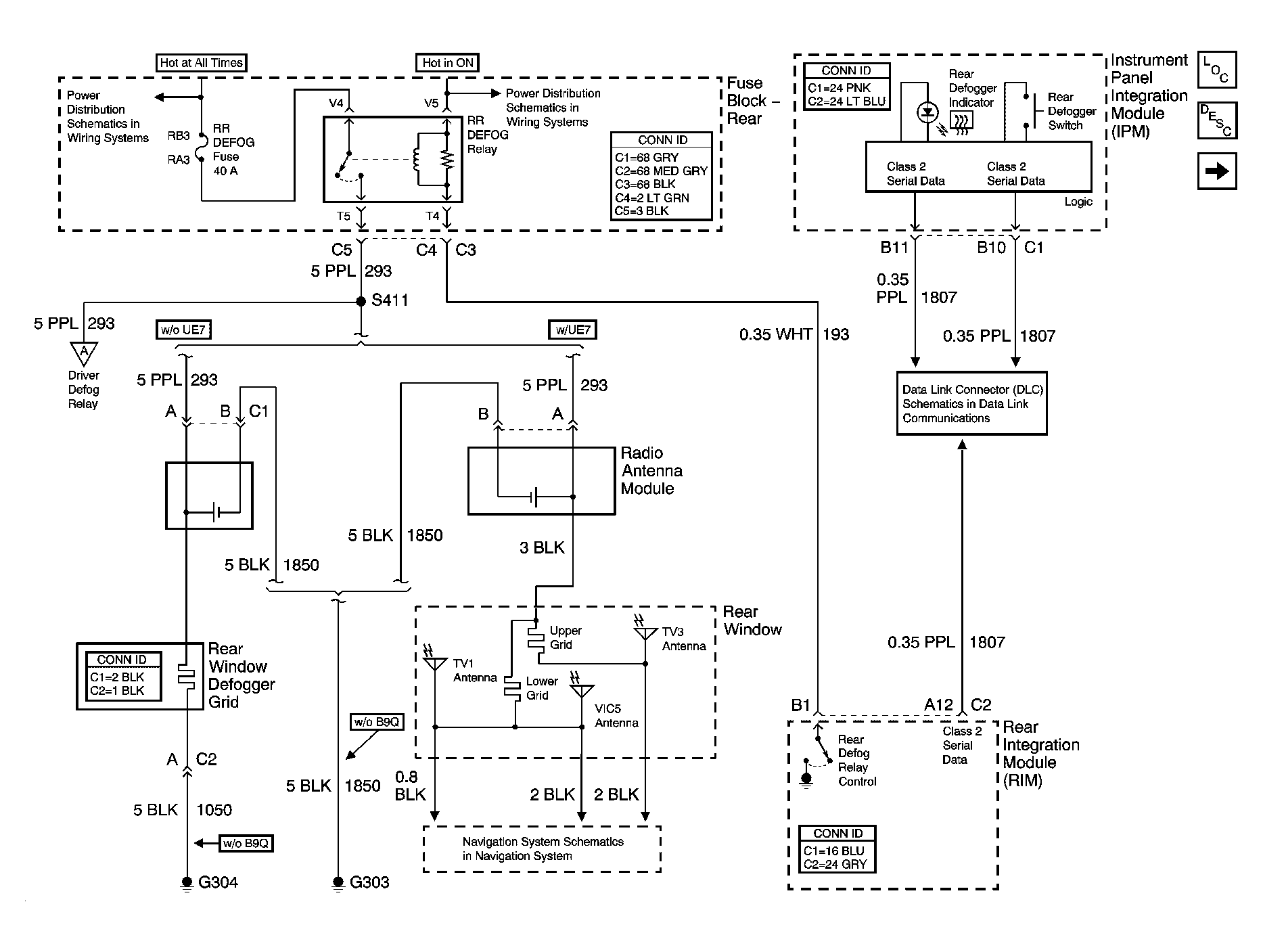

Fig 1: Defogger Schematic
GM1392785Courtesy of GENERAL MOTORS CORP.

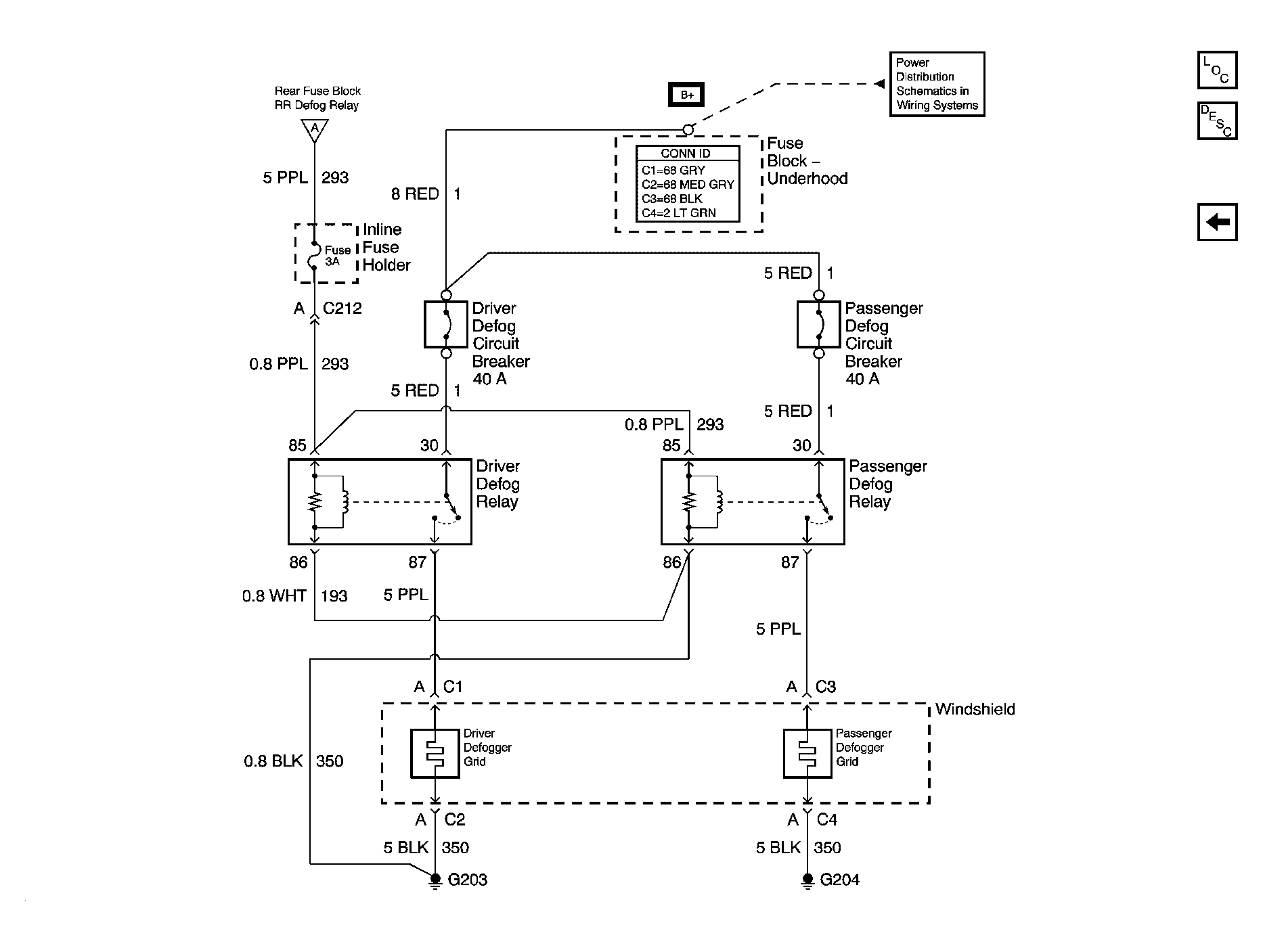

Fig 2: Windshield- w/ WC2/WC8 Schematic
GM1392786Courtesy of GENERAL MOTORS CORP.
