Installation Procedure

  1. Install the head up display switch to the knee bolster.
    2. Fig 1: View Of Head Up Display Switch
    GM808017Courtesy of GENERAL MOTORS CORP.
  2. Connect the head up display switch (1) electrical connector (2).

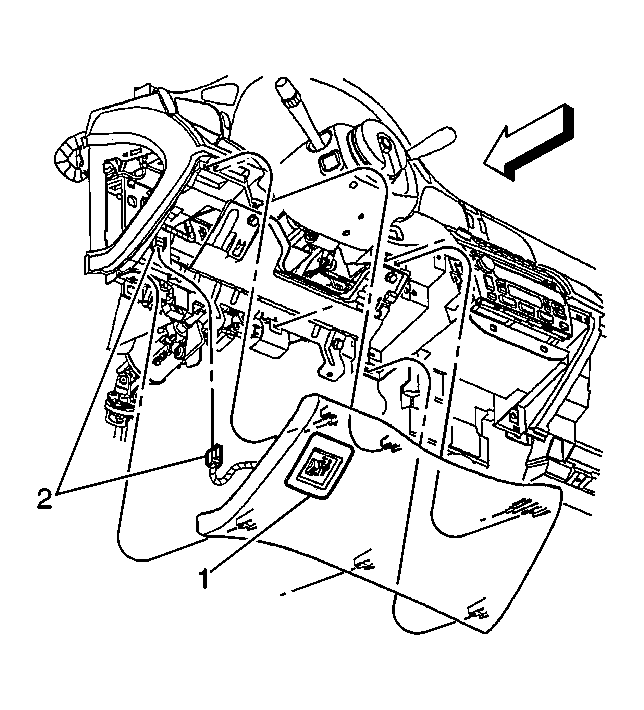

    3. Fig 2: View Of Head Up Display Switch & Electrical Connector
    GM520019Courtesy of GENERAL MOTORS CORP.
  3. Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .
