Removal Procedure

  1. Remove the steering wheel. Refer to Steering Wheel Replacement .
    2. Fig 1: View Of Steering Wheel Rear Shroud Screws
    GM1390622Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering wheel rear shroud screws (1).

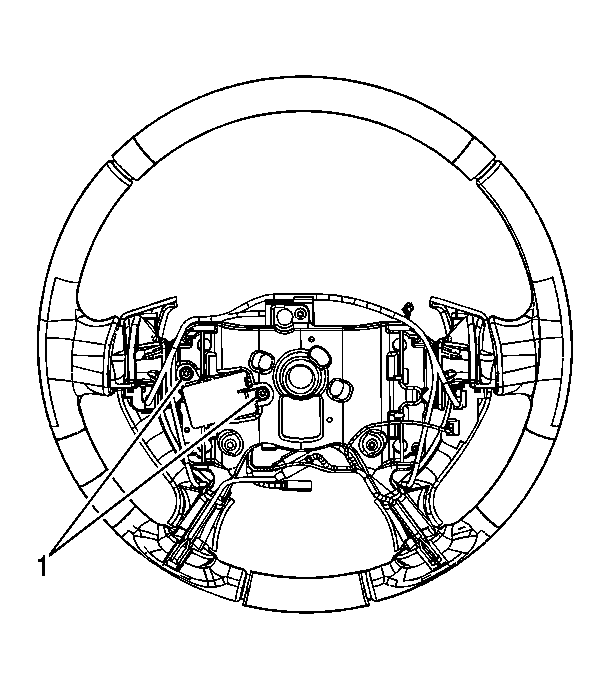

    3. Fig 2: View Of Steering Wheel Heat Module Retaining Screws
    GM1390625Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 retaining screws (1).
