Installation Procedure

  1. Install the module to the vehicle.

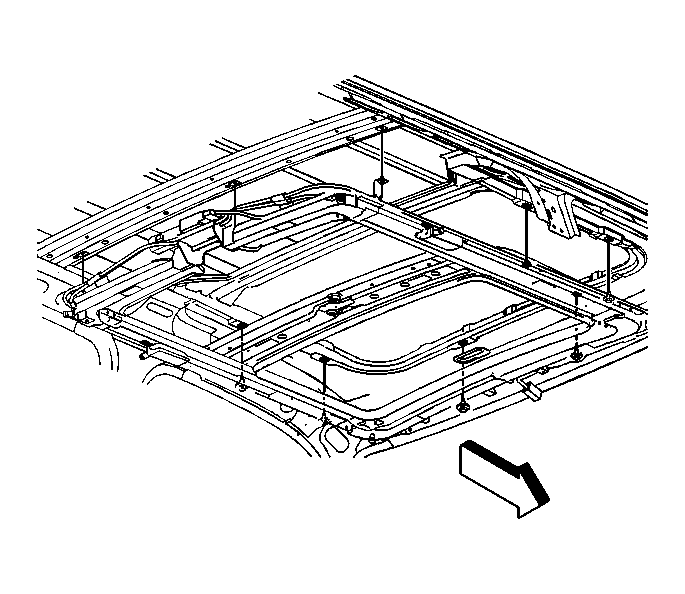

    2. Fig 1: View Of Sunroof Module Assembly
    GM582982Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Loosely install the 9 bolts retaining the module to the roof.

    Use a drill bit to align the 2 holes A and B.

    Tighten:  Tighten the 9 bolts in the sequence shown to 9 N.m (80 lb in).

    3. Fig 2: Sunroof Module Tightening Sequence
    GM730181Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors.
  4. Install the drain hoses. Refer to Sunroof Drain Hose Replacement - Front  and Sunroof Drain Hose Replacement - Rear .
  5. Install the sunshade. Refer to Sunroof Sunshade Panel Replacement .
  6. Install the headliner. Refer to Headliner Replacement in Interior Trim.
  7. Install the finishing lace. Refer to Sunroof Finishing Lace Replacement .
  8. Install the sunroof window. Refer to Sunroof Window Replacement .
  9. Synchronize the sunroof motor if necessary. Refer to Sunroof Motor/Actuator Synchronization .
