Instrument Panel, Gages, and Console Component Views

Fig 1: RF Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Oil Level Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch
2	A/C Compressor Clutch Connector
3	Engine Wiring Harness
4	Engine Oil Level Sensor Connector
5	Knock Sensor (KS) 2 Connector
6	Knock Sensor (KS) 2
7	Starter Relay Output (S-Terminal Feed)

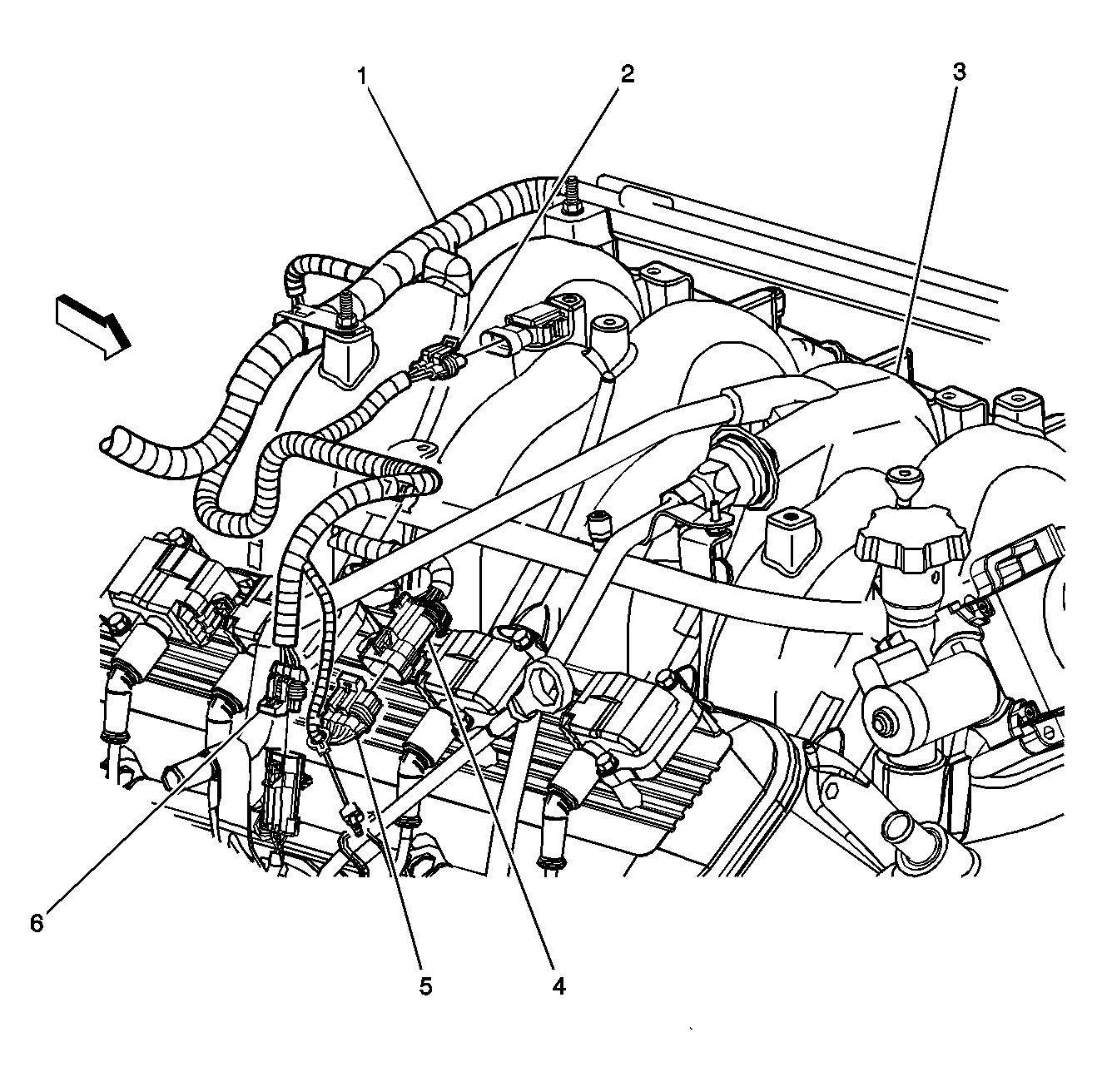

Fig 3: Engine View - Upper Right Component View (8.1L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	Manifold Absolute Pressure (MAP) Sensor
3	Intake Manifold
4	Ignition Coil Connector-Harness Side
5	Ignition Coil Connector-Component Side
6	Engine Coolant Temperature (ECT) Sensor Connector

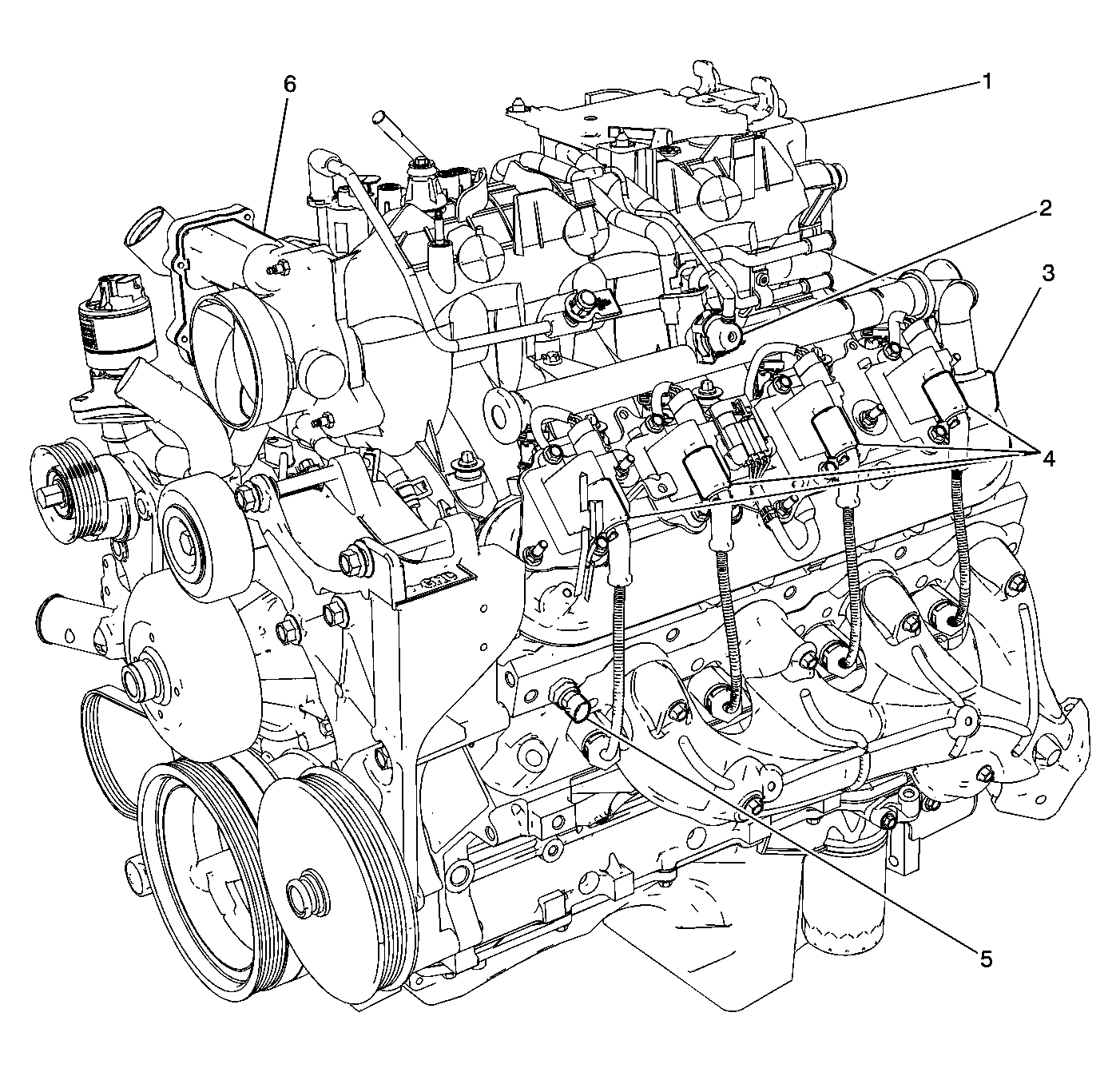

Fig 4: Engine View - Left Side Component View (5.3L, 6.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Fuel Pressure Regulator
3	Positive Crankcase Ventilation (PCV) Valve
4	Left Bank Ignition Coils
5	Engine Coolant Temperature (ECT) Sensor
6	Throttle Body

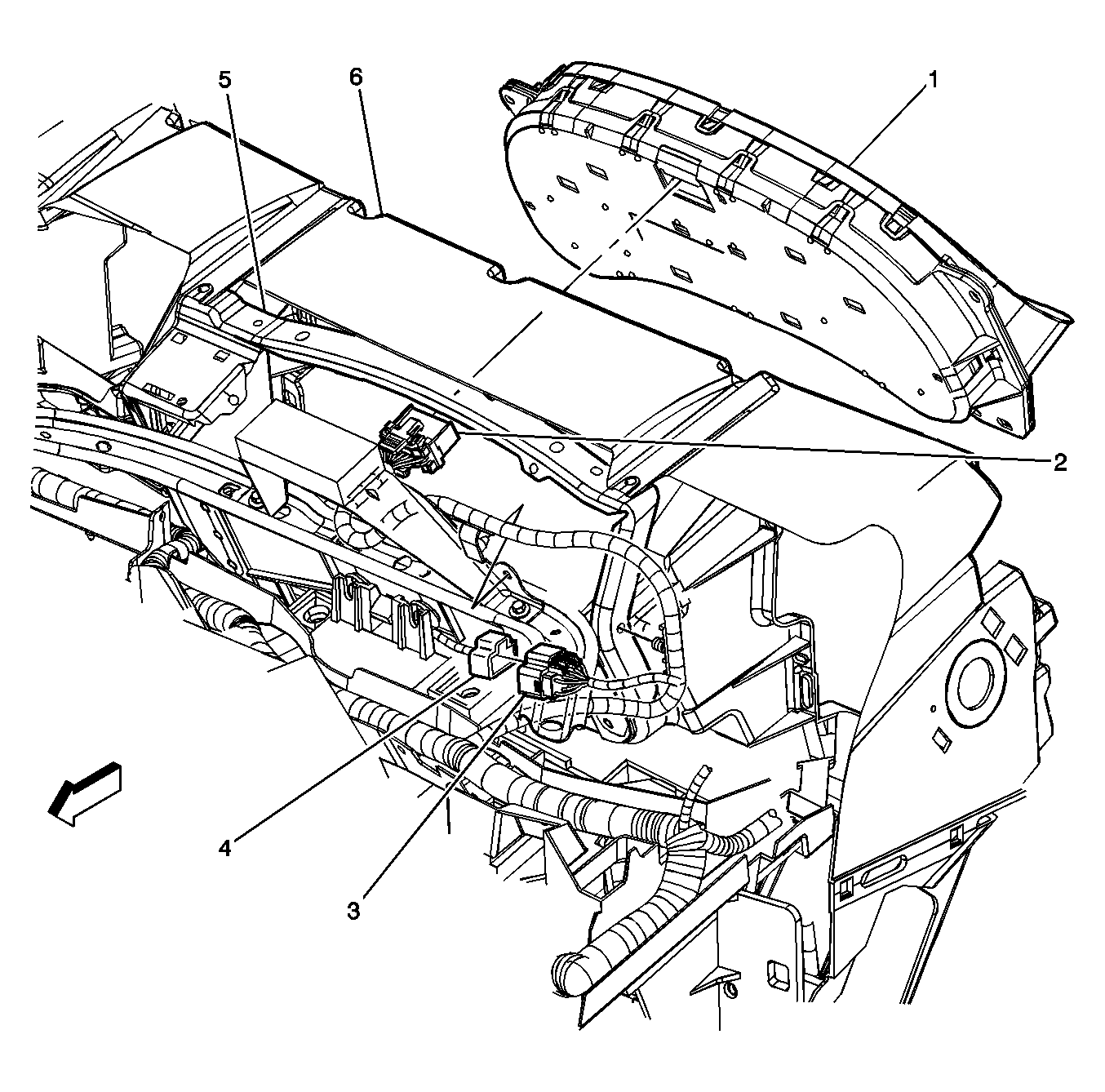

Fig 5: Instrument Panel - Left Rear Top Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Instrument Cluster Connector
3	C214-I/P Side
4	C214-Headliner Side
5	Instrument Cluster Brace
6	Instrument Panel

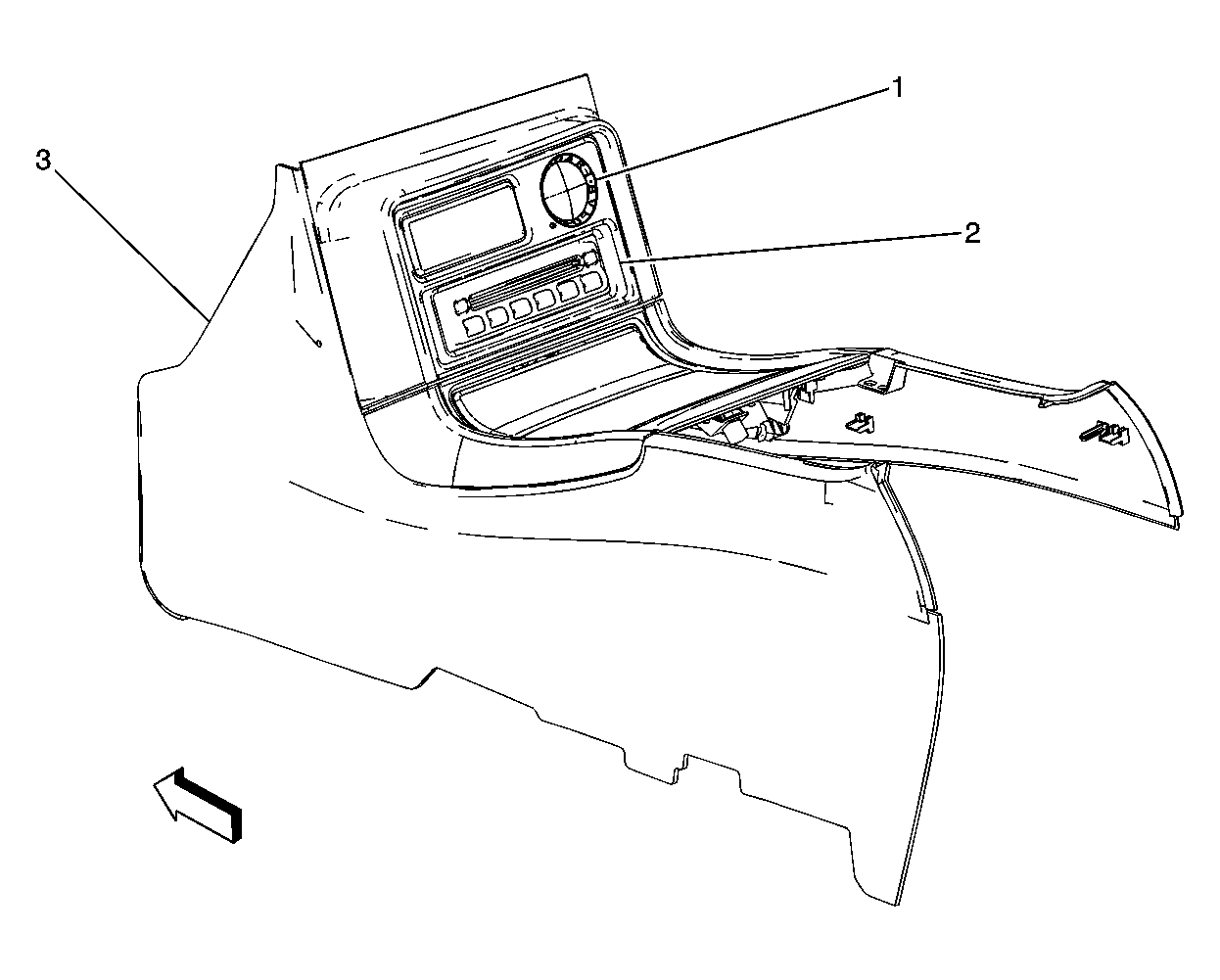

Fig 6: Analog Clock Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Analog Clock
2	Remote Playback Device-CD Player
3	Console Extension

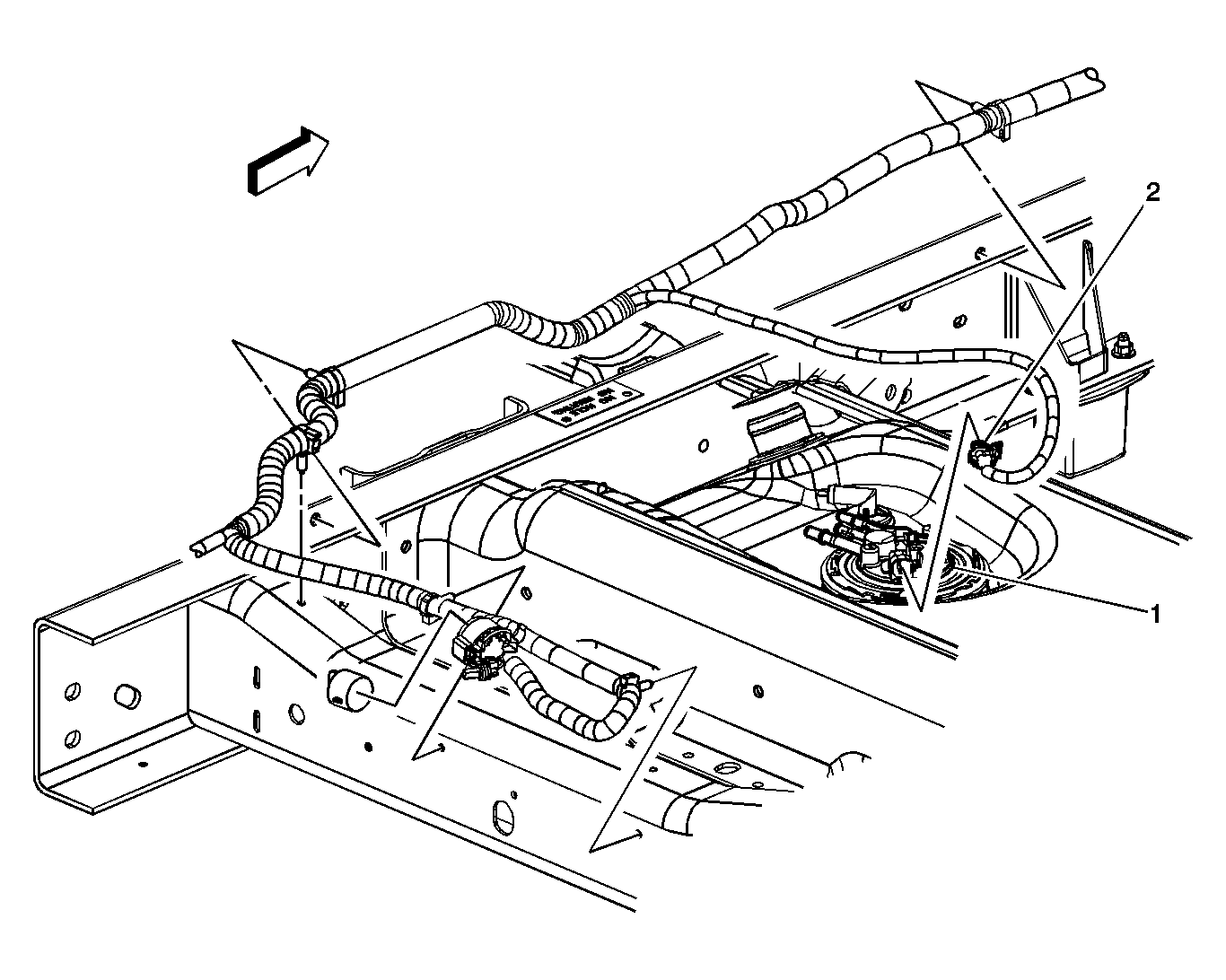

Fig 7: Fuel Pump & Sender Assembly - Primary Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly-Primary Connector
2	Fuel Pump and Sender Assembly-Primary

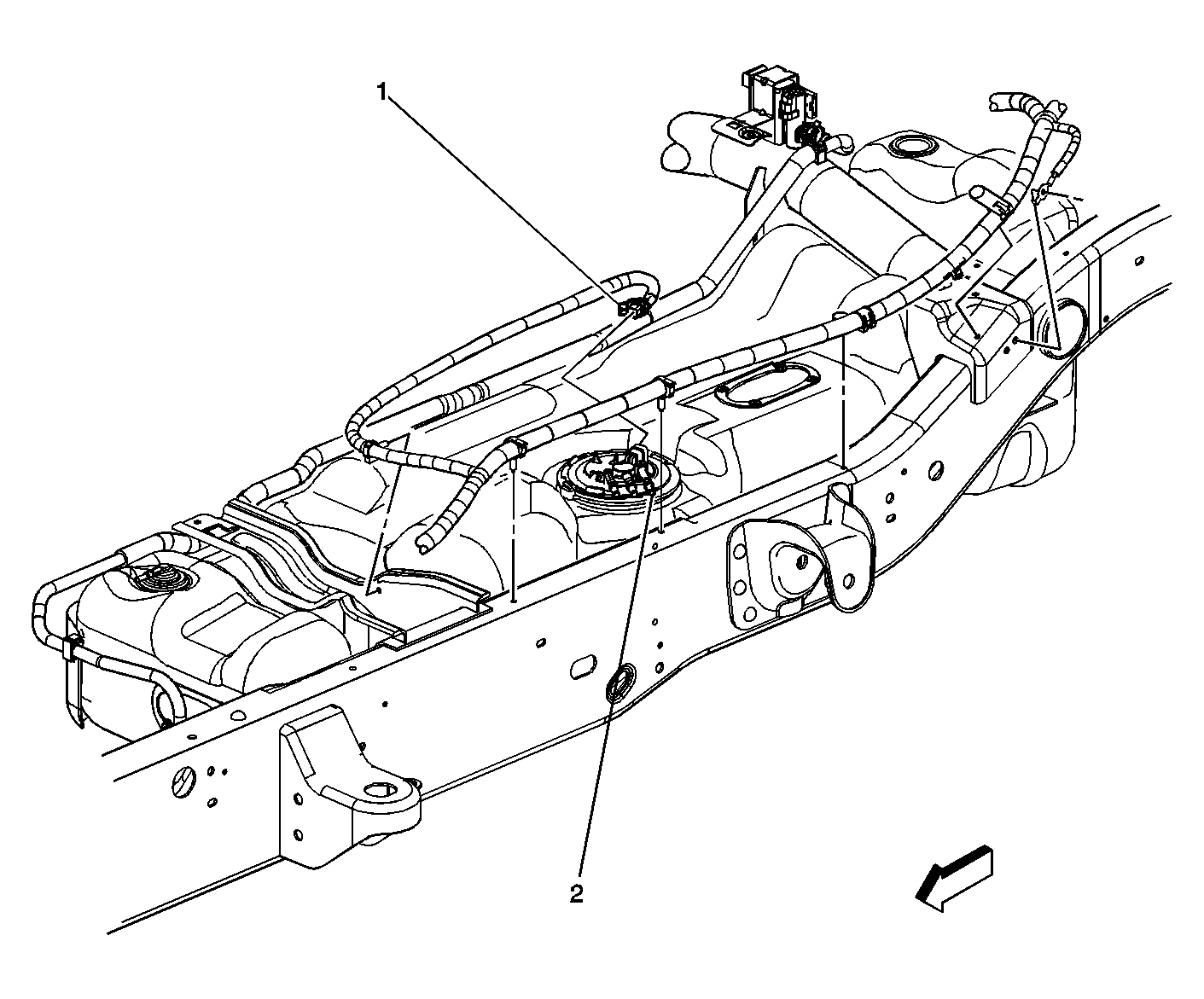

Fig 8: Fuel Pump & Sender Assembly - Secondary Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly-Secondary
2	Fuel Pump and Sender Assembly-Secondary Connector

Fig 9: Engine Oil Pressure (EOP) Sensor Component View (4.8L, 5.3L 6.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Sensor
2	Camshaft Position (CMP) Sensor
3	Camshaft Position (CMP) Sensor Connector

Fig 10: Engine Oil Pressure (EOP) Sensor Component View (8.1L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Connector
2	Exhaust Gas Recirculation (EGR) Valve
3	Crankshaft Position (CKP) Sensor Connector
4	Crankshaft Position (CKP) Sensor
5	Engine Oil Pressure (EOP) Sensor
6	Engine Oil Pressure (EOP) Sensor Connector

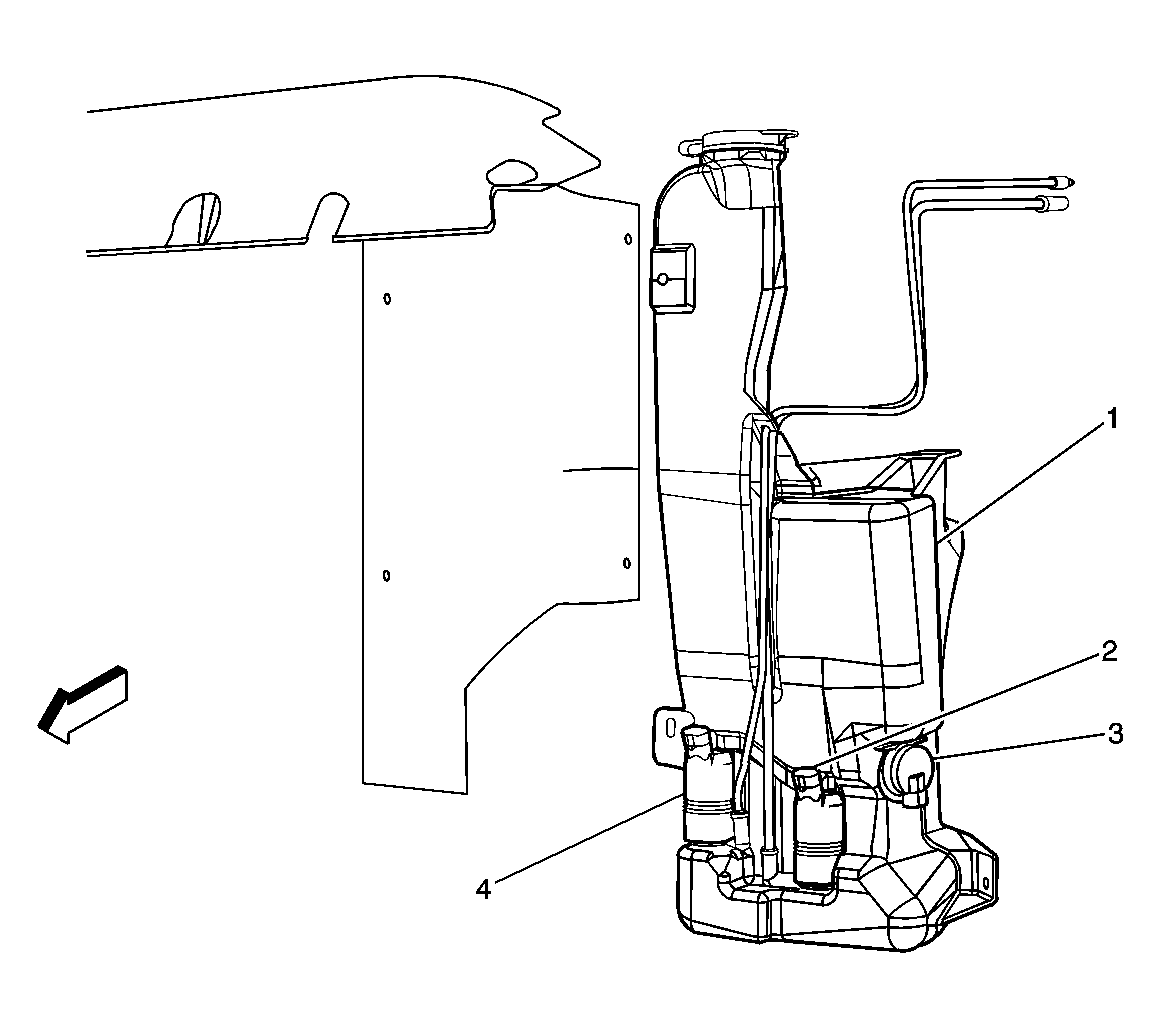

Fig 11: LF Corner Of Vehicle Wiper/Washer Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Reservoir
2	Windshield Washer Fluid Pump-Front
3	Washer Fluid Level Sensor
4	Windshield Washer Fluid Pump-Rear (C25)
