Front Crossmember Bracket Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Support the front crossmember using a jack.

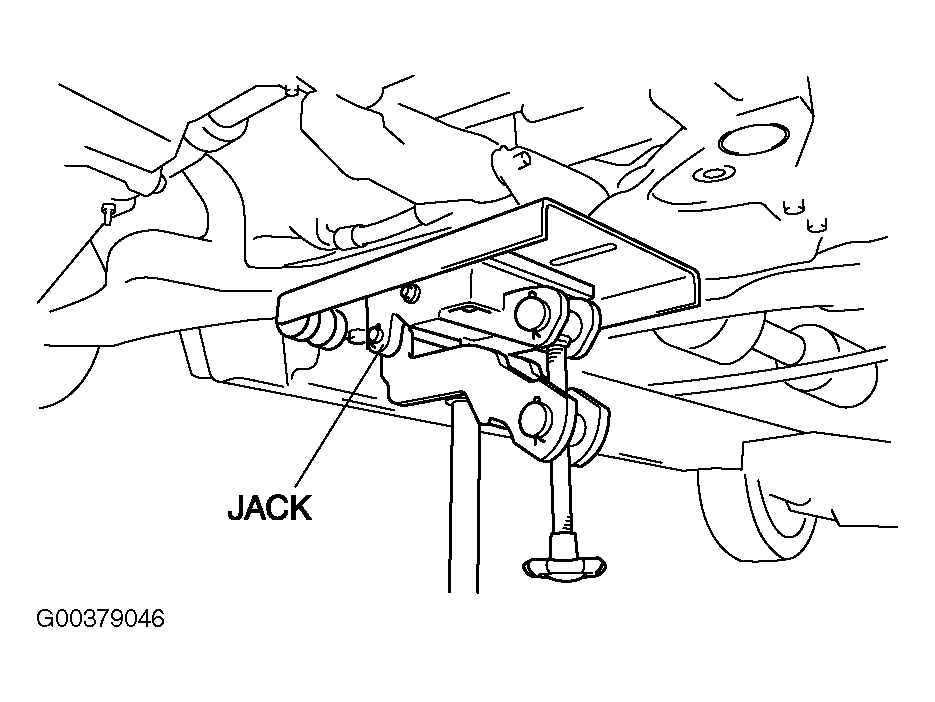

Fig 1: Setting Jack
Courtesy of MAZDA MOTORS CORP.
Remove the front crossmember brackets.
