Data Link Communications Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

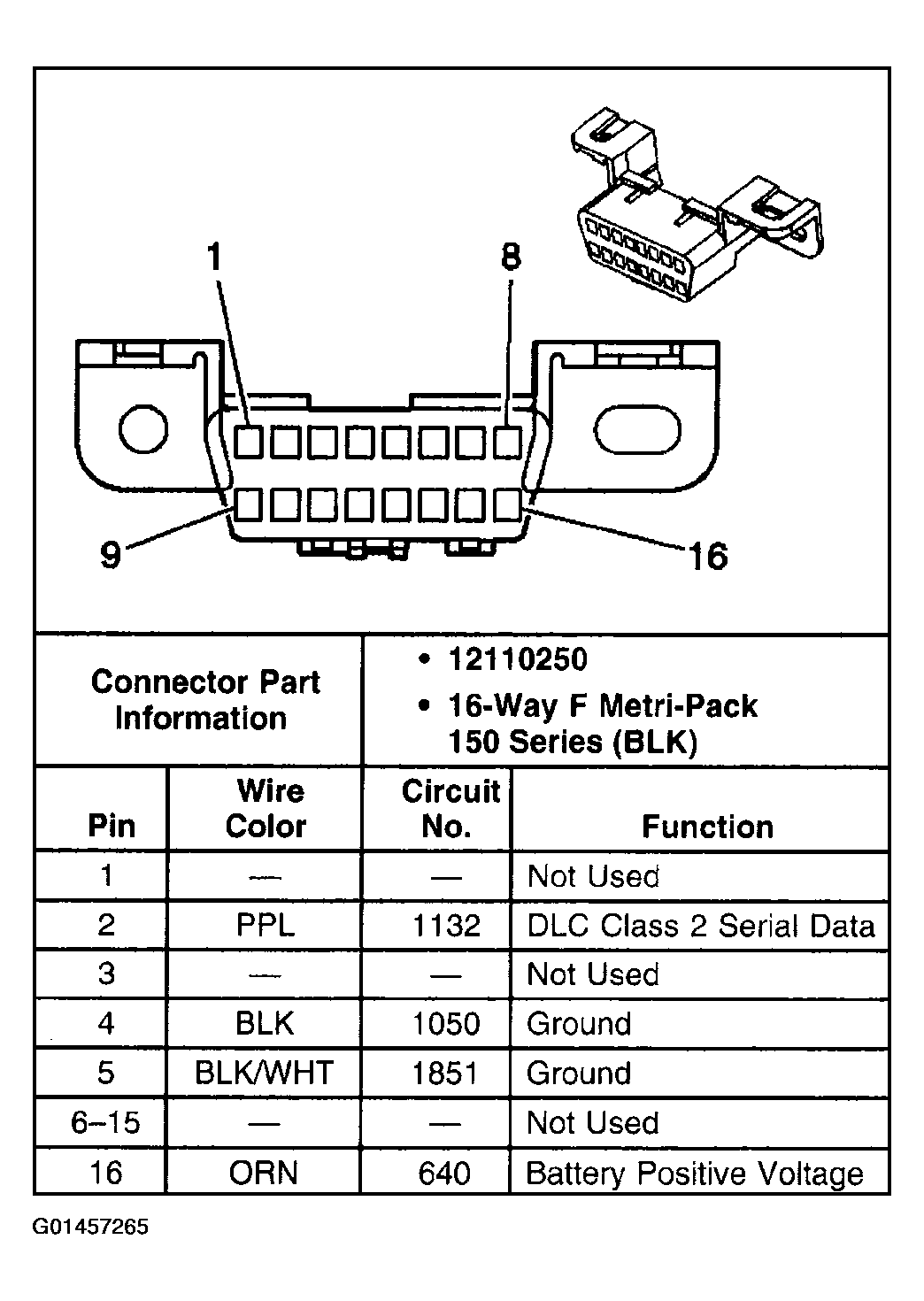

Fig 1: Data Link Connector (DLC)

Courtesy of GENERAL MOTORS CORP.

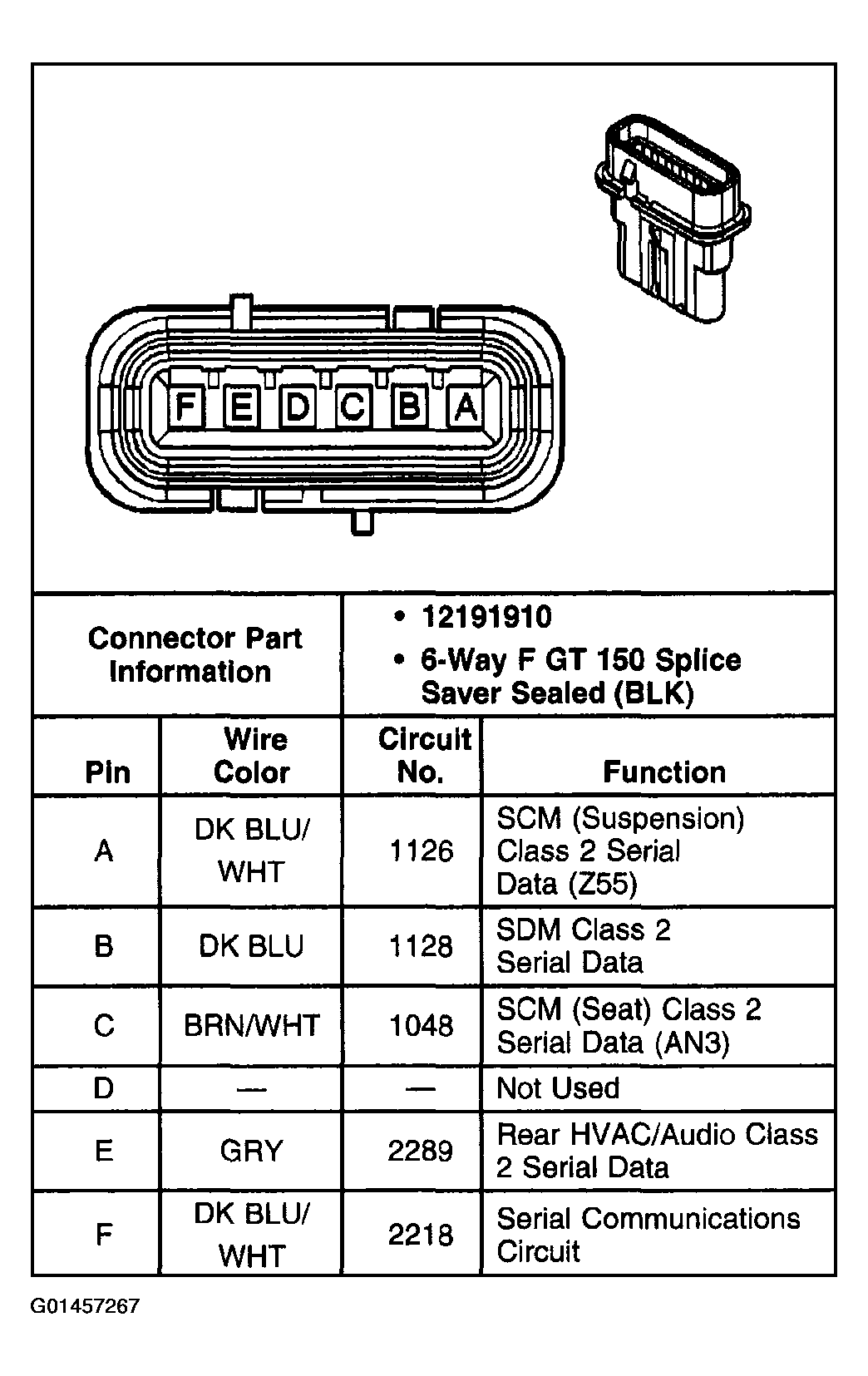

Fig 2: Data Link Communications Connector End Views Splice Pack - SP205

Courtesy of GENERAL MOTORS CORP.

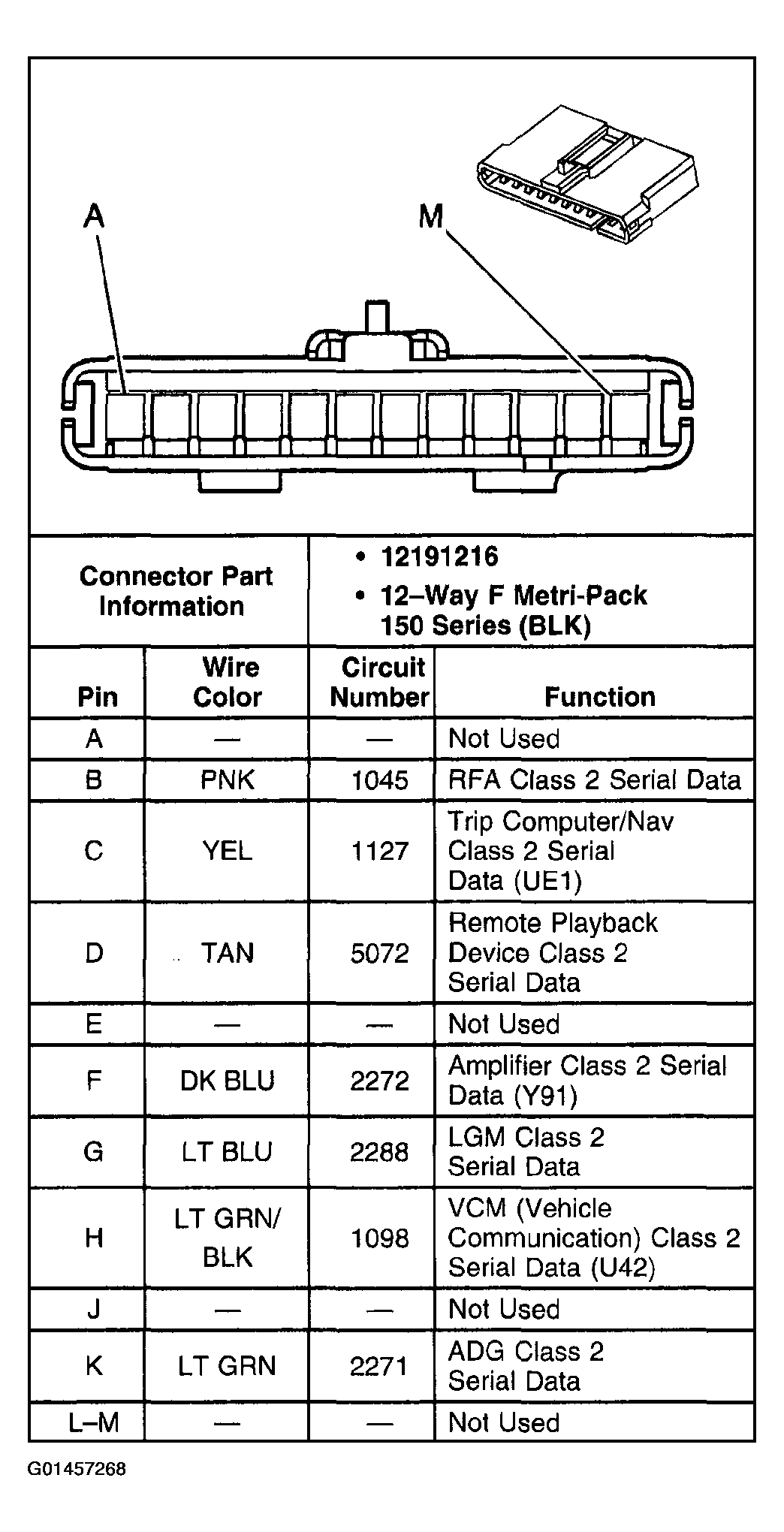

Fig 3: Data Link Communications Connector End Views Splice Pack - SP206

Courtesy of GENERAL MOTORS CORP.

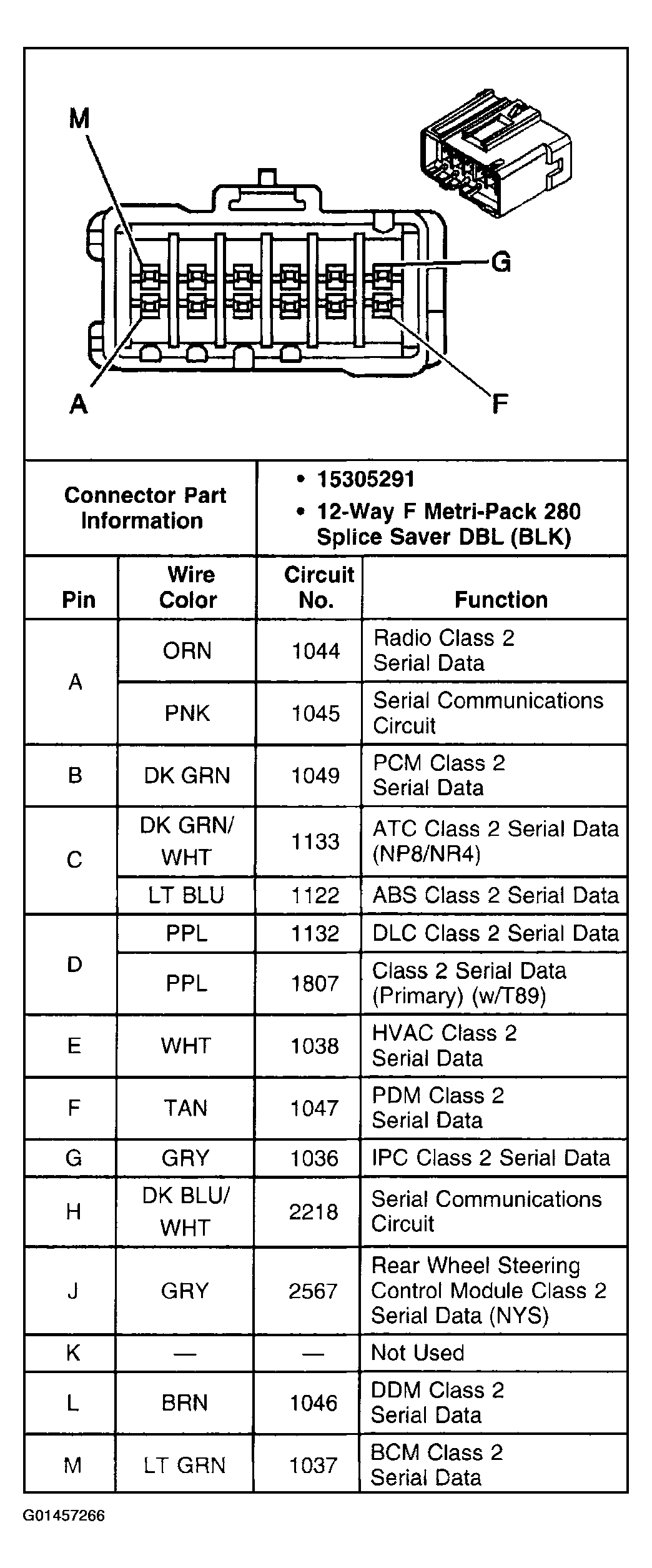

Fig 4: Data Link Communications Connector End Views Splice Pack - SP207

Courtesy of GENERAL MOTORS CORP.
