Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the recliner handle on the side shield.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screw retaining the recliner handle to the trim panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

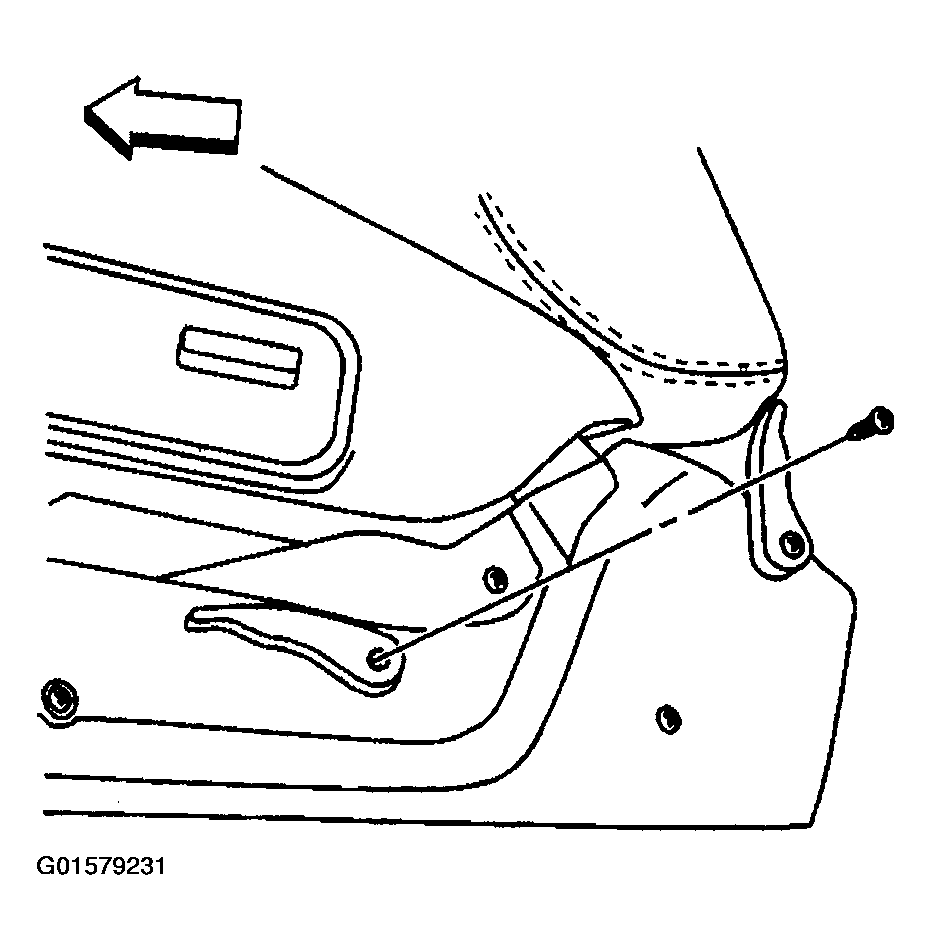

    Fig 1: Front Seat Back Recliner Handle
    G01579231Courtesy of GENERAL MOTORS CORP.
