Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover And Pad Replacement-Rear .

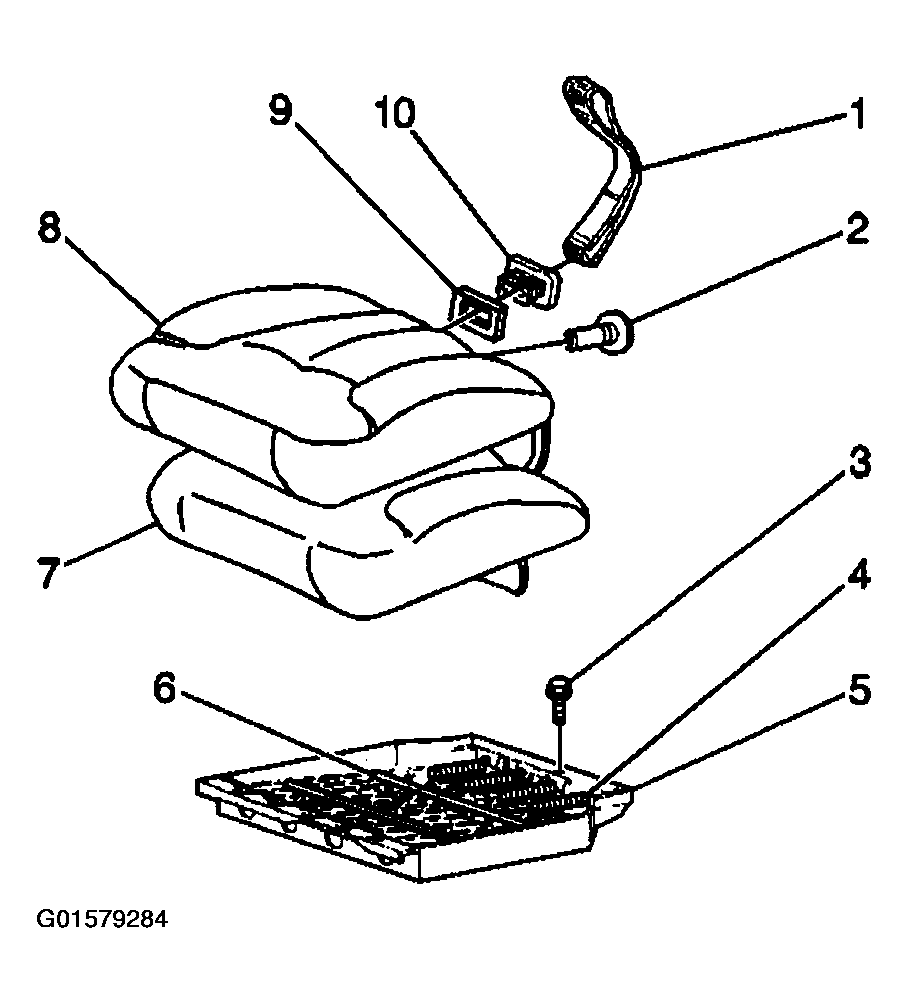

Fig 1: Removing Seat Cushion Trim Cover & Pad
Courtesy of GENERAL MOTORS CORP.
Remove the bolts from the hinge assembly, if equipped with folding seats.
Remove the seat cushion frame (5).

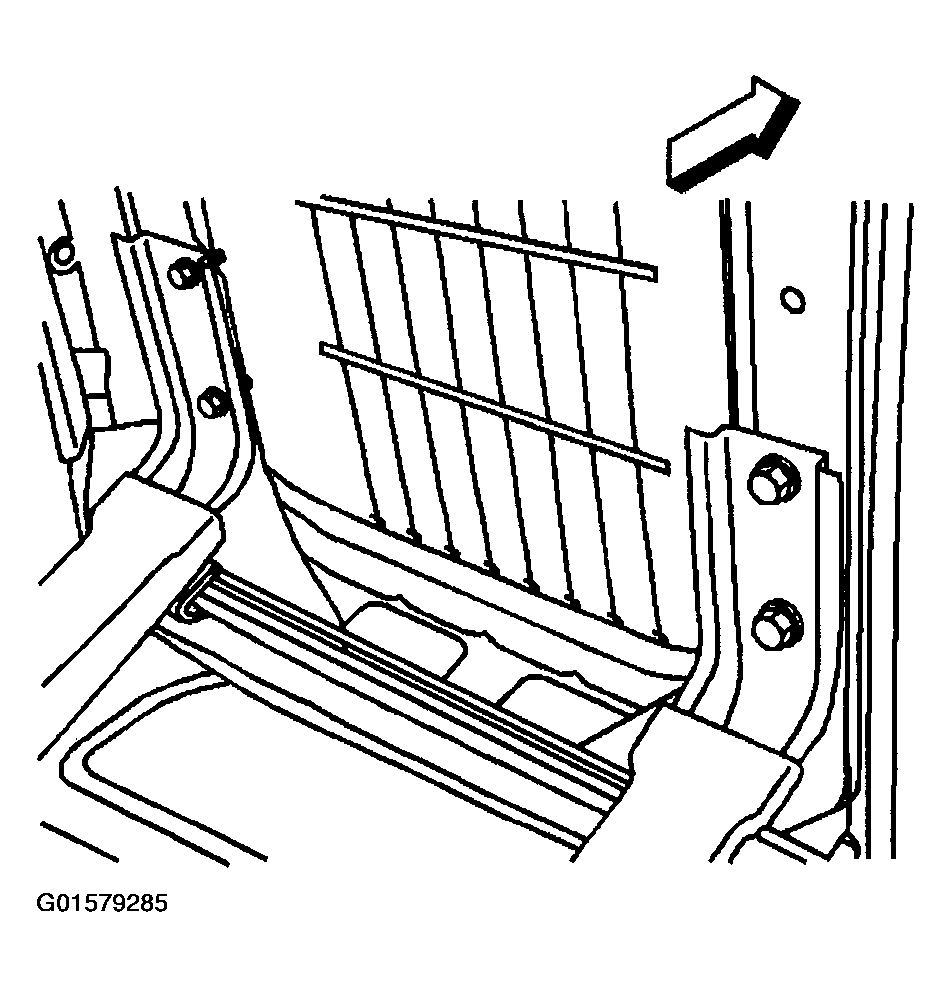

Fig 2: Removing Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.
