Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat in the vehicle.
  2. Connect the electrical harness, if equipped.
    NOTE: Refer to FASTENER NOTICE .
  3. Move the seat to the full forward position in order to install the seat retaining rear bolts (1).

    Tighten

    Tighten the retaining rear bolts to 55 N.m (41 lb ft).

  4. Install the front seat adjuster nut cover (3), if equipped.
  5. Move the seat to the full rearward position and install the seat retaining front nuts (2).

    Tighten

    Tighten the nuts to 55 N.m (41 lb ft).

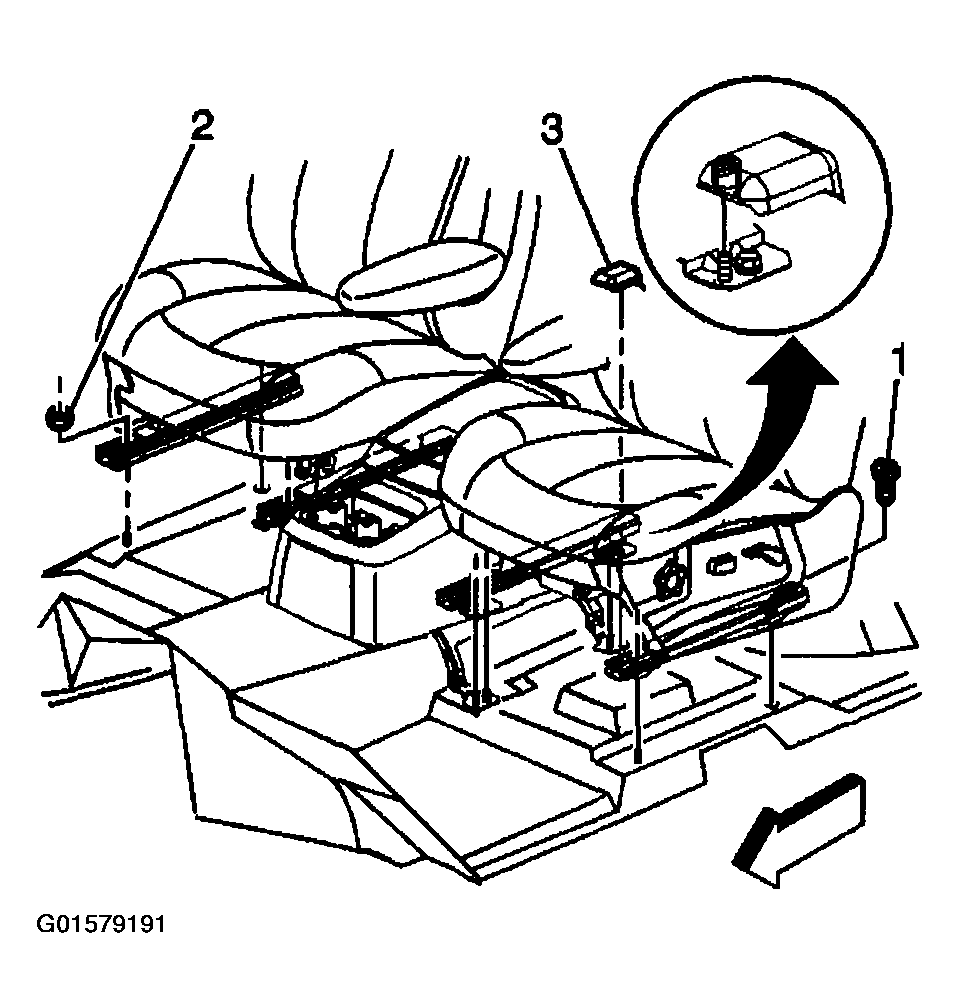

    Fig 1: Front Bucket Seat
    G01579191Courtesy of GENERAL MOTORS CORP.
