Installation Procedure

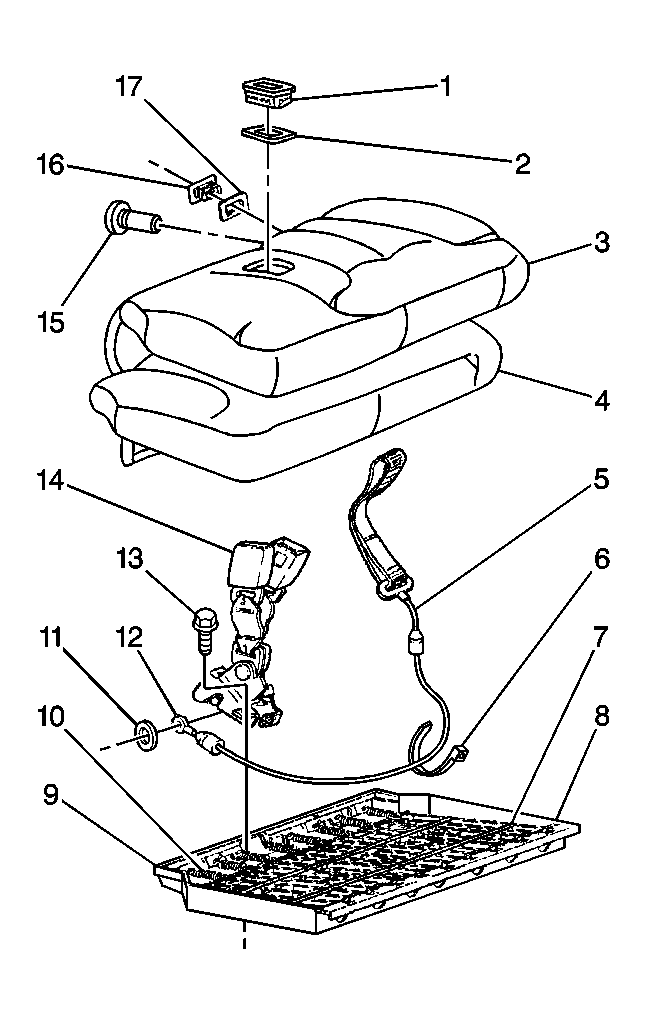

Fig 1: Rear Seat Cushion Cover, Frame & Foam Pad

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the buckle assembly.
Install the bolt (13) that retains the buckle assembly (14) to the seat frame.
Tighten: Tighten the bolts to 53 N.m (39 lb ft).
Install the rear seat cushion and cover. Refer to Seat Cushion Cover and Pad Replacement - Rear (60/40 Split - 50/50 Split) or Seat Cushion Cover and Pad Replacement - Rear (Bench) in Seats.
