Removal Procedure

  1. Remove the upper fan shroud. Refer to Fan Shroud Replacement - Upper (W/O M74) or Fan Shroud Replacement - Upper (W/M74) in Engine Cooling.
  2. Remove the drive belt. Refer to Drive Belt Replacement - Accessory or Drive Belt Replacement - Accessory in Engine Mechanical.

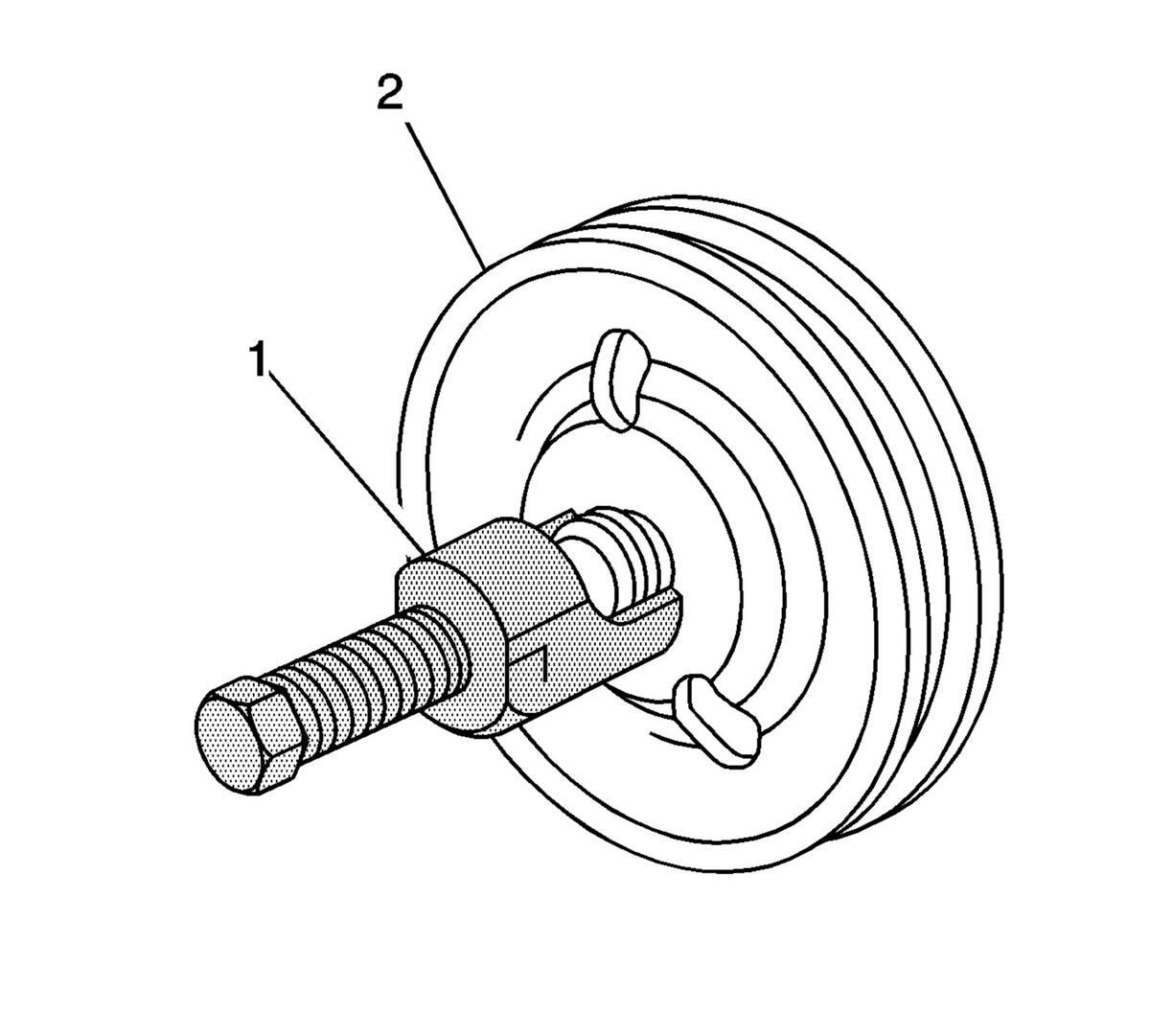

    3. Fig 1: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pump pulley using the J 25034-C  . See Special Tools and Equipment .
