Engine Verification: Notes

The engine verification label is placed in two locations on the right side of the engine.

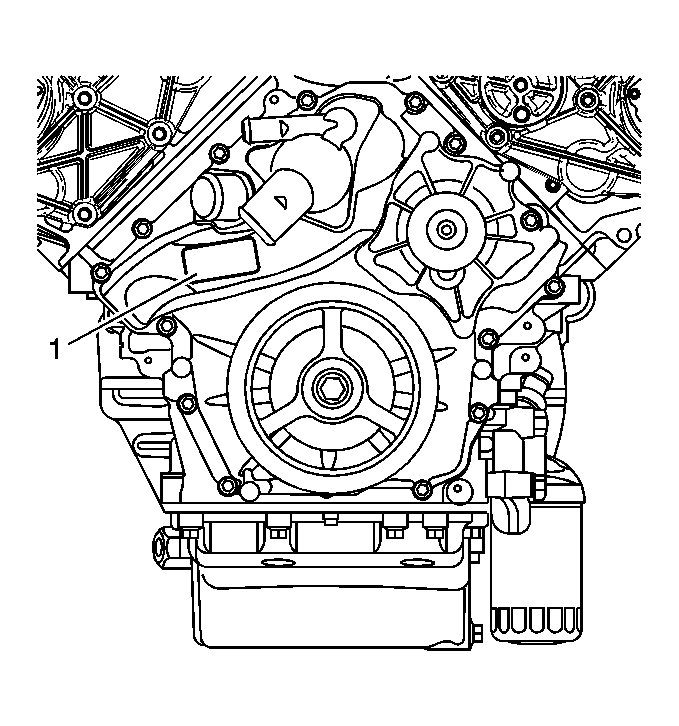

Fig 1: Locating Engine Verification Label & Traceability Label

Courtesy of GENERAL MOTORS CORP.

The engine front cover has an engine verification label (1) and the front of the right camshaft cover has a traceability label (2).

Fig 2: Locating Right Camshaft Cover Engine Verification Label

Courtesy of GENERAL MOTORS CORP.

The rear of the right camshaft cover has an engine verification label (1).

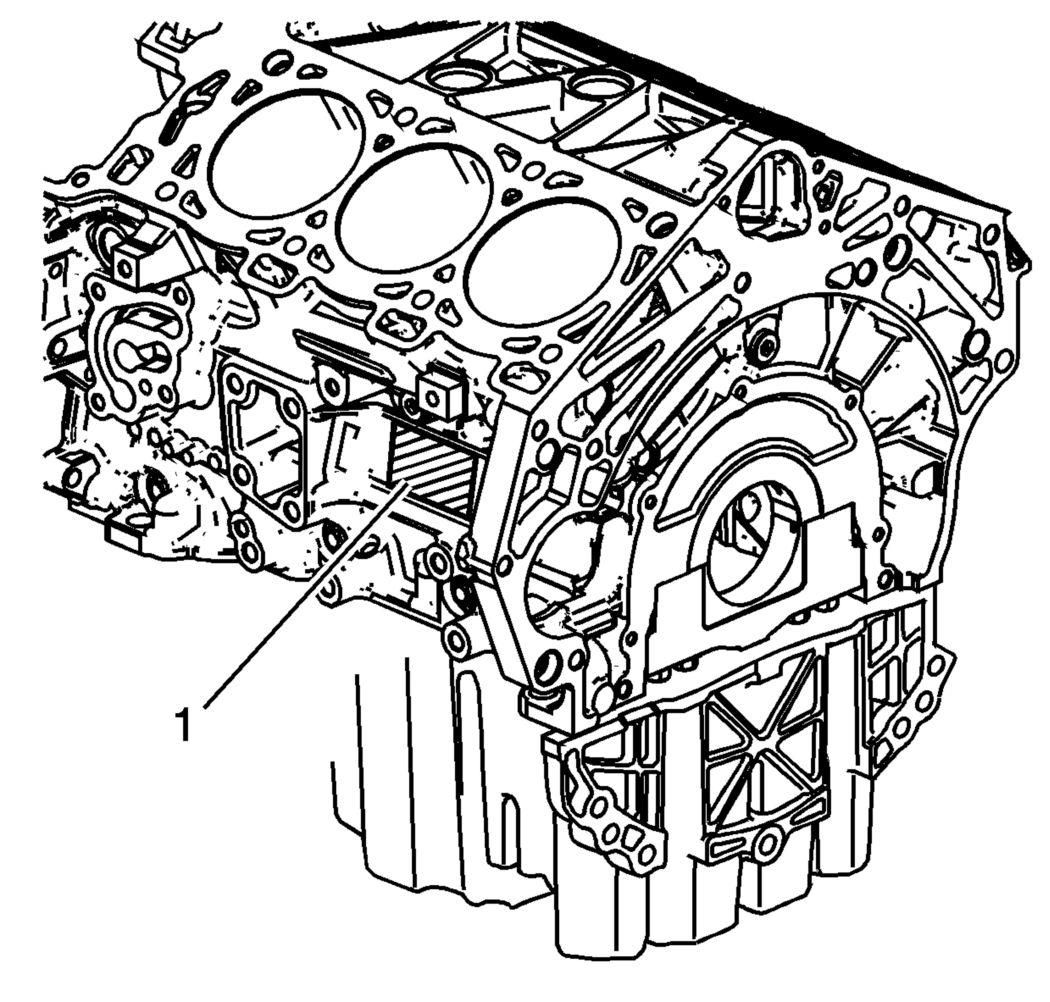

Fig 3: Locating VIN Derivative

Courtesy of GENERAL MOTORS CORP.

The Vehicle Identification Number (VIN) Derivative is located on the block and is a nine digit number stamped or laser etched onto the engine at the vehicle assembly plant. If reading the identification number the following information can be obtained:

• The first digit identifies the vehicle division.
• The second digit is the model year.
• The third digit identifies the assembly plant.
• The fourth through ninth digits are the last six digits of the Vehicle Identification Number (VIN).
