Stationary Windows Connector End Views

Inside Rearview Mirror (ISRVM) Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		917981-2 16-Way M Amp .040/.070 Hybrid (BK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BARE	1782	Drain Wire
3-4	-	-	Not Used
5	GY	1690	Automatic Day/Night Mirror Signal
6-7	-	-	Not Used
8	BK/WH	1051	Ground
9	L-GN	24	Backup Lamp Supply Voltage
10	GY	655	Cellular Microphone Signal (UE1)
11	PU	679	Keypad Signal (UE1)
12	BN	1941	Keypad Supply Voltage
13	PK	1339	Ignition 1 Voltage
14	GY/BK	1798	Keypad Green LED Signal (UE1)
15	PU	1156	Keypad Red LED Signal (UE1)
16	PK	1691	Automatic Day/Night Mirror Low Reference

Rear Window Defogger Grid C1 Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12015306 1-Way F 56 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	BK	850	Ground

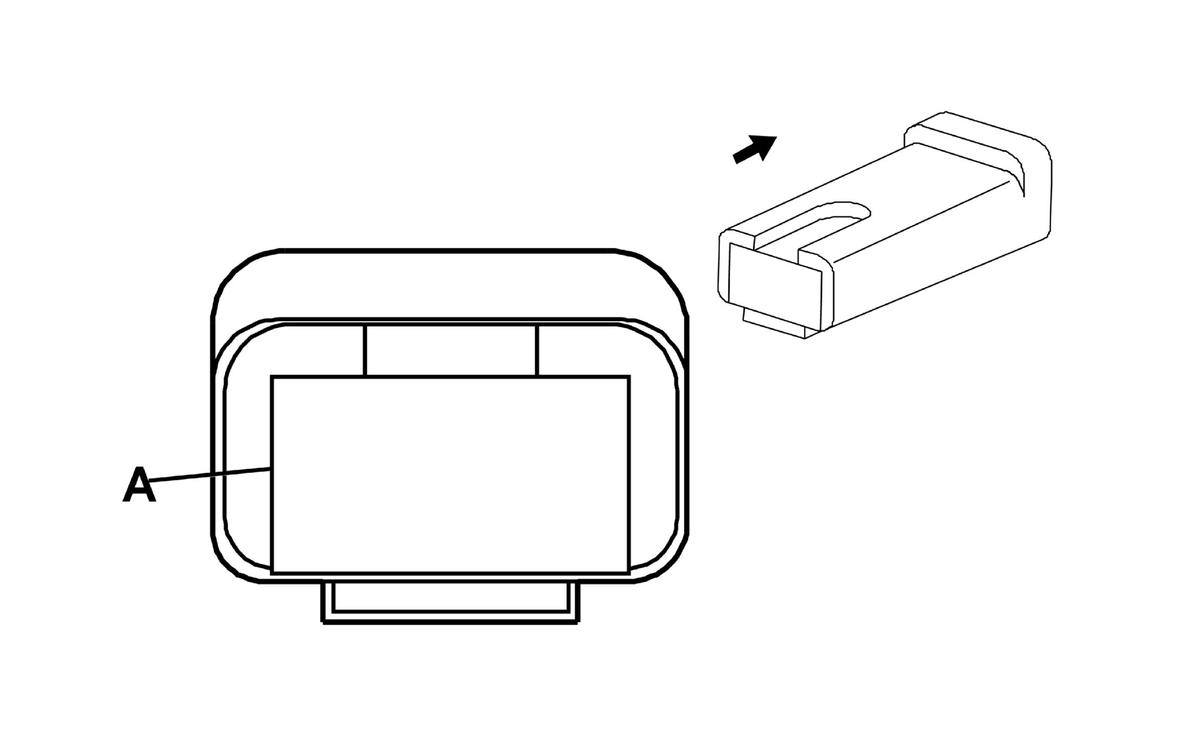

Rear Window Defogger Grid C2 Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12015306 1-Way F 56 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	PU	293	Rear Defog Element Supply Voltage
