Engine Electrical Component Views

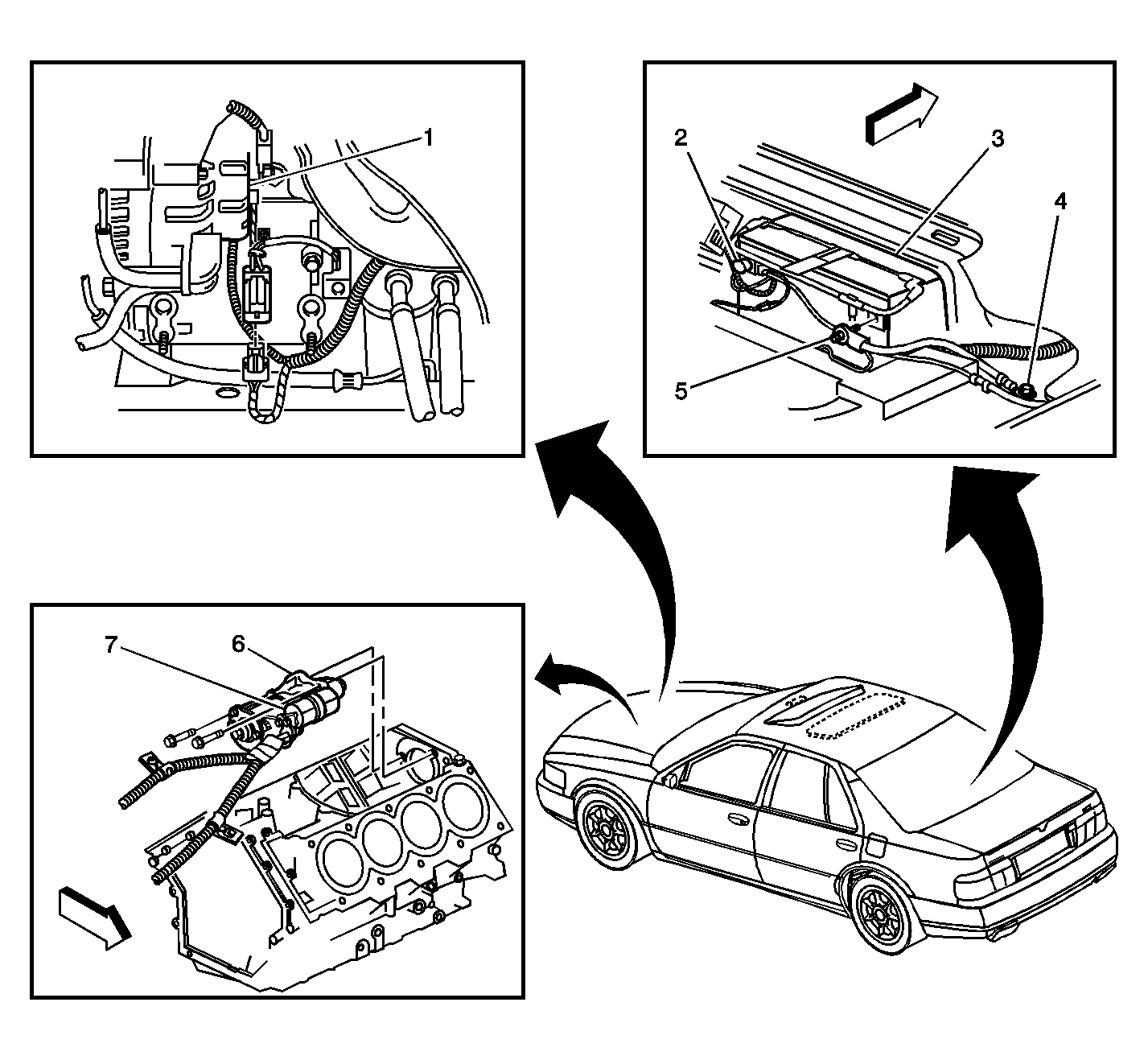

Fig 1: Engine Electrical Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Positive Battery Cable
3	Battery
4	G307
5	Negative Battery Cable
6	Starter Motor
7	Starter Solenoid
