Rear Fuse Block

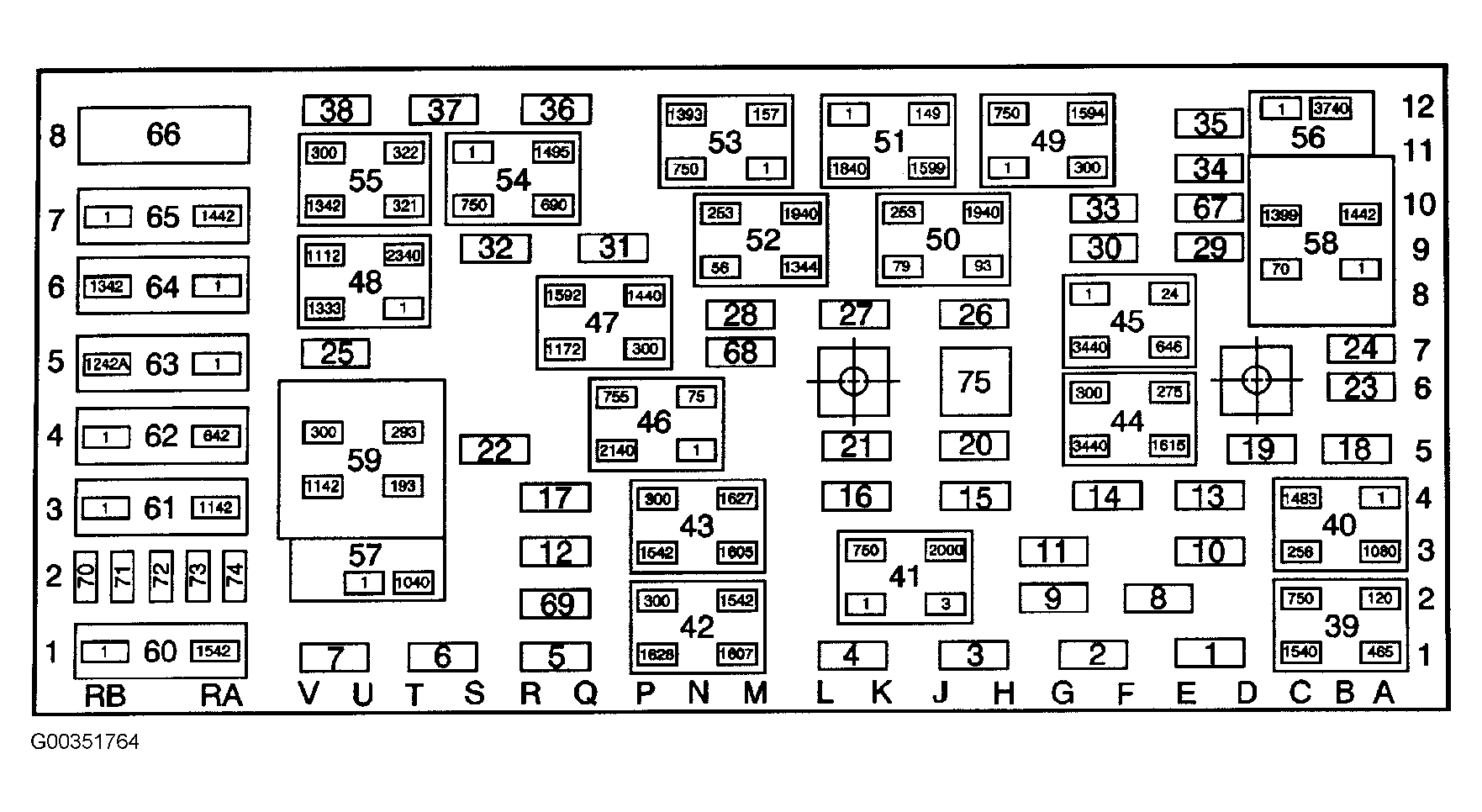

Rear fuse block is located in left rear of the passenger compartment, under the rear seat. See Fig 1.
REAR FUSE BLOCK LEGEND
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | F/PMP | 20A | F/PMP Relay 39 |
| 2 | HVAC BLO Fuse | 30A | Blower Motor Control Processor |
| 3 | MEM T & T Fuse | 10A | Adaptive Seat Lumbar Module - Driver, Adaptive Seat Lumbar Module -Front Passenger, Seat Lumbar Switch - Driver, Memory Seat Module (MSM), Seat Adjuster Switch - Driver, Steering Column Module |
| 4 | SDAR Fuse | 5A | Digital Radio Receiver |
| 5 | DRVMDL Fuse | 10A | Driver Door Module (DDM) |
| 6 | HTDST LR Fuse | 10A | Heated Seat Module - LR |
| 7 | PWR T & T Fuse | 30A | Steering Column Module |
| 8 | SIR Fuse | 15A | Inflatable Restraint Side Impact Module - LF, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Side Impact Module -RF |
| 9 | - | - | Not Used |
| 10 | LP PK R Fuse | 15A | Marker Lamp - RF, Park/Turn Signal Lamp - RF, Tail Lamps - Right, Relay Block - Rear |
| 11 | VENT SOL Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid |
| 12 | IGN 1 Fuse | 10A | TCC/Cruise Release Switch, Instrument Panel Cluster (IPC), Relay Block -Rear (w/UY4), Rear Integration Module (RIM), Turn Signal Switch, Steering Wheel Controls |
| 13 | LP PK L Fuse | 15A | Marker Lamp - LF, Park/Turn Signal Lamp - LF, Tail Lamps - Left, Relay Block - Rear |
| 14 | DIMR Fuse | 10A | Dash Integration Module (DIM), Generator |
| 15 | NAV Fuse | 10A | Traffic Information Receiver (VICS), Radio (U3R, U3S, U3Q, U45) |
| 16 | HTDST LF Fuse | 10A | Heated Seat Module - LF |
| 17 | EXPORT LGT Fuse | 15A | STANDING LP Relay, POSN LP L Relay, POSN LR R Relay, RR FOG LP Relay, DRL Relay |
| 18 | RRDR MDL Fuse | 10A | Left Rear Door Module (LRDM), Right Rear Door Module (RRDM) |
| 19 | STOP LP Fuse | 15A | Stop Lamp Switch |
| 20 | NSBU Fuse | 10A | PARK Relay 44, REVERSE Relay 45 |
| 21 | AUDIO Fuse | 15A | Cellular Telephone Module, Remote Playback Device - CD Changer |
| 22 | RAP Fuse | 20A | RAP Relay 46 |
| 23-24 | - | - | Not Used |
| 25 | PASSMDL Fuse | 10A | Front Passenger Door Module (FPDM) |
| 26 | BODY Fuse | 15 A | F/TNKDR REL Relay 50, TRK REL Relay 52 |
| 27 | INT LP Fuse | 10A | INT LP Relay 51 |
| 28 | RR BLO Fuse | 10A | RR BLO Relay 47 |
| 29 | IGN SW Fuse | 15A | Ignition Switch, Dash Integration Module (DIM), Rear Integration Module (RIM), Remote Control Door Lock Receiver (RCDLR) |
| 30 | - | - | Not Used |
| 31 | HTDST RF Fuse | 10A | Heated Seat Module - RF |
| 32 | CVRTD Fuse | 10A | Automatic Level Control (ALC) Module, Electronic Suspension Control (ESC) Module, DAMPER Relay 48 (F45) |
| MRCVRTD Fuse | 20A | Electronic Suspension Control (ESC) Module (F55) | |
| 33 | HVAC Fuse | 10A | Recirculation Actuator, Air Temperature Actuator - Left, Air Temperature Sensor - Inside, Mode Actuator, Air Temperature Actuator - Right, Mode Actuator - Auxiliary, HVAC Control Assembly - Auxiliary, Reverse Lockout Solenoid |
| 34 | IGN 3 RR Fuse | 10A | Adaptive Seat Lumbar Module - Driver, Adaptive Seat Lumbar Module -Front Passenger, ALC Module, CVRSS Module, Instrument Panel Integration Module (IPM), Heated Seat Module - Driver, Heated Seat Module - LR, Heated Seat Module - Front Passenger, Heated Seat Module -RR |
| 35 | ABS Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 36 | TSIG/HAZ Fuse | 15A | Hazard Switch |
| 37 | HTDST RR Fuse | 10A | Heated Seat Module - RR |
| 38 | DIM Fuse | 10A | Dash Integration Module (DIM), Generator |
| 39 | F/PMP Fuel Pump Relay | - | Fuel Pump Assembly, Powertrain Control Module (PCM) |
| 40 | PRK LP Relay | - | DIMR Fuse 14, LP PK L Fuse 13, LP PK R Fuse 10 |
| 41 | IGN 1 Relay | - | IGN 1 Fuse 12, SIR Fuse 8, VENT SOL Fuse 11 |
| 42 | PARK BRK A Relay | - | Park Brake Release Switch |
| 43 | PARK BRK B Relay | - | Park Brake Release Switch |
| 44 | PARK Relay | - | Stop Lamp Switch |
| 45 | REVERSE Relay | - | Backup Lamp - Left, Backup Lamp - Right, Rear Object Sensor Control Module, Inside Rearview Mirror |
| 46 | RAP Relay | - | Sunroof Module (w/CF5) |
| 47 | RR BLO Relay | - | Blower Motor - Auxiliary |
| 48 | - | - | Not Used |
| 49 | IGN 3 Relay | ABS Fuse 35, HVAC Fuse 33, IGN 3 RR Fuse 34 | |
| 50 | F/TNKDR REL Relay | Fuel Door Lock Release Switch | |
| 51 | INT LP Relay | - | Footwell Courtesy Lamp - Left, Door Courtesy Lamp - LF, Door Courtesy Lamp - RF, I/P Compartment Lamp, Door Courtesy Lamp - LR, Door Courtesy Lamp - RR, Overhead Console, Reading Lamp - Left, Reading Lamp - Right, Footwell Courtesy Lamp - Right, Rear Compartment Lamp, Vanity Mirror Lamp - Left, Vanity Mirror Lamp - Right, Rear Integration Module (RIM) |
| 52 | TRK REL Relay | - | Rear Compartment Lid Release Switch |
| 53 | FRT CTSY Relay | - | Footwell Courtesy Lamp - Left, Footwell Courtesy Lamp - Right, Door Courtesy Lamp - LF, Door Courtesy Lamp - RF, Door Courtesy Lamp - LR, Door Courtesy Lamp - RR, Overhead Console |
| 54 | RR CTSY Relay | - | Reading Lamp Switch - Left, Reading Lamp Switch - Right |
| 55 | ELC Relay | - | Automatic Level Control (ALC) Compressor |
| 56 | PWR SEAT Circuit Breaker | 30A | Seat Lumbar Switch - Driver, Seat Lumbar Switch - Front Passenger, Memory Seat Module (MSM), Seat Adjuster Switch - Driver, Seat Adjuster Switch - Front Passenger |
| 57 | PWR WDO Circuit Breaker | 30A | Driver Door Module (DDM), Front Passenger Door Module (FPDM), Left Rear Door Module (LRDM), Right Rear Door Module (RRDM) |
| 58 | CIGAR Relay | - | AUX PWR Fuse 22 (Underhood Fuse Block), C/LTR Fuse 23 (Underhood Fuse Block) |
| 59 | RR DEFOG Relay | - | Rear Window Defogger Grid |
| 60 | PARK BRK Fuse | 20A | PARK BRK A Relay 42, PARK BRK B Relay 43 |
| 61 | RR DEFOG Fuse | 40A | RR DEFOG Relay 59 |
| 62 | EXPORT BRK Fuse | 25A | Power Brake (P/B) Booster Pump Relay |
| 63 | AUDIO AMP Fuse | 30A | Radio, Cellular Telephone Module, Remote Playback Device - CD Changer |
| 64 | ELC Fuse | 30A | ELC Relay 55, Automatic Level Control (ALC) Compressor |
| 65 | CIGAR Fuse | 40A | CIGAR Relay 58 |
| 66 | - | - | Not Used |
| 67-75 | - | - | Spare Fuses |
