Steering Column Fuse Block

Steering column fuse block is located in left front of the passenger compartment, near the base of the steering column. See Fig 1.

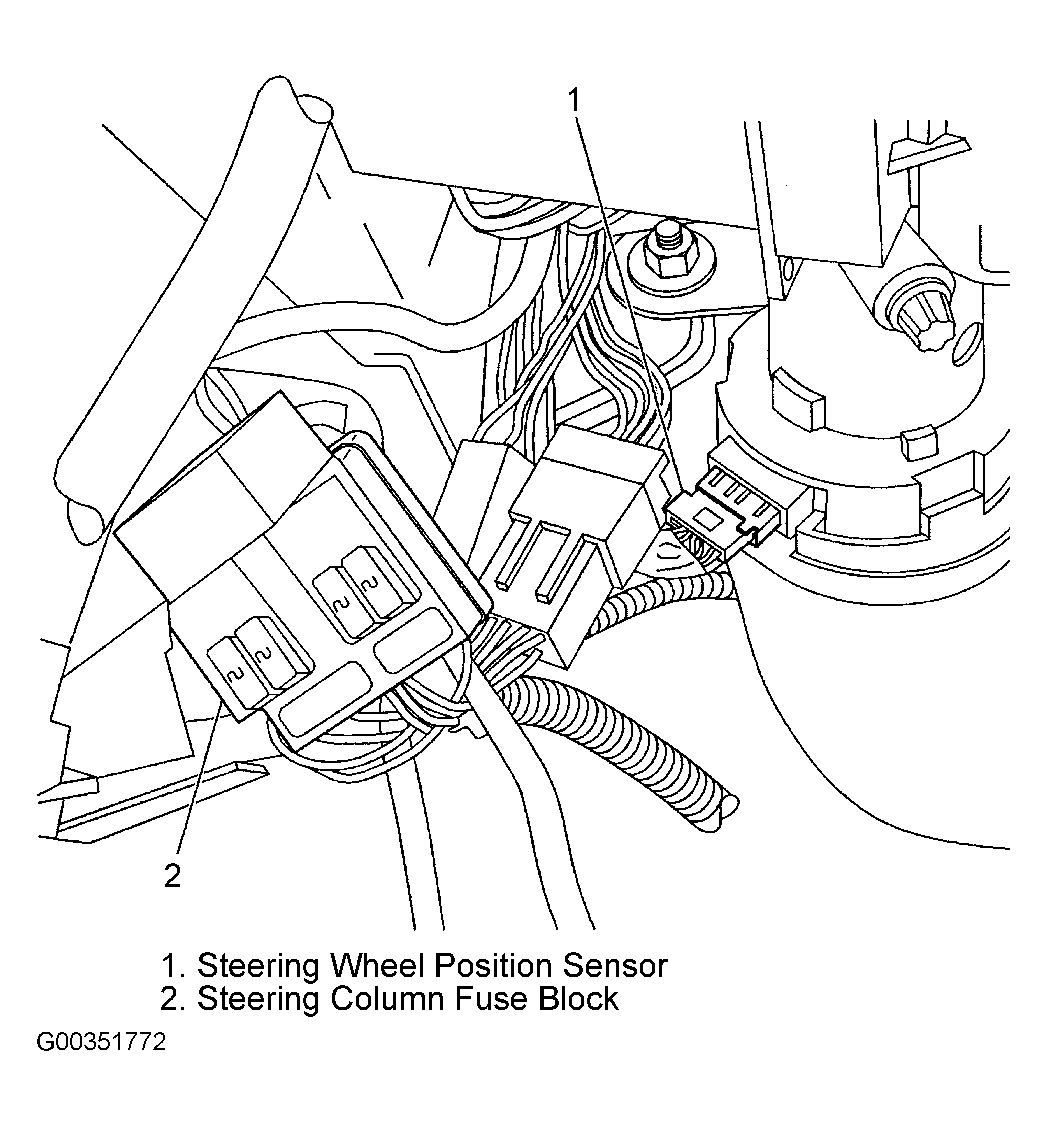

Fig 1: Locating Steering Column Fuse Block

Courtesy of GENERAL MOTORS CORP.

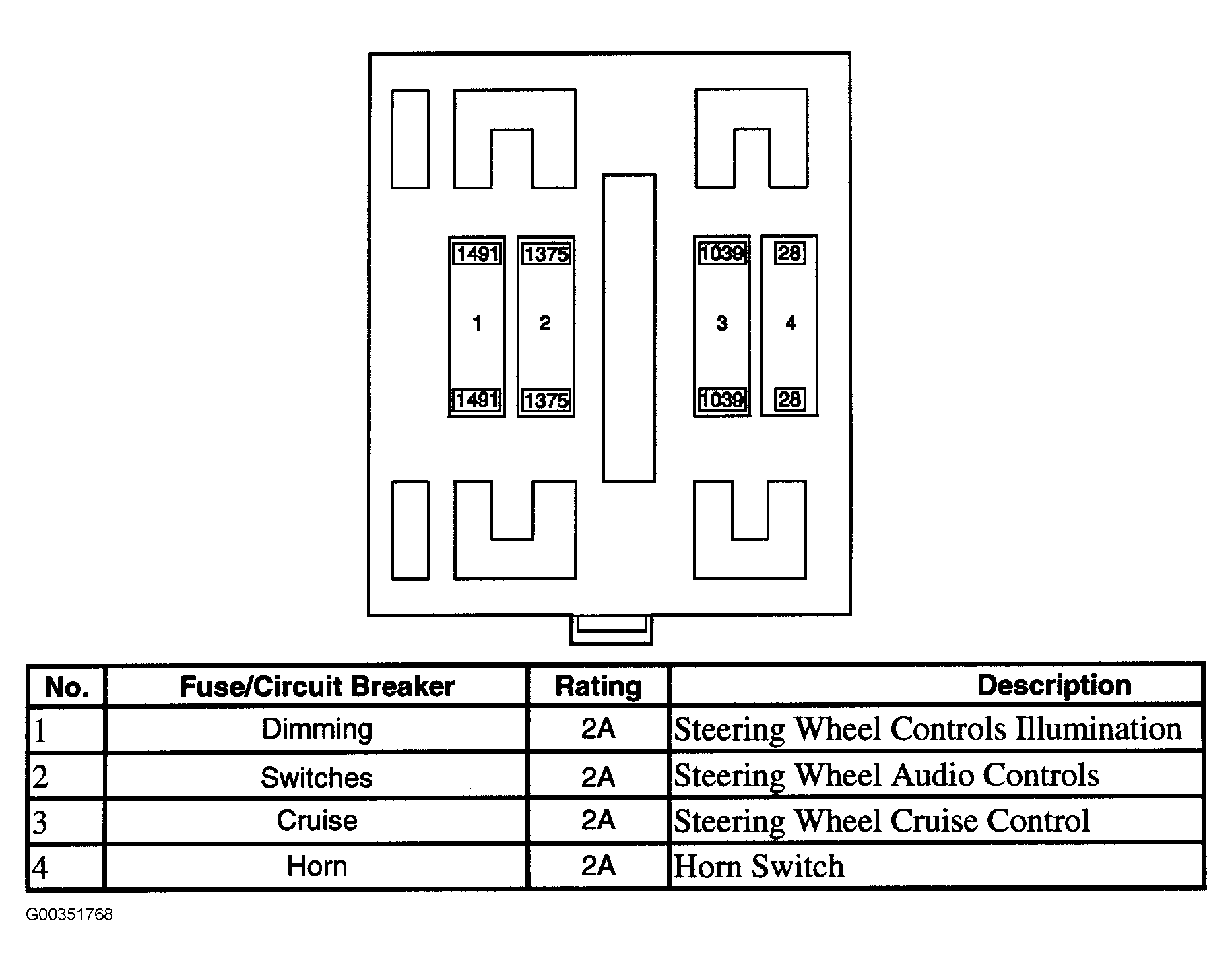

Fig 2: Identifying Steering Column Fuse Block Components & Legend

Courtesy of GENERAL MOTORS CORP.
