UNDERHOOD Fuse Block

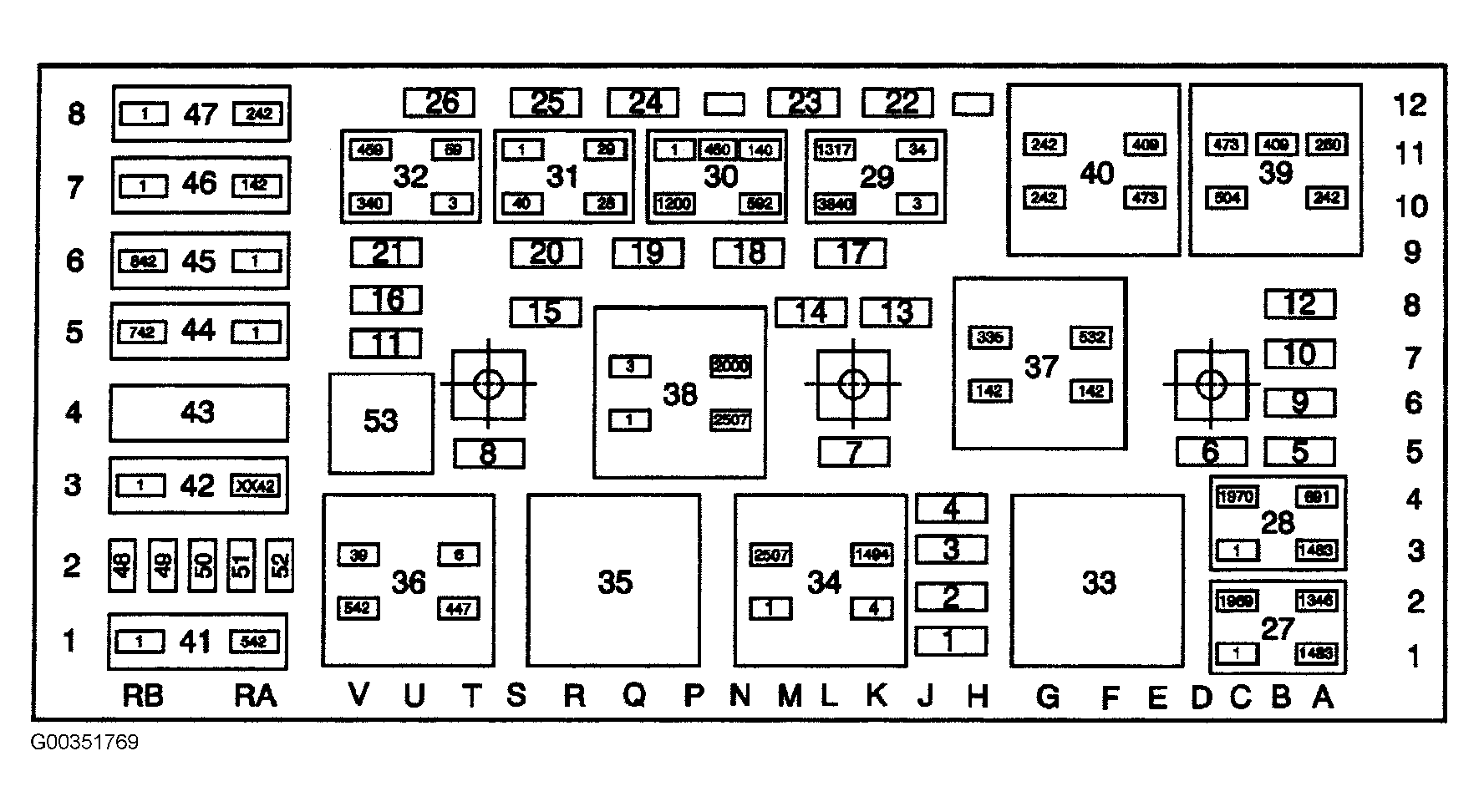

Underhood fuse block is located in right side of the engine compartment, near the power steering pump. See Fig 1.
UNDERHOOD FUSE BLOCK LEGEND
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | ALDL Fuse | 10A | Data Link Connector (DLC), Valet Switch |
| 2 | ACCY Fuse | 10A | Outside Moisture Sensor, Windshield Wiper/Washer Switch |
| 3 | WSW Fuse | 30A | Windshield Wiper Motor |
| 4 | - | - | Not Used |
| 5 | HDLOBML Fuse | 15A | Headlamp - Low Beam - Left |
| 6 | HDLOBMR Fuse | 15A | Headlamp - Low Beam - Right |
| 7 | I/P Fuse | 15A | Ignition Key Cylinder Lamp, Instrument Panel Cluster (IPC), Instrument Panel Integration Module (IPM) |
| 8 | PCM BATT Fuse | 10A | Powertrain Control Module (PCM), Theft Deterrent Module |
| 9 | HDHIBMR Fuse | 10A | Headlamp - High Beam - Right |
| 10 | HDHIBML Fuse | 10A | Headlamp - High Beam - Left |
| 11 | IGN 1 Fuse | 10A | Evaporative Emissions (EVAP) Canister Purge Solenoid, Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor |
| 12 | Fog Fuse | 10A | FOG LP Relay 29 |
| 13 | TRANS Fuse | 10A | 1 - 2 Shift Solenoid (1 - 2 SS) Valve, 2 - 3 Shift Solenoid (2 - 3 SS) Valve, Torque Converter Clutch (TCC) Solenoid Valve |
| 14 | CR CONT Fuse | 10A | Cruise Control Module |
| 15 | COIL MDL Fuse | 20A | Ignition Control Module (ICM) Bank 1, Ignition Control Module (ICM) Bank 2 |
| 16 | INJR2 Fuse | 10A | Fuel Injector 2, Fuel Injector 3, Fuel Injector 5, Fuel Injector 8 |
| 17-18 | - | - | Not Used |
| 19 | PCM IGN Fuse | 20A | Powertrain Control Module (PCM) |
| 20 | OXY SENS Fuse | 10A | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 21 | INJR1 Fuse | 10A | Fuel Injector 1, Fuel Injector 4, Fuel Injector 6, Fuel Injector 7 |
| 22 | AUX PWR Fuse | 20A | Auxiliary Power Outlet |
| 23 | C/LTR Fuse | 20A | Cigar Lighter, Cigar Lighter - Rear |
| 24 | DRL Fuse | 15A | DRL Relay 30, FOG LP Relay 29 |
| 25 | HORN Fuse | 15A | HORN Relay 31 |
| 26 | AC CLU Fuse | 15A | A/C CLU Relay 32 |
| 27 | HDLP HI BM Relay | - | HDHIBML Fuse 10, HDHIBMR Fuse 9 |
| 28 | HDLP LO BM Relay | - | HDLOBML Fuse 5, HDLOBMR Fuse 6 |
| 29 | FOG LP Relay | - | Fog Lamp - LF, Fog Lamp - RF |
| 30 | DRL Relay | - | Headlamp - High Beam - Left, Headlamp - High Beam - Right |
| 31 | HORN Relay | - | Horn - A Note, Horn - F Note |
| 32 | A/C CLU Relay | - | A/C Compressor Clutch |
| 33 | - | - | Not Used |
| 34 | ACCY Relay | - | ACCY Fuse 2, WSW Fuse 3 |
| 35 | - | - | Not Used |
| 36 | START 1 Relay | - | Starter Solenoid |
| 37 | COOLFAN 1 Relay | - | Series circuit function-supplies voltage through the LH cooling fan motor to the RH cooling fan motor for low speed operation Parallel circuit function-supplies voltage to the LH cooling fan motor for high speed operation |
| 38 | IGN 1 Relay | - | INJR1 Fuse 21, INJR2 Fuse 16, OXY SEN A Fuse, OXY SEN B Fuse, DIS Fuse, CR CONT Fuse, IGN 1 Fuse, PCM IGN Fuse |
| 39 | COOL FAN S/P Relay | - | Series circuit function-connects the LH and RH cooling fan motor circuits together for low speed operation Parallel circuit function-connects the LH cooling fan motor to ground for high speed operation |
| 40 | COOLFAN 2 Relay | - | Parallel circuit function-supplies voltage to the RH cooling fan motor for high speed operation |
| 41 | START Circuit Breaker | 30A | START 1 Relay 36 |
| 42 | HDLP WASH Circuit Breaker | 30A | Headlamp Washer Pump Motor (Export) |
| 43 | - | - | Not Used |
| 44 | ABS Fuse | 50A | Electronic Brake Control Module (EBCM) |
| 45 | AIR Pump Fuse | 50A | Secondary Air Injection Pump, Secondary Air Injection Relay |
| 46 | COOL FAN 1 Fuse | 30A | COOL FAN 1 Relay 37 |
| 47 | COOL FAN 2 Fuse | 30A | COOL FAN 2 Relay 40, COOL FAN S/P Relay 39 |
| 48-52 | - | - | Spare Fuse |
| 53 | - | - | Fuse Puller |
