Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of I/P, I/P Module, Connector & Fasteners
    GM427782Courtesy of GENERAL MOTORS CORP.
  1. When installing the I/P module (3) do not damage the pigtail and the connector (4).
  2. Route the I/P module pigtail (4) down through the I/P (1).
  3. Install the I/P module (3) to the I/P (1).
  4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the mounting fasteners (2) to the inflatable restraint I/P module.

    Tighten:  Tighten fasteners to 22 N.m (16 lb ft).

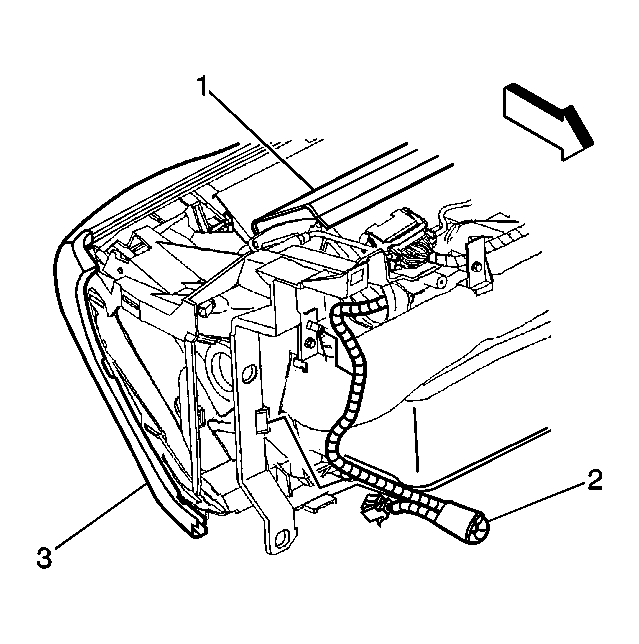

  6. Fig 2: View Of I/P & Module Yellow Connector
    GM464929Courtesy of GENERAL MOTORS CORP.
  7. Route the I/P module wiring harness (2) in place to secure the yellow connector clip to the I/P (3).
  8. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper (Standard Models) or Trim Pad Replacement - Instrument Panel (I/P) Upper (WC2/WC8) in Instrument Panel, Gages and Console.
  9. Fig 3: View Of I/P, Module Yellow Connector & CPA
    GM464940Courtesy of GENERAL MOTORS CORP.
  10. Clip the I/P module yellow connector (2) to the I/P bracket (3).
  11. Install the I/P module yellow connector (2) to the vehicle harness yellow connector (1).
  12. Install the CPA (4) to the I/P module connector (2).
  13. Install the right insulator panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  14. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 5 .
  15. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
