Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

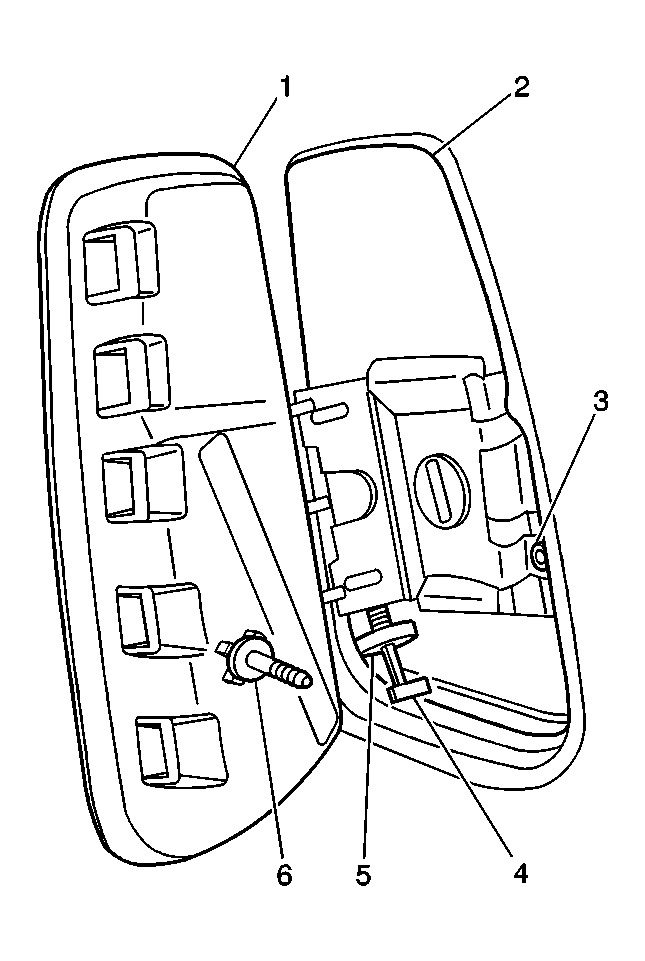

Fig 1: View Of Side Impact Inflator Module & Components

GM457188

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: After a deployment or replacement of the inflatable restraint side impact module, the module retainer (6) must be replaced in order to insure proper inflator module positioning.

Install a new retainer (6) to the side impact inflator module (1).
Connect the electrical connector (5) to the side impact inflator module (1).
Install the CPA (4) to the electrical connector (5) of the side impact inflator module.
Install the side impact inflator module (1) to the seat (2).

Fig 2: View Of Top & Bottom Side Impact Inflator Module Fasteners

GM457186

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the two fasteners (1) to the side impact inflator module.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).

Fig 3: View Of Side Air Bag Fasteners & Foam

GM669295

Courtesy of GENERAL MOTORS CORP.

Install the foam (1) that covers the side air bag fasteners (2).

Fig 4: View Of Seat Back Cover J Channels

GM669299

Courtesy of GENERAL MOTORS CORP.

Install the J channel (1) to the seat frame.

Fig 5: View Of Seat & Seat Back Trim Panel

GM513377

Courtesy of GENERAL MOTORS CORP.

Install the seat back trim panel (2) to the seat (1). Refer to Seat Back Trim Replacement - Front in Seats.
Return the seat to the original position.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
