Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the module to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the retaining screws.
Tighten: Tighten the screws to 6 N.m (54 lb in).
Connect the wire connectors.

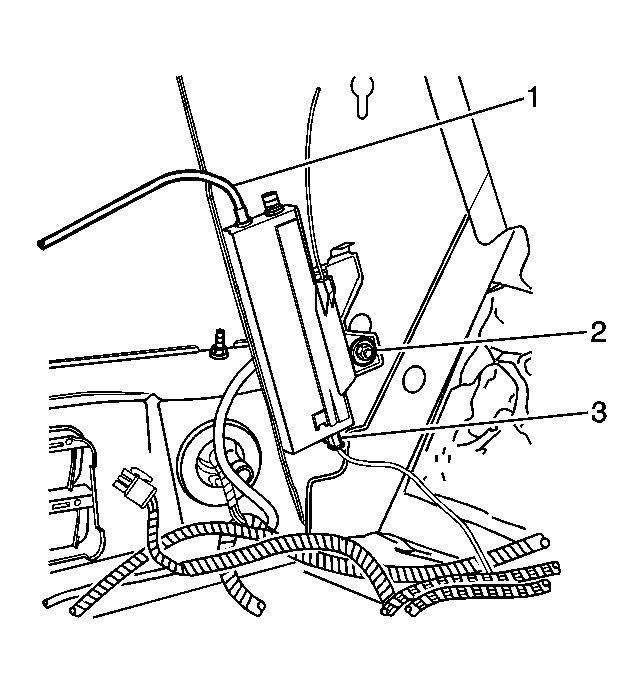

Fig 1: View Of Antenna Module & Components (WC2/WC8)

Courtesy of GENERAL MOTORS CORP.

Install the compartment side trim panel. Refer to Compartment Side Trim Replacement - LH Rear .
