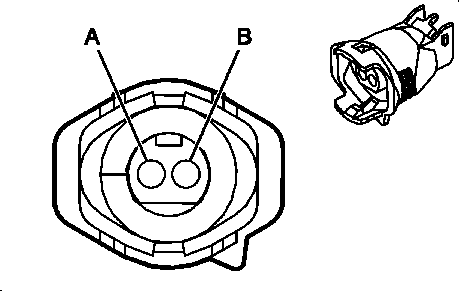

A/C Refrigerant Low Temperature Sensor Connector End View
A/C Refrigerant Low Temperature Sensor Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12092512
- 2- Way Micro-Pack 64 Series F (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BLK |
470 |
Low Reference |
| B |
GRY |
731 |
A/C Refrigerant Low Temperature Sensor Signal |
