Seat Belt Component Views

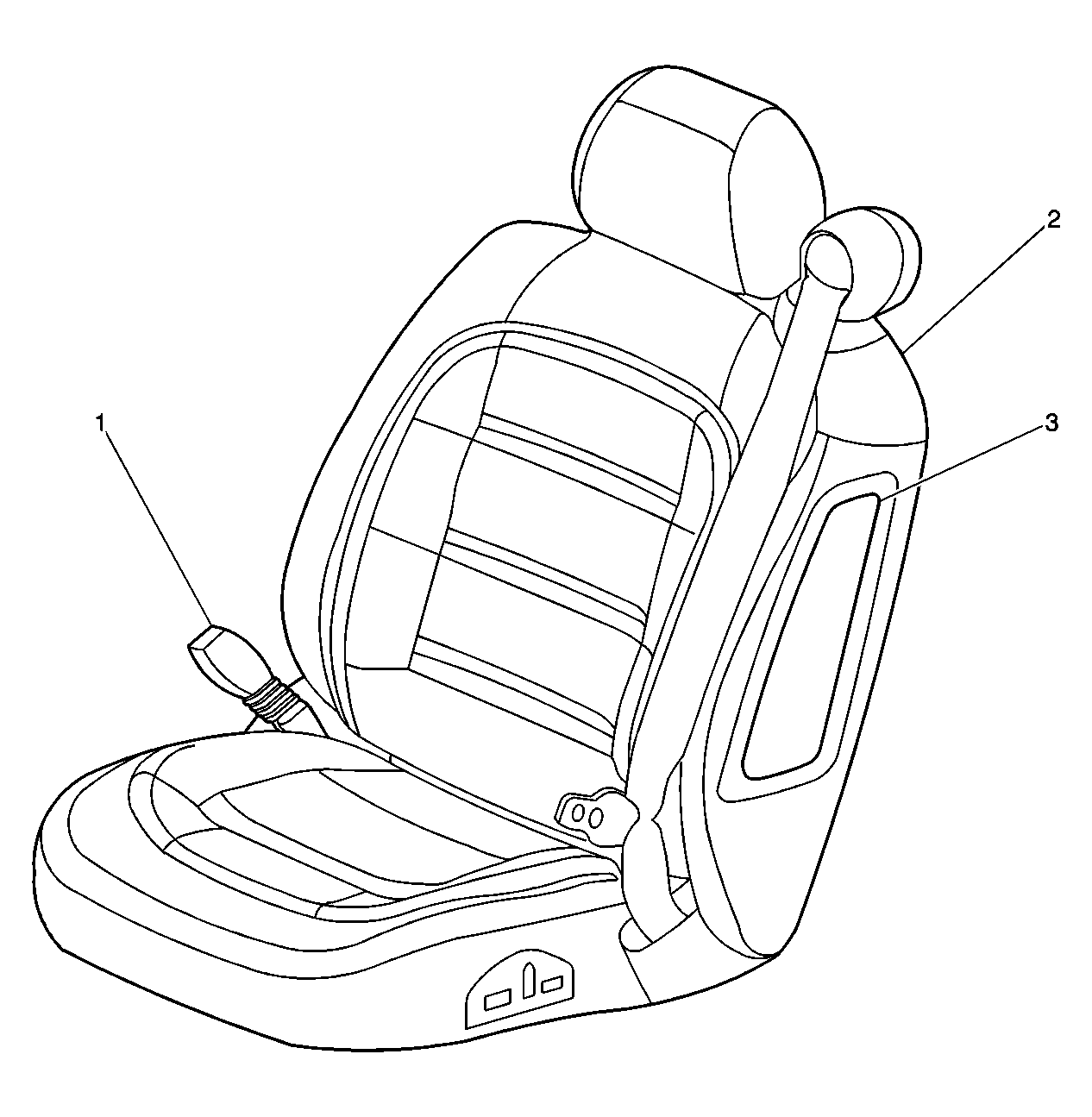

Fig 1: Passenger Compartment, On the Left Front Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - LF with Seat Belt Switch Internal (RF similar)
2	Driver Seat (Passenger similar)
3	Inflatable Restraint Side Impact Module - LF (RF similar)
