Steering Controls Component Views

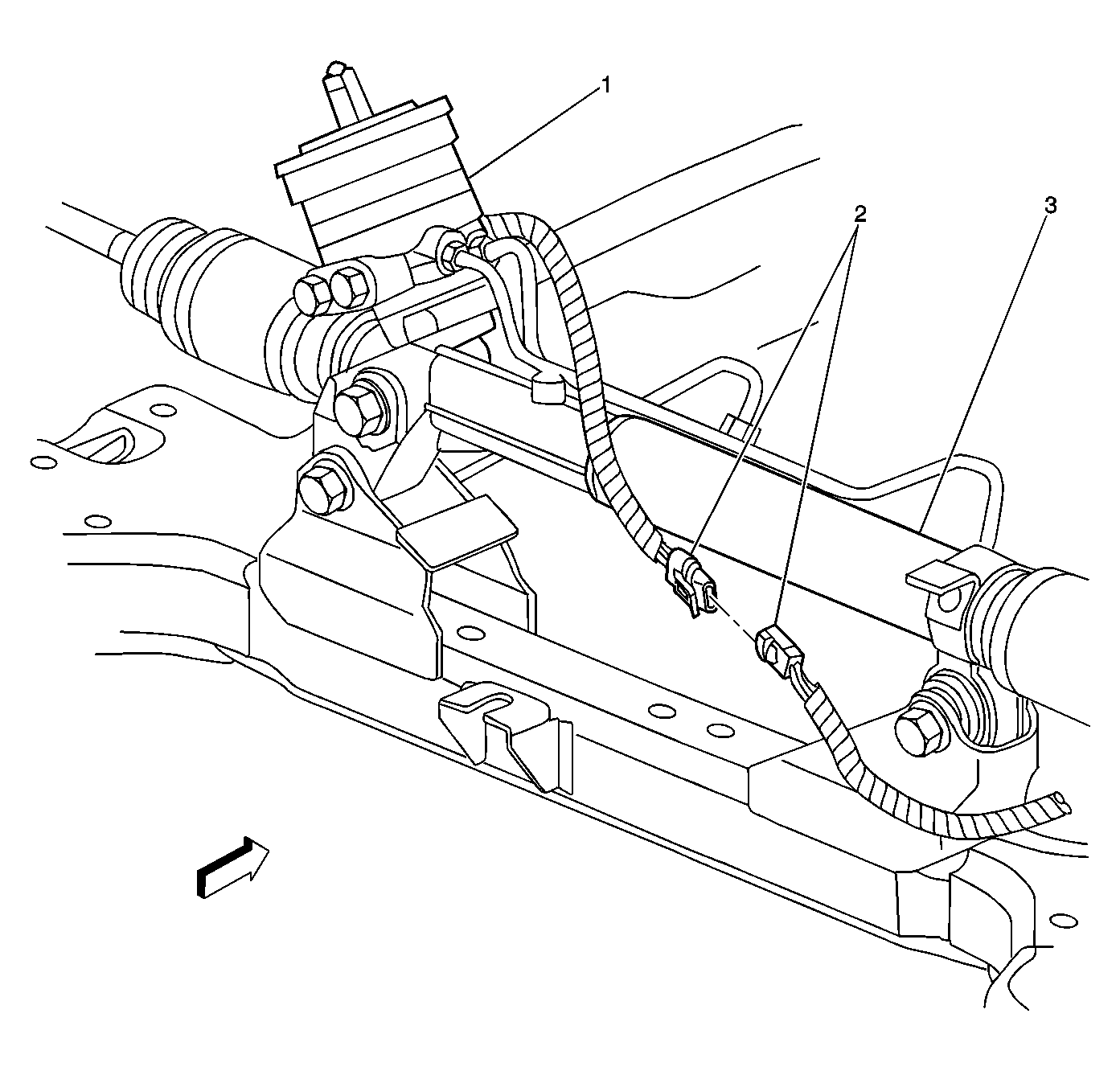

Fig 1: Engine Compartment, Near the Power Steering Gear Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Variable Effort Steering Actuator
2	Variable Effort Steering Actuator Pigtail Connector
3	Power Steering Gear
