Automatic Level Control Suspension Component Views

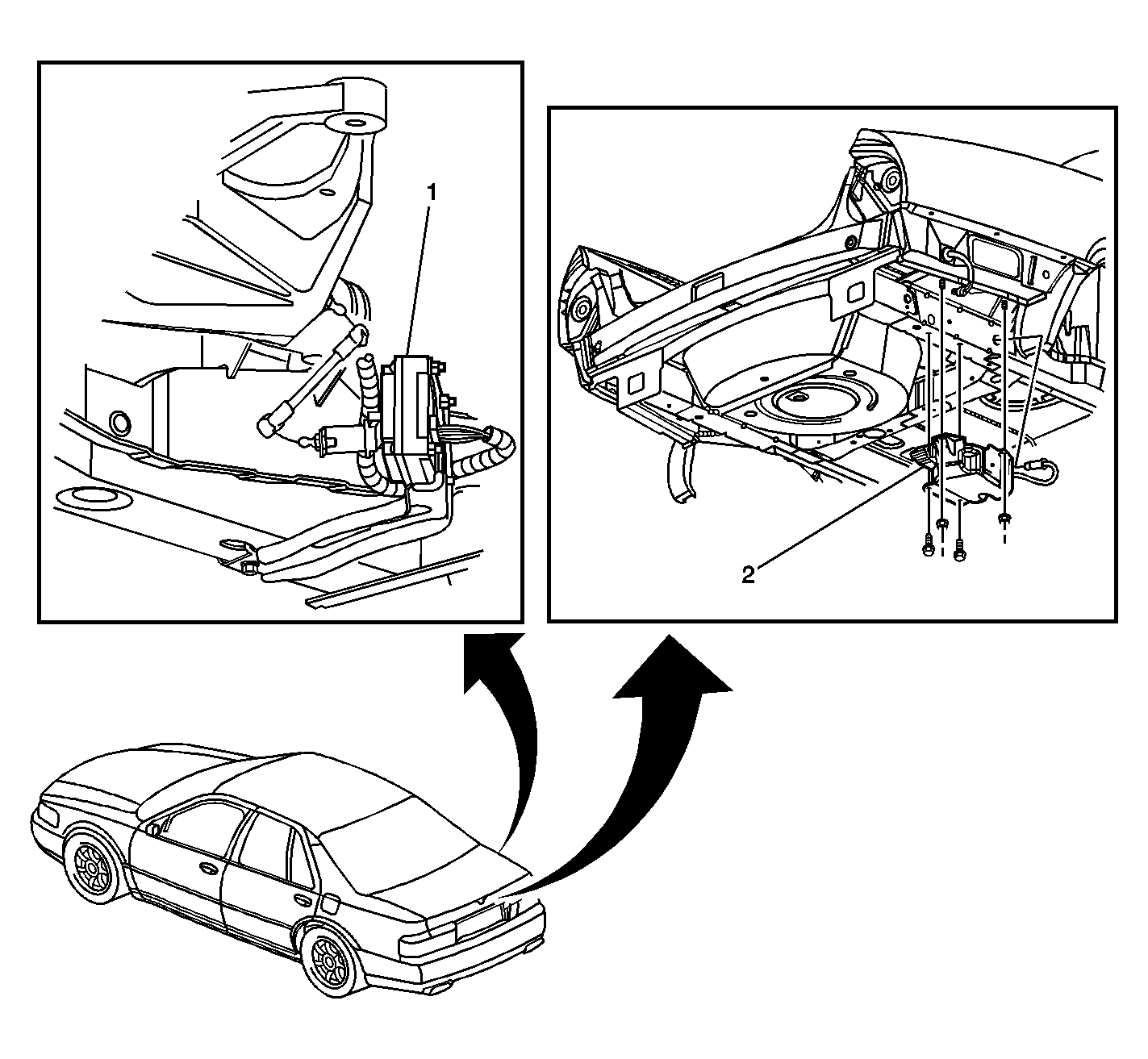

Fig 1: Automatic Level Control (ALC) System Sub-System Component View
GM825757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Level Control (ALC) Module
2 Automatic Level Control (ALC) Compressor
