Body Control System Schematics

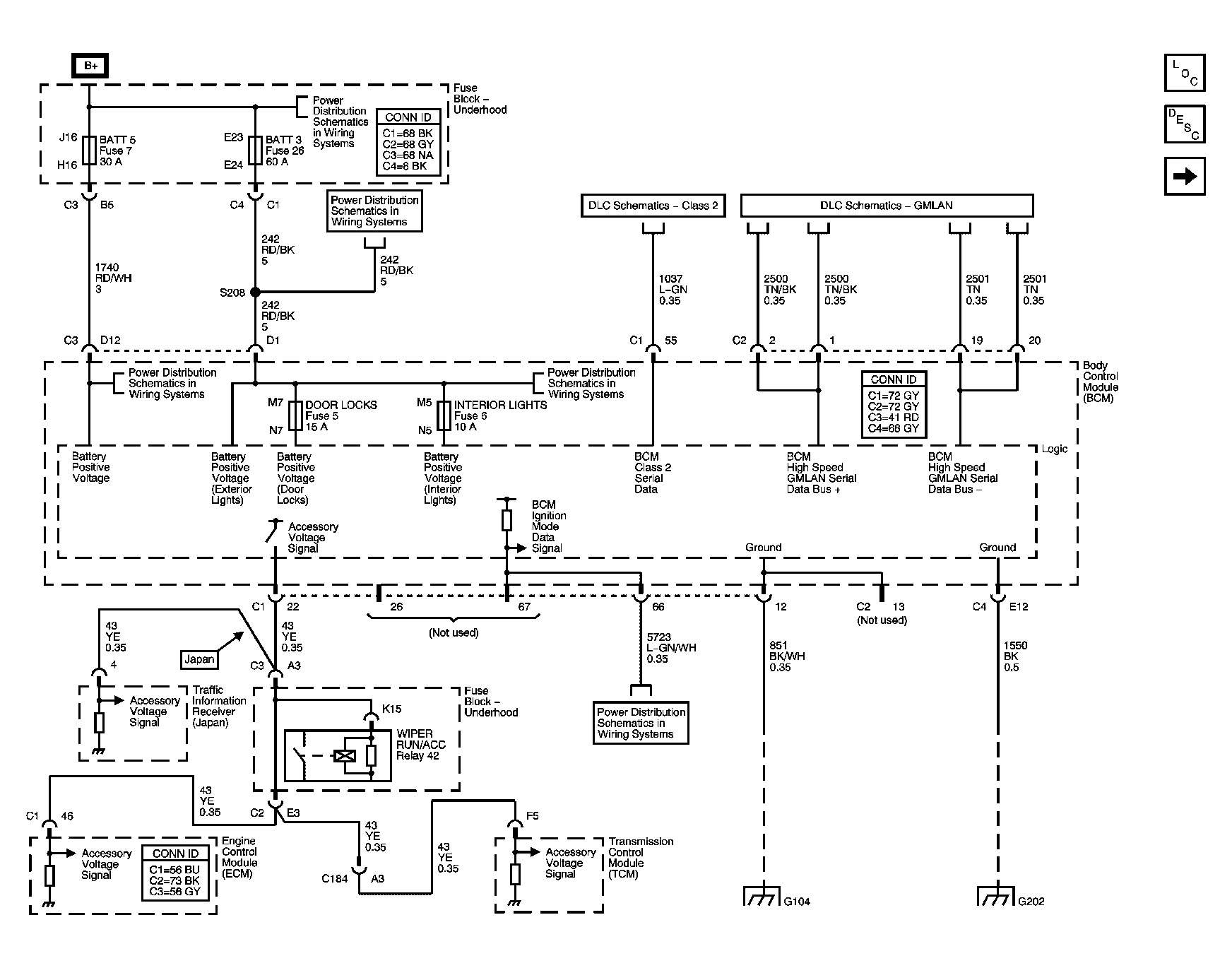

Fig 1: DLC, Ground and Power Schematic
GM1249539Courtesy of GENERAL MOTORS CORP.

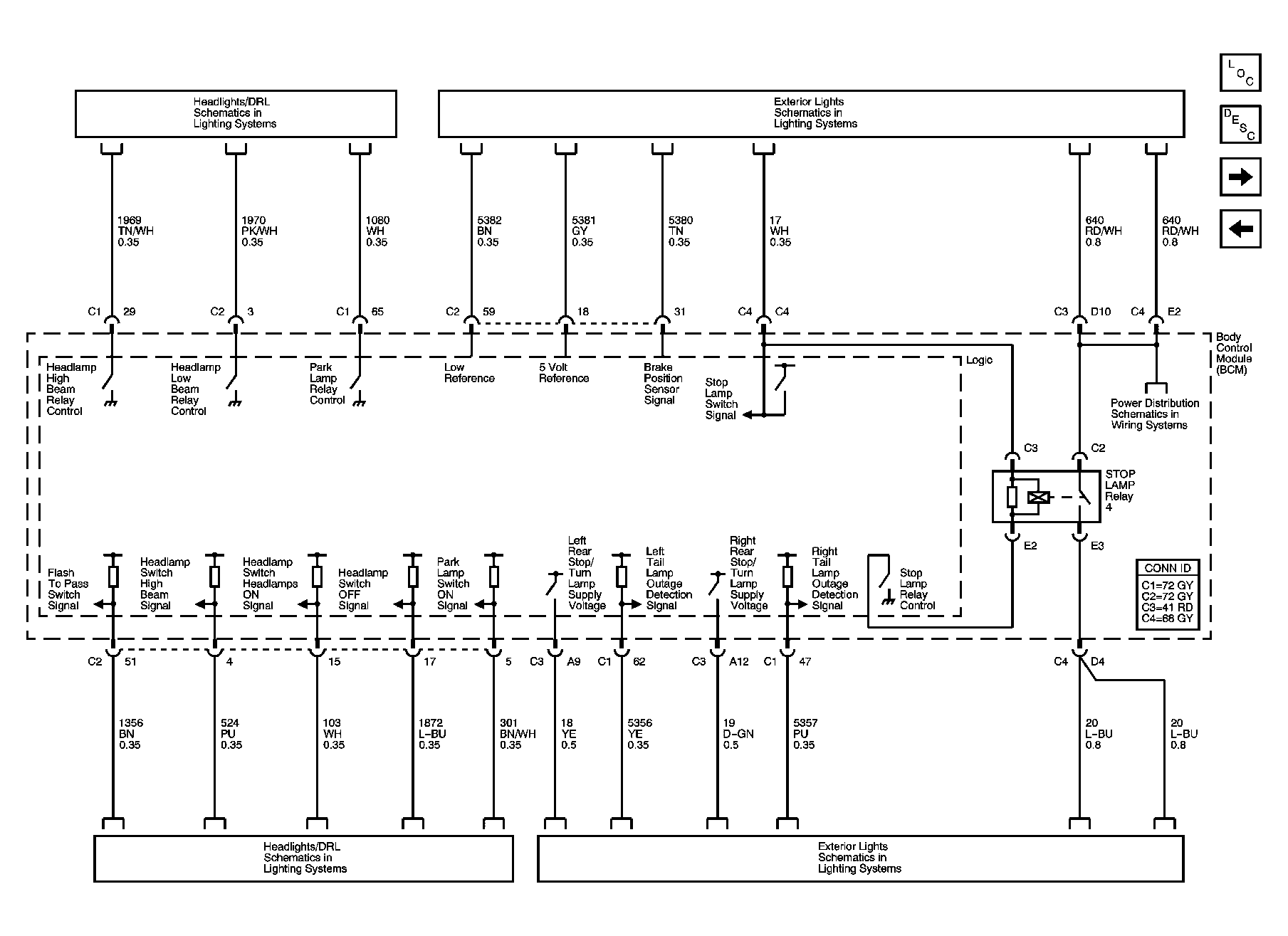

Fig 2: Lighting References Schematic - 1 of 2
GM1388804Courtesy of GENERAL MOTORS CORP.

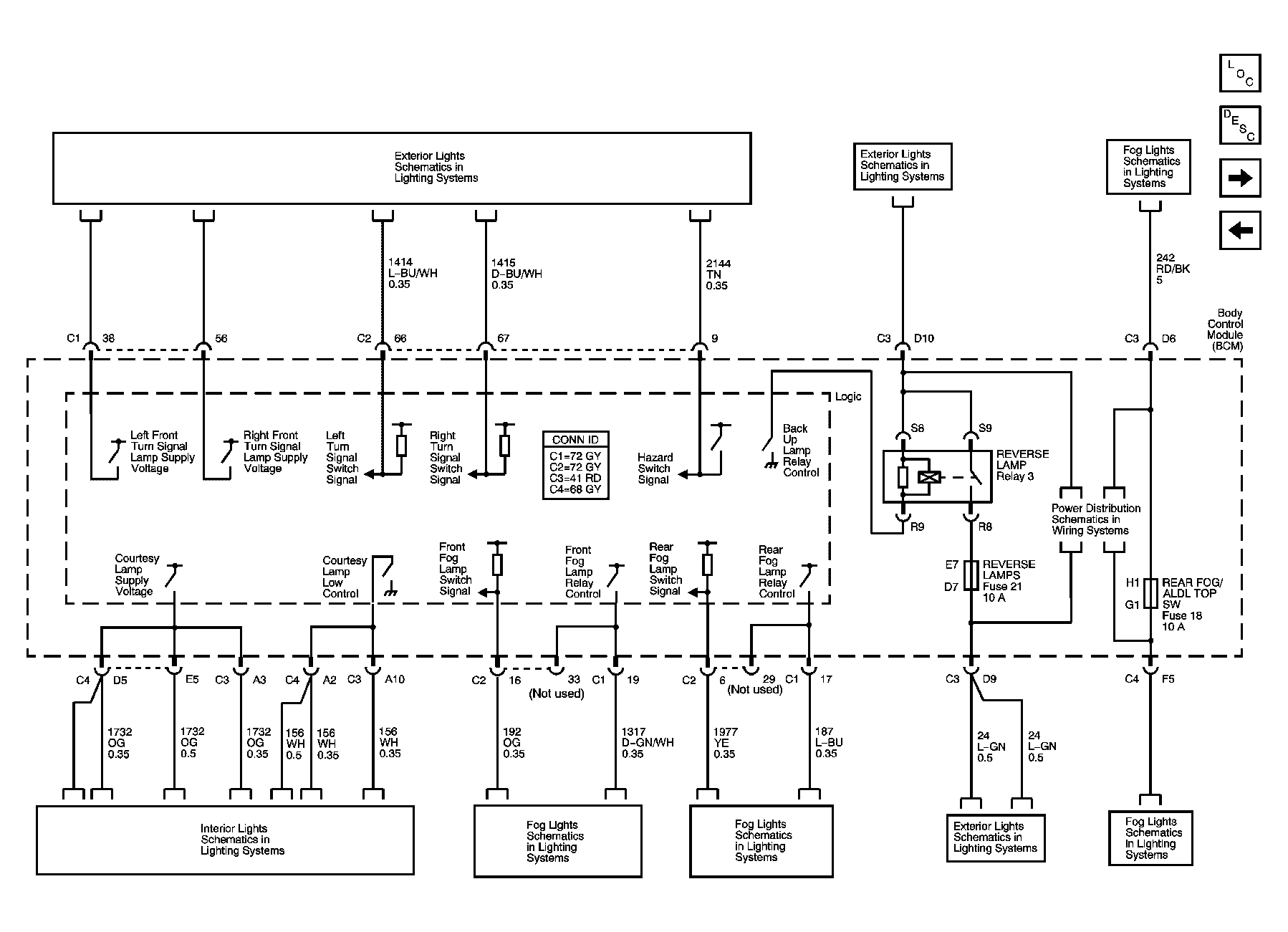

Fig 3: Lighting References Schematic - 2 of 2
GM1388807Courtesy of GENERAL MOTORS CORP.

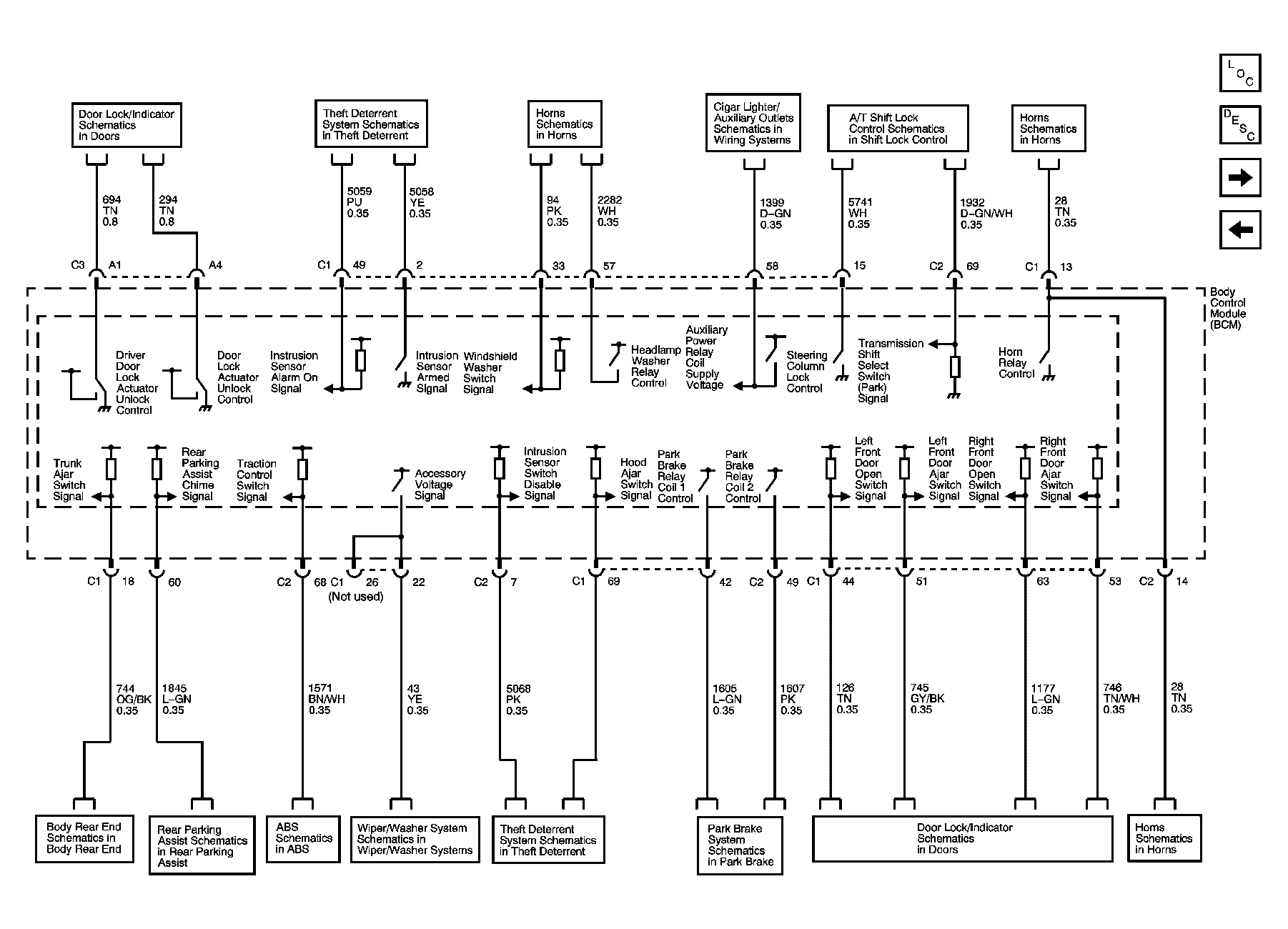

Fig 4: Subsystems References Schematic
GM1388812Courtesy of GENERAL MOTORS CORP.

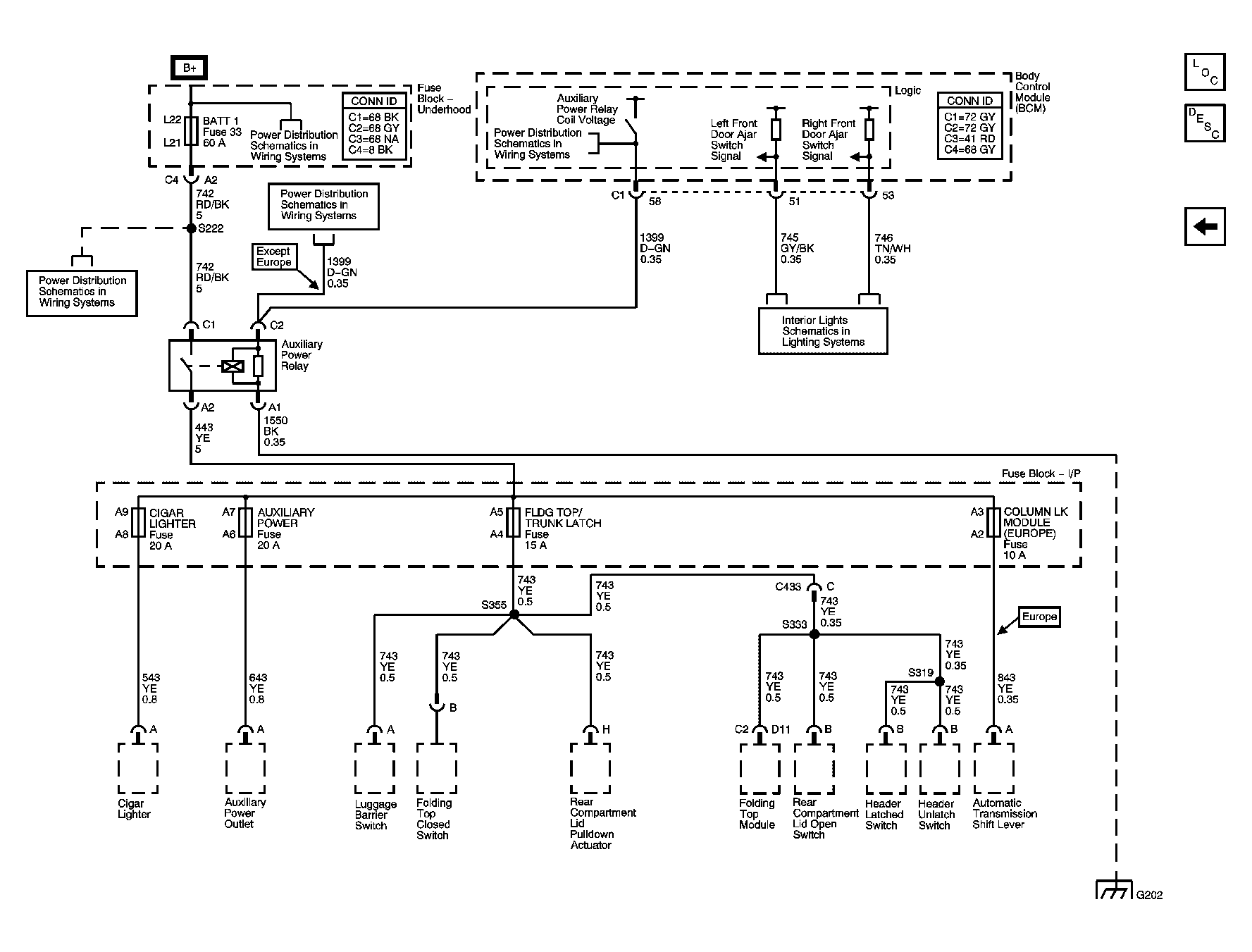

Fig 5: Auxiliary Power Schematic
GM1199351Courtesy of GENERAL MOTORS CORP.
