Installation Procedure

  1. Install the power steering fluid reservoir bracket into the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

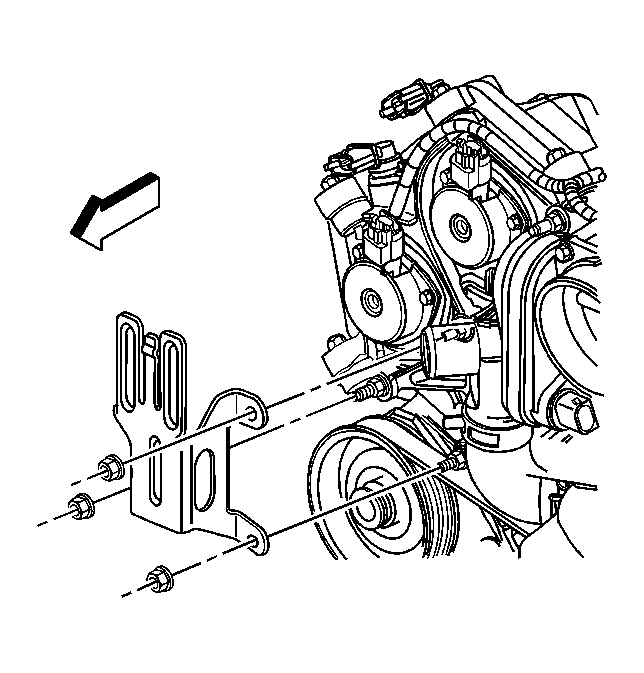

    Fig 1: Power Steering Fluid Reservoir Bracket & Bolts
    GM1334657Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the power steering fluid reservoir bracket.

    Tighten:  Tighten the bolts to 10 N.m (7 lb ft).

  3. Install the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement .
