Automatic Transmission Shift Lock Control Schematics

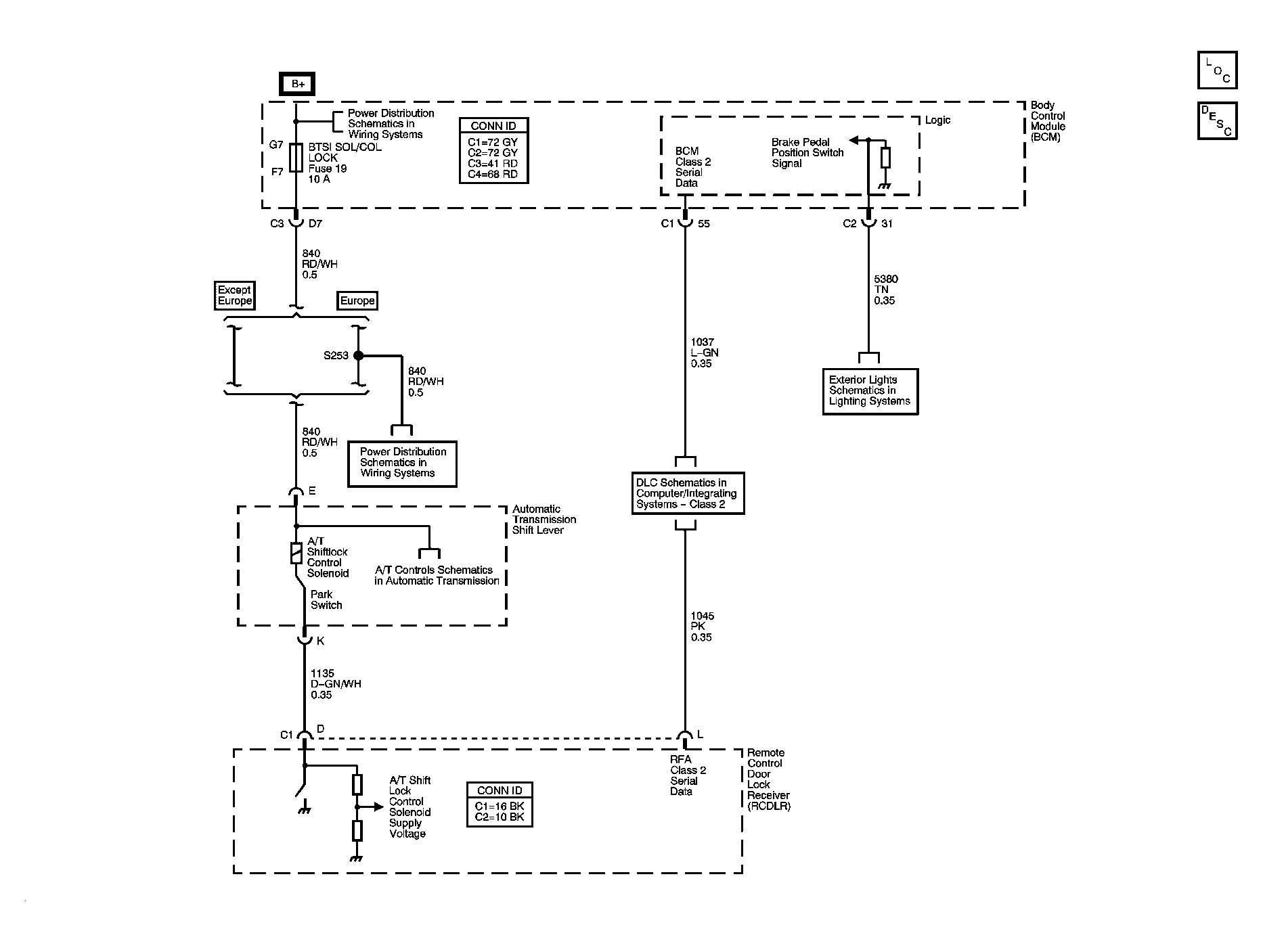

Fig 1: Automatic Transmission Shift Lock Control Schematics
GM1003838Courtesy of GENERAL MOTORS CORP.
