Removal Procedure

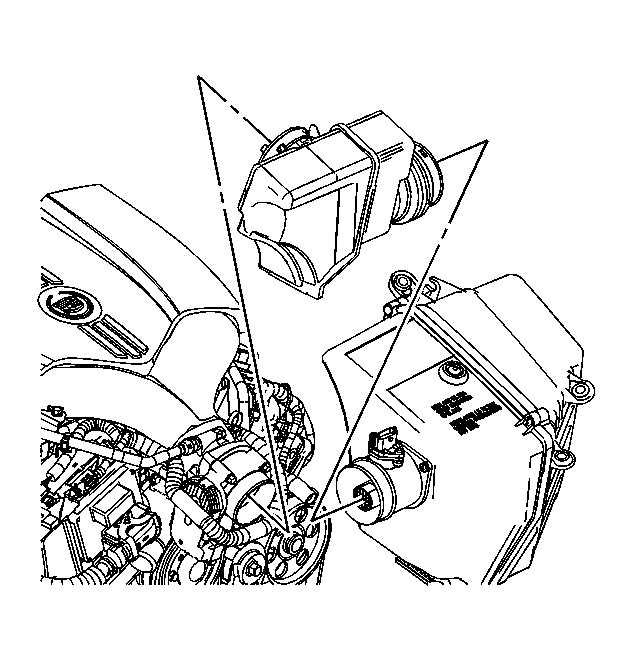

    Fig 1: View Of Air Inlet Duct
    GM1305320Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition OFF.
  2. Remove the positive crankcase ventilation (PCV) hose from the air cleaner duct resonator.
  3. Loosen the air cleaner duct clamps.
  4. Remove the air cleaner duct.
